Radiator Outlet Hose Replacement (LE5, L61)

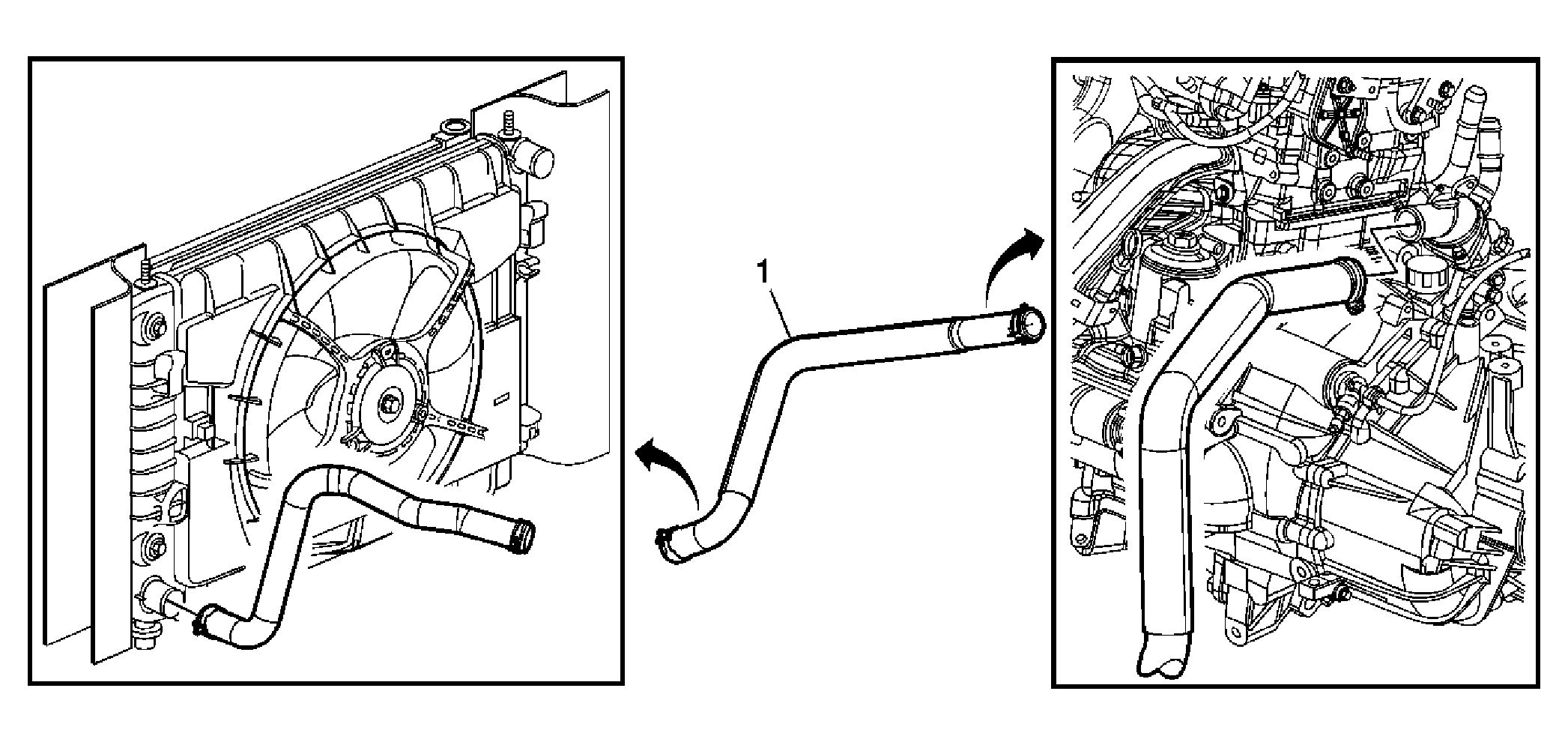

Fig 1: View Of Radiator Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill-LE5, L61) or Cooling System Draining and Filling (Static Fill-LNF) or Cooling System Draining and Filling (GE 47716 Fill) .
1	Radiator Outlet Hose Tip: Use J 38185 Hose Clamp Pliers to reposition the hose clamps.

Callout

Component Name

Preliminary Procedure

Radiator Outlet Hose
Tip: Use J 38185 Hose Clamp Pliers to reposition the hose clamps.
