Radiator Air Upper Baffle and Deflector Replacement

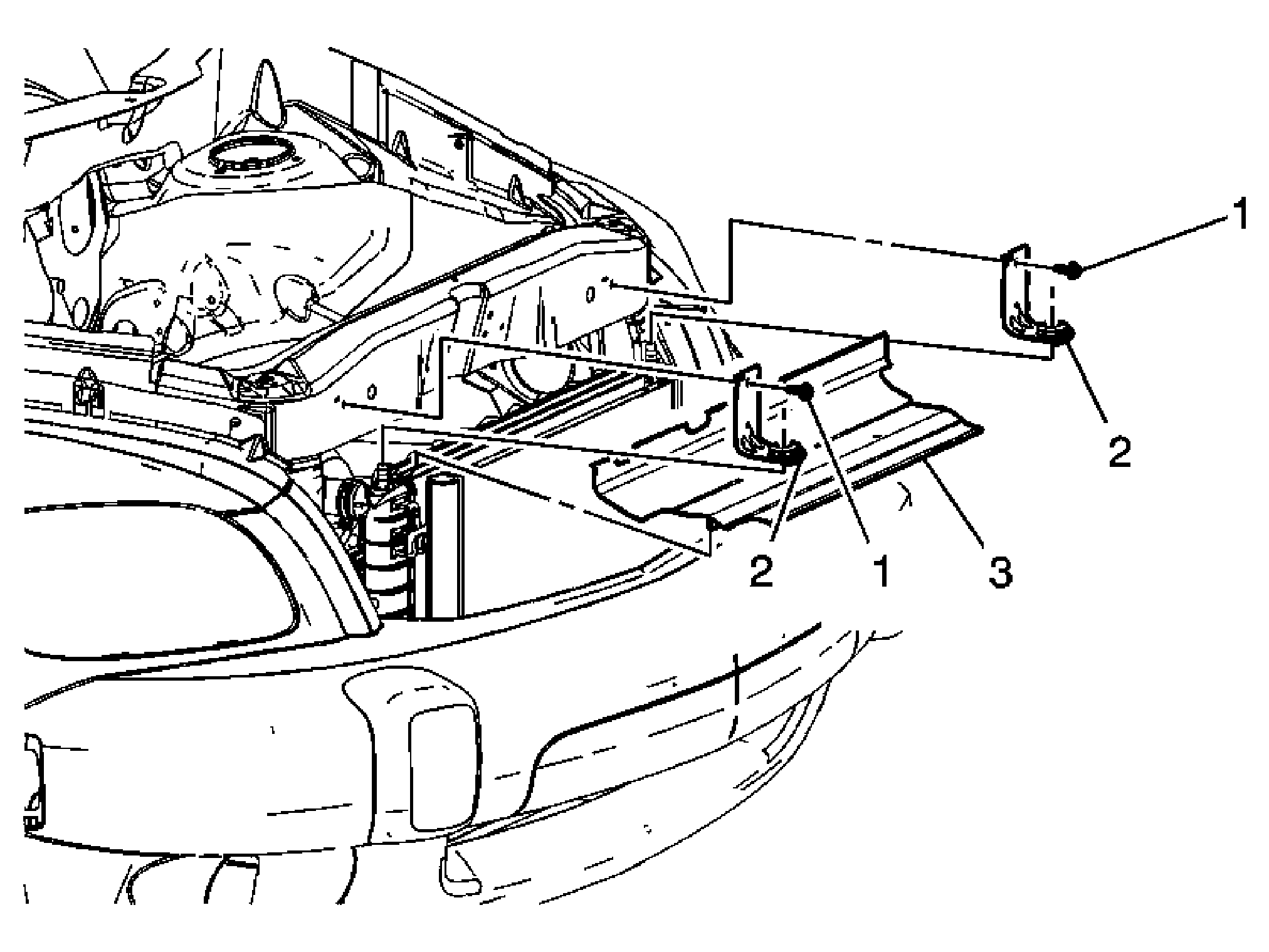

Fig 1: Identifying Radiator Upper Air Baffle & Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Bracket Assembly - Upper Bolt CAUTION: Refer to Fastener Caution . Tighten:  9 N.m (80 lb in)
2	Radiator - Upper Bracket Assembly
3	Radiator Air Baffle and Deflector - Upper Procedure:  Remove any associated wiring harness from air baffle and deflector.
