Ground Distribution Schematics

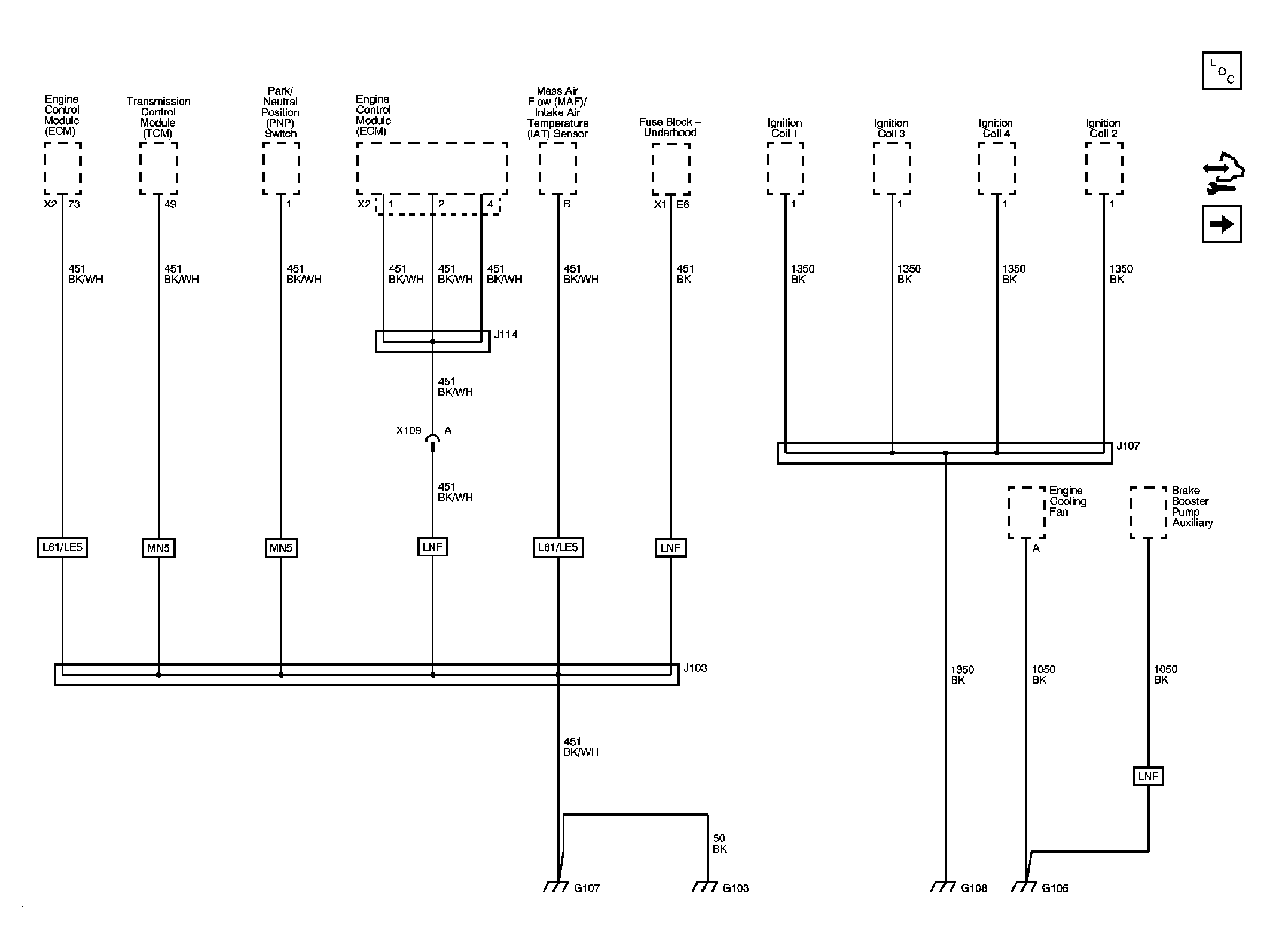

Fig 1: G103, G105, G107 and G108 Circuit Schematic
GM2085396Courtesy of GENERAL MOTORS CORP.

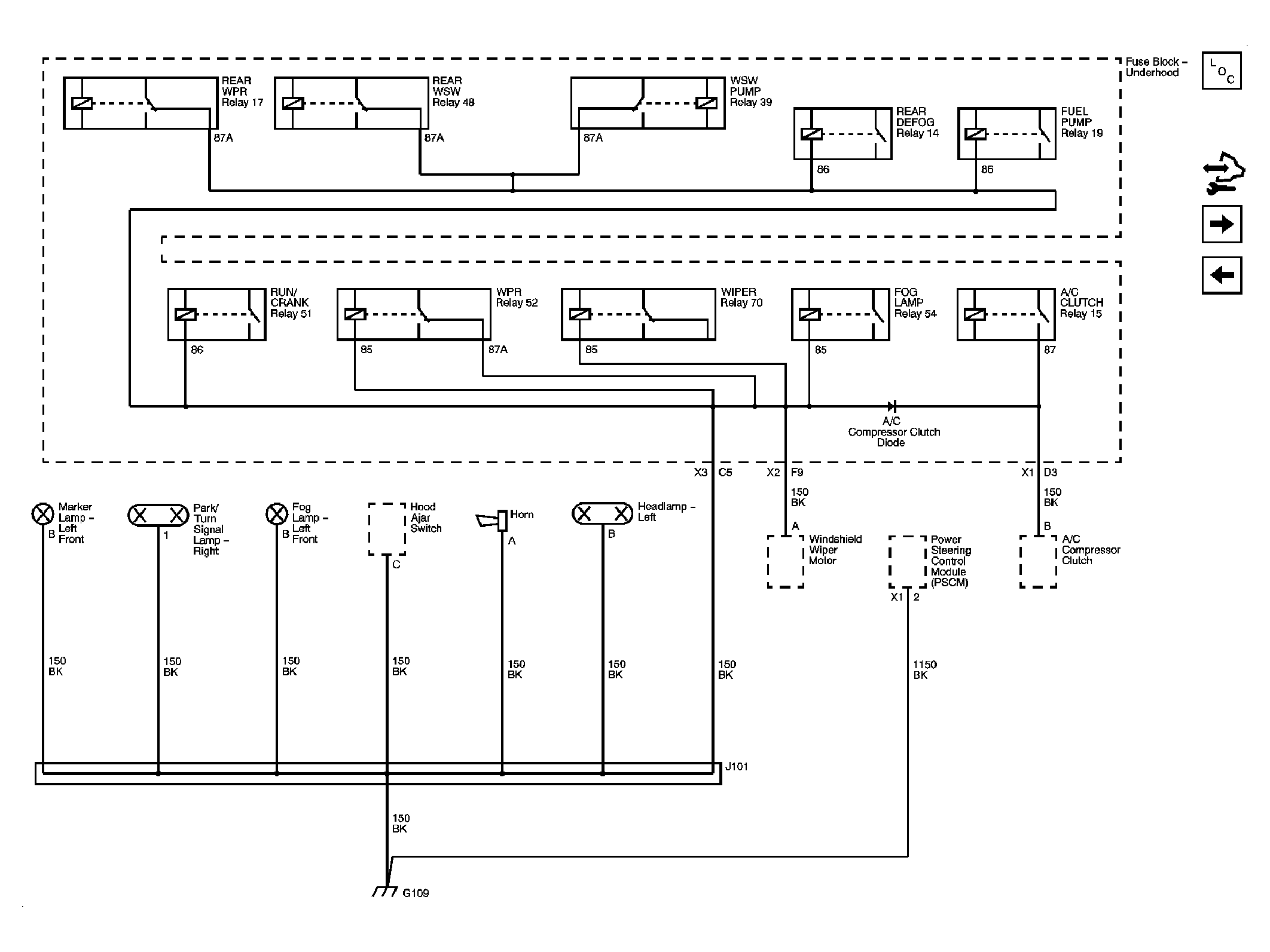

Fig 2: G109 Circuit Schematic
GM2085398Courtesy of GENERAL MOTORS CORP.
Fig 3: G111 Circuit Schematic
GM2085400Courtesy of GENERAL MOTORS CORP.

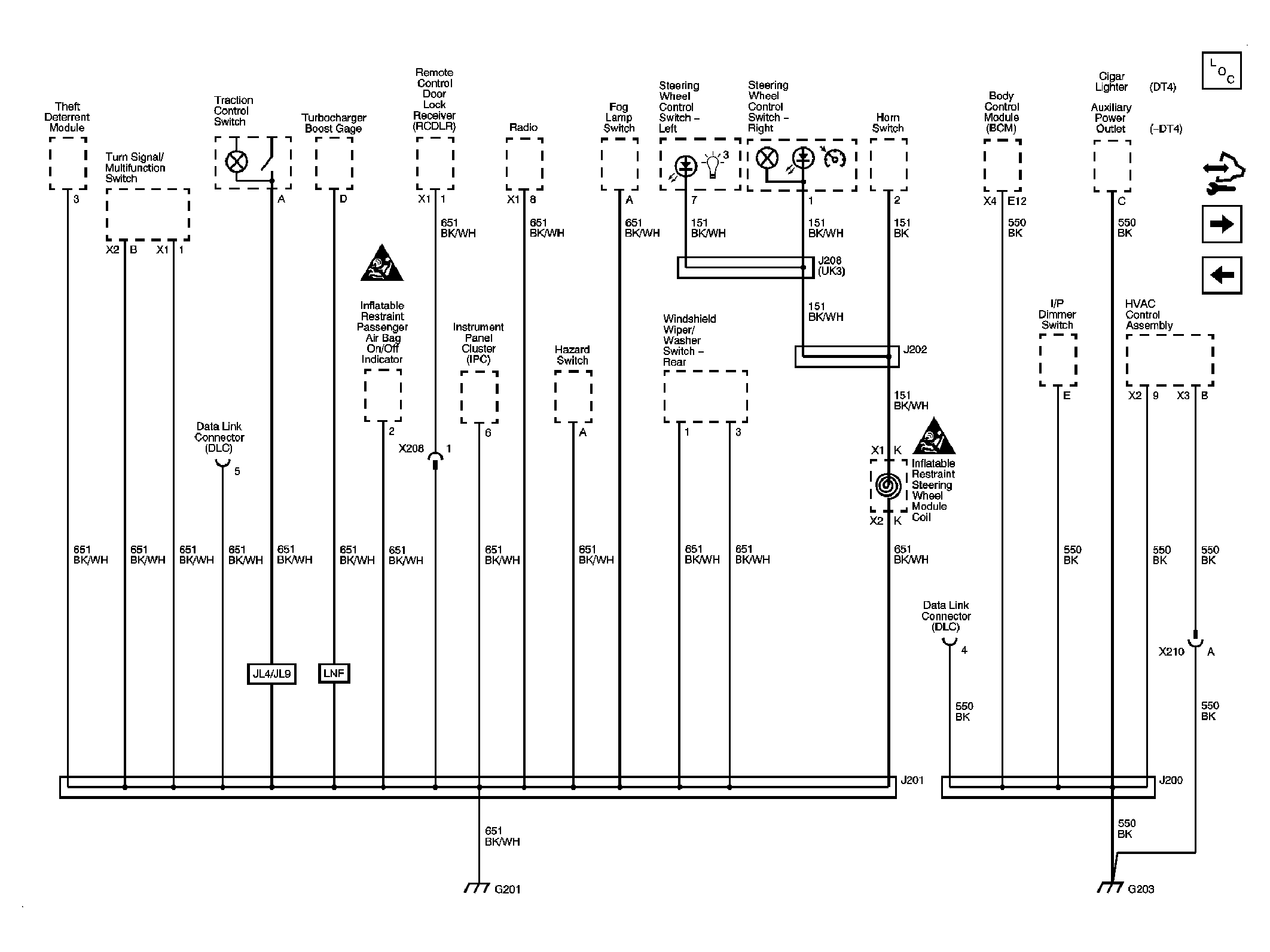

Fig 4: G201 & G203 Circuit Schematic
GM2085401Courtesy of GENERAL MOTORS CORP.

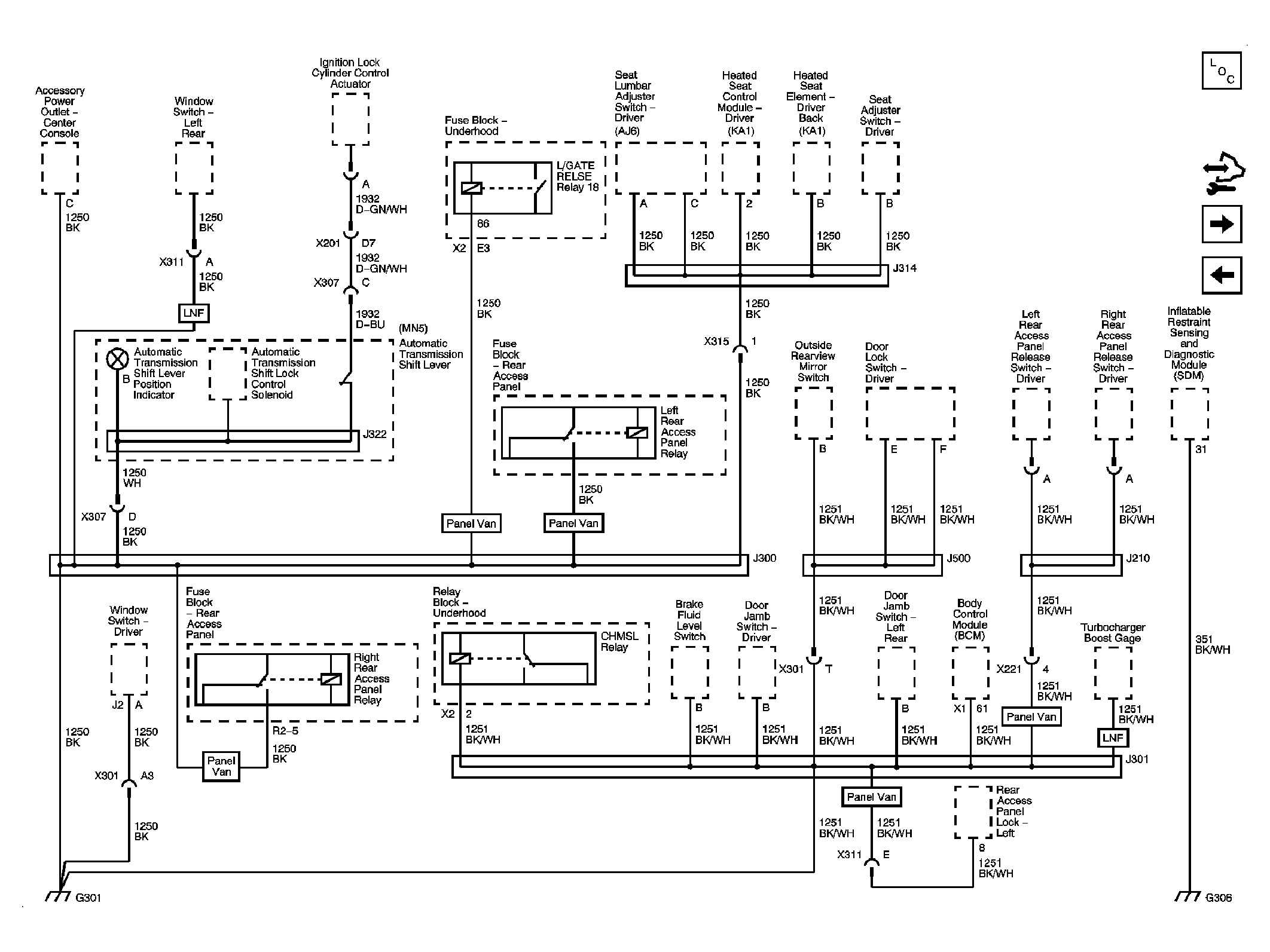

Fig 5: G301 & G306 Circuit Schematic
GM2085405Courtesy of GENERAL MOTORS CORP.

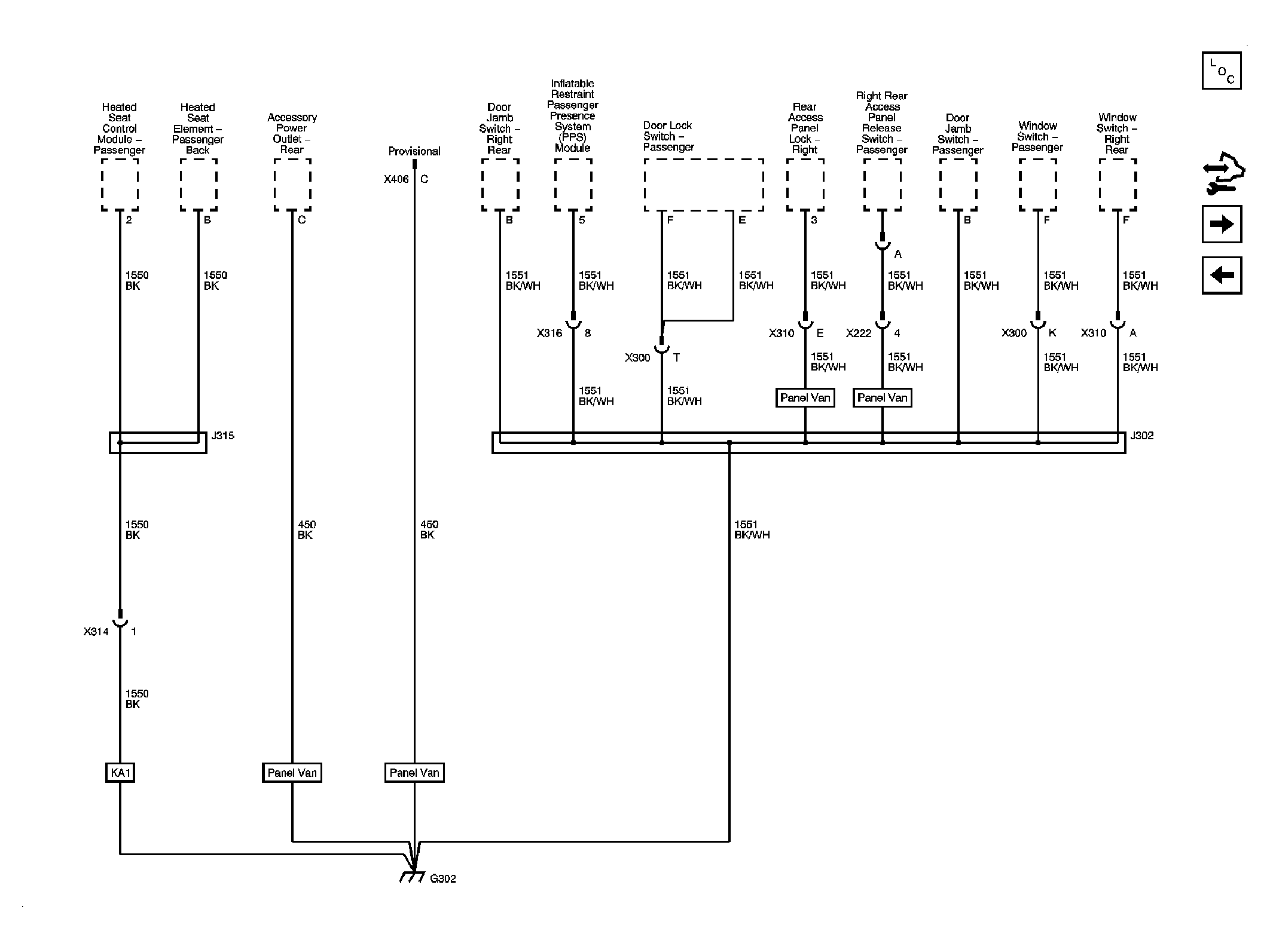

Fig 6: G302 Circuit Schematic
GM2085406Courtesy of GENERAL MOTORS CORP.

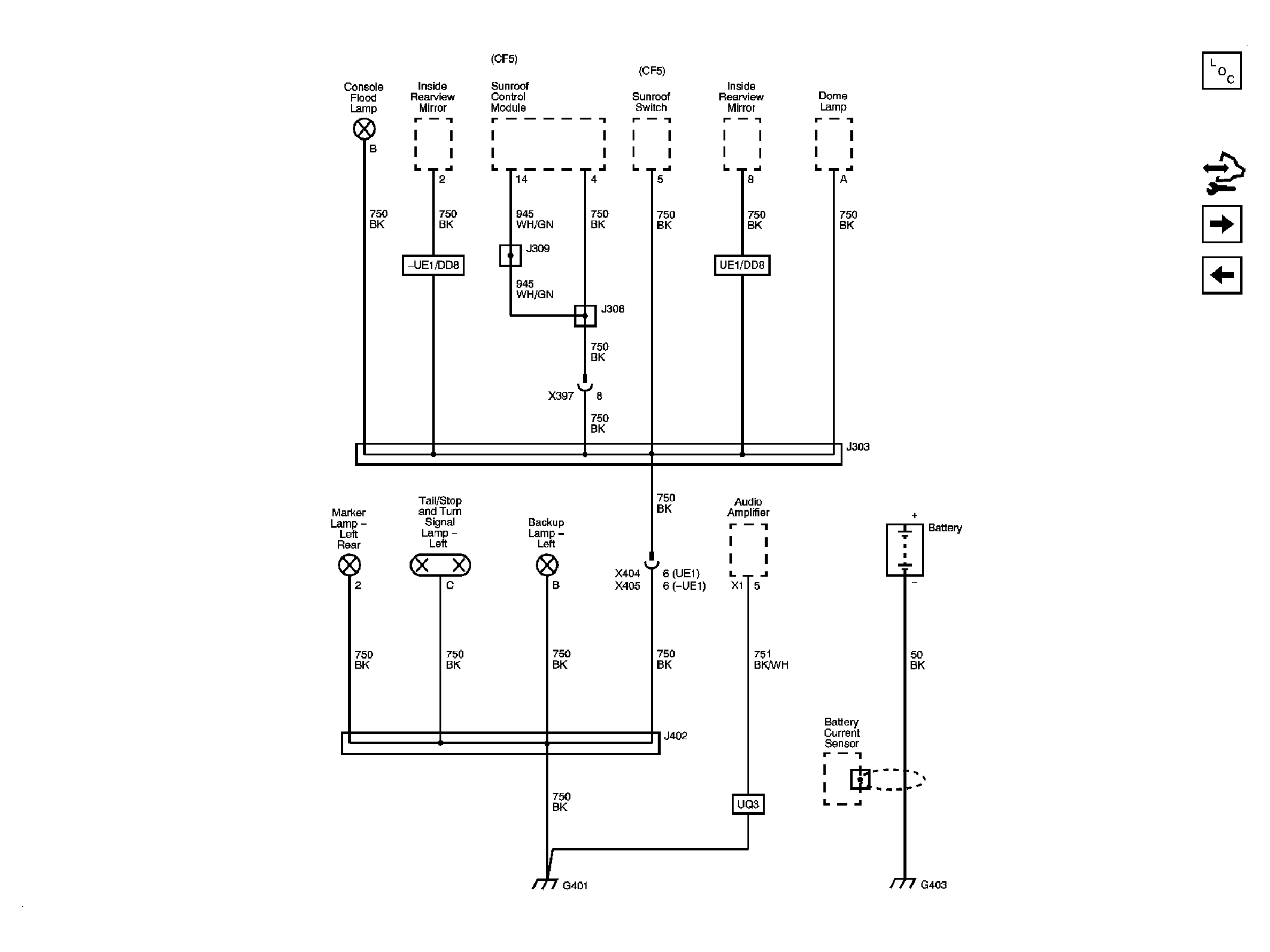

Fig 7: G401 & G403 Circuit Schematic
GM2085408Courtesy of GENERAL MOTORS CORP.

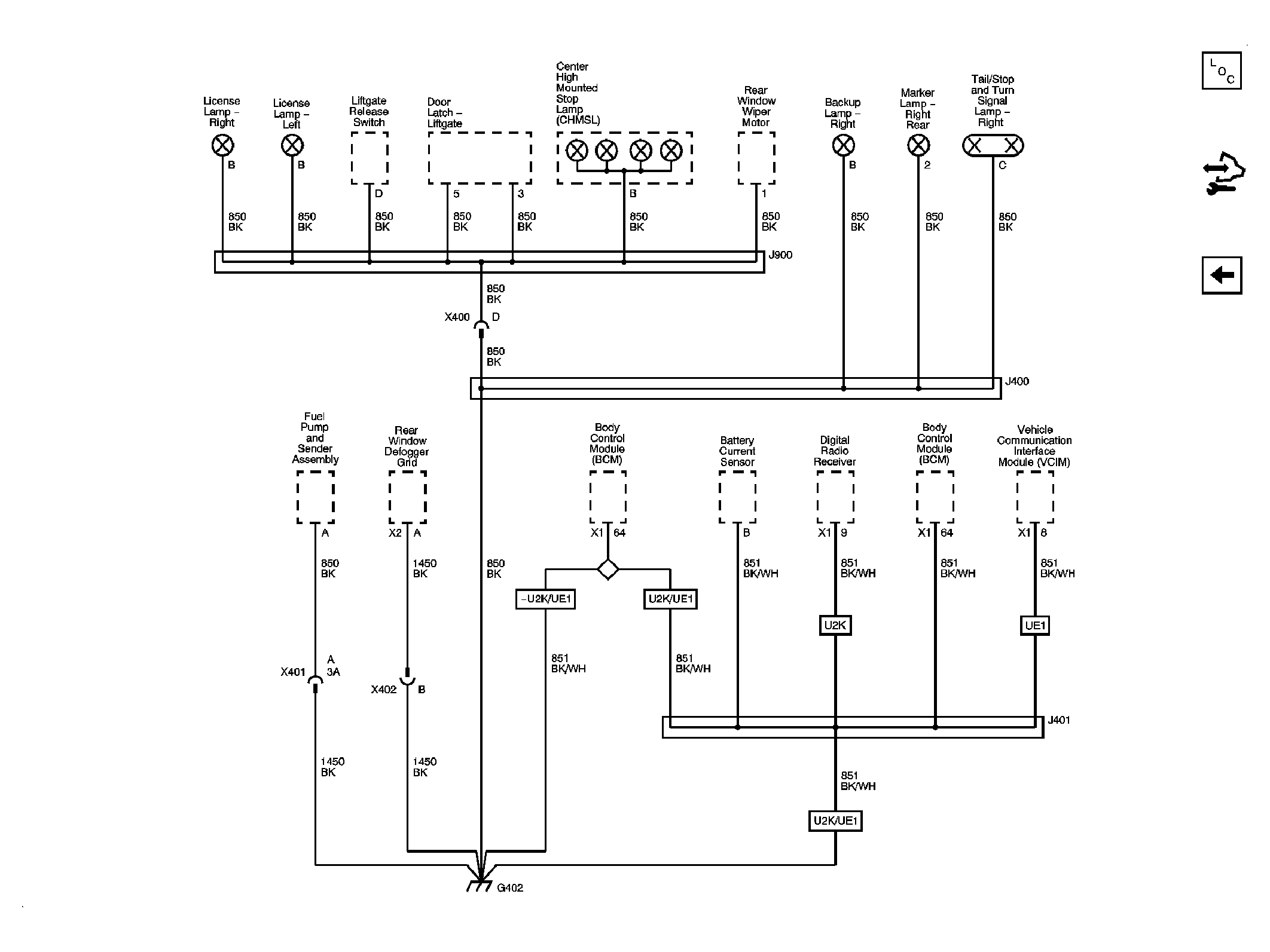

Fig 8: G402 Circuit Schematic
GM2085410Courtesy of GENERAL MOTORS CORP.
