Instrument Cluster Schematics

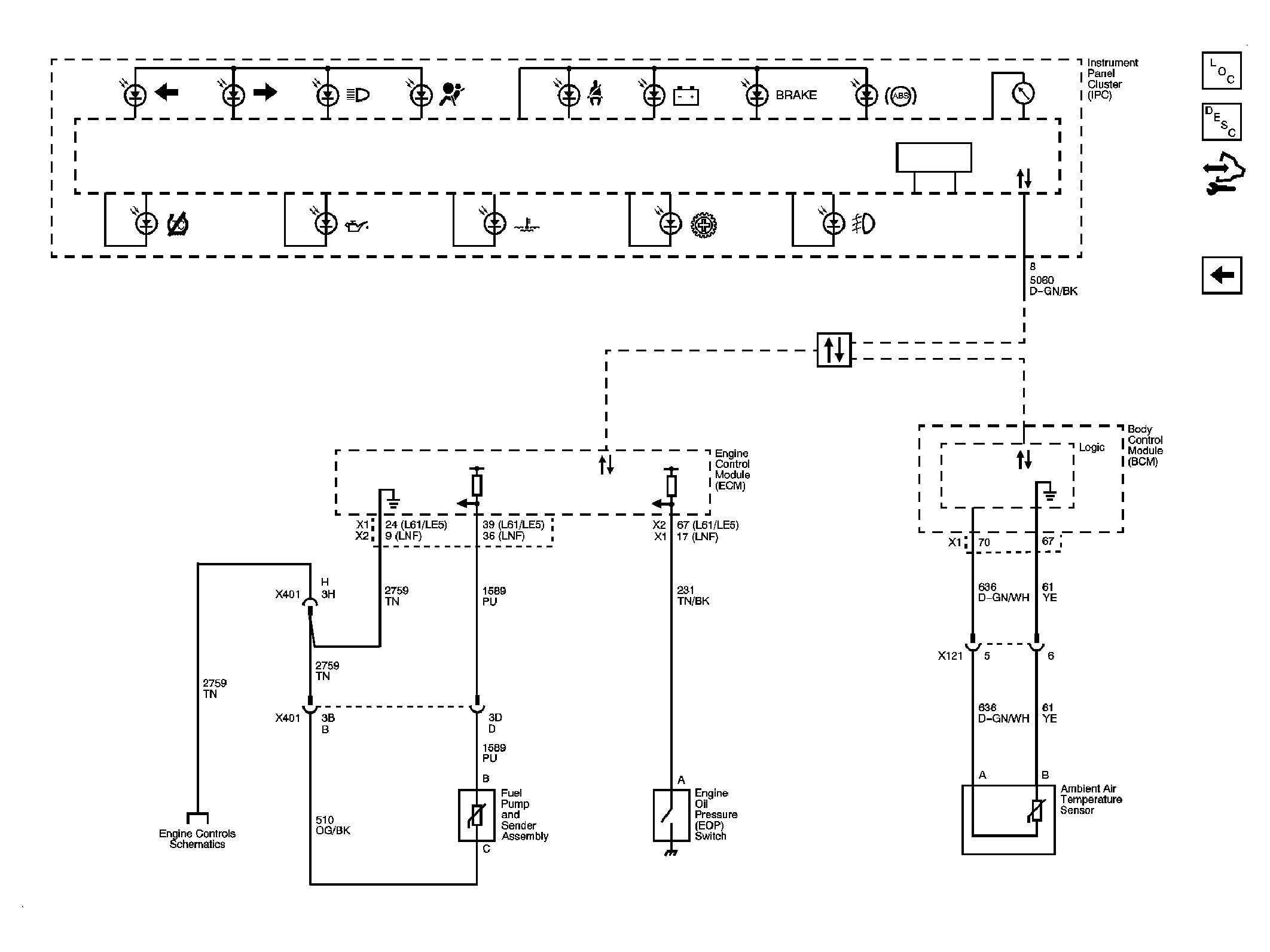

Fig 1: Ambient Air Temperature Sensor, EOP Sensor, Fuel Level Sensor & Indicators Circuit Schematic
GM2085349Courtesy of GENERAL MOTORS CORP.

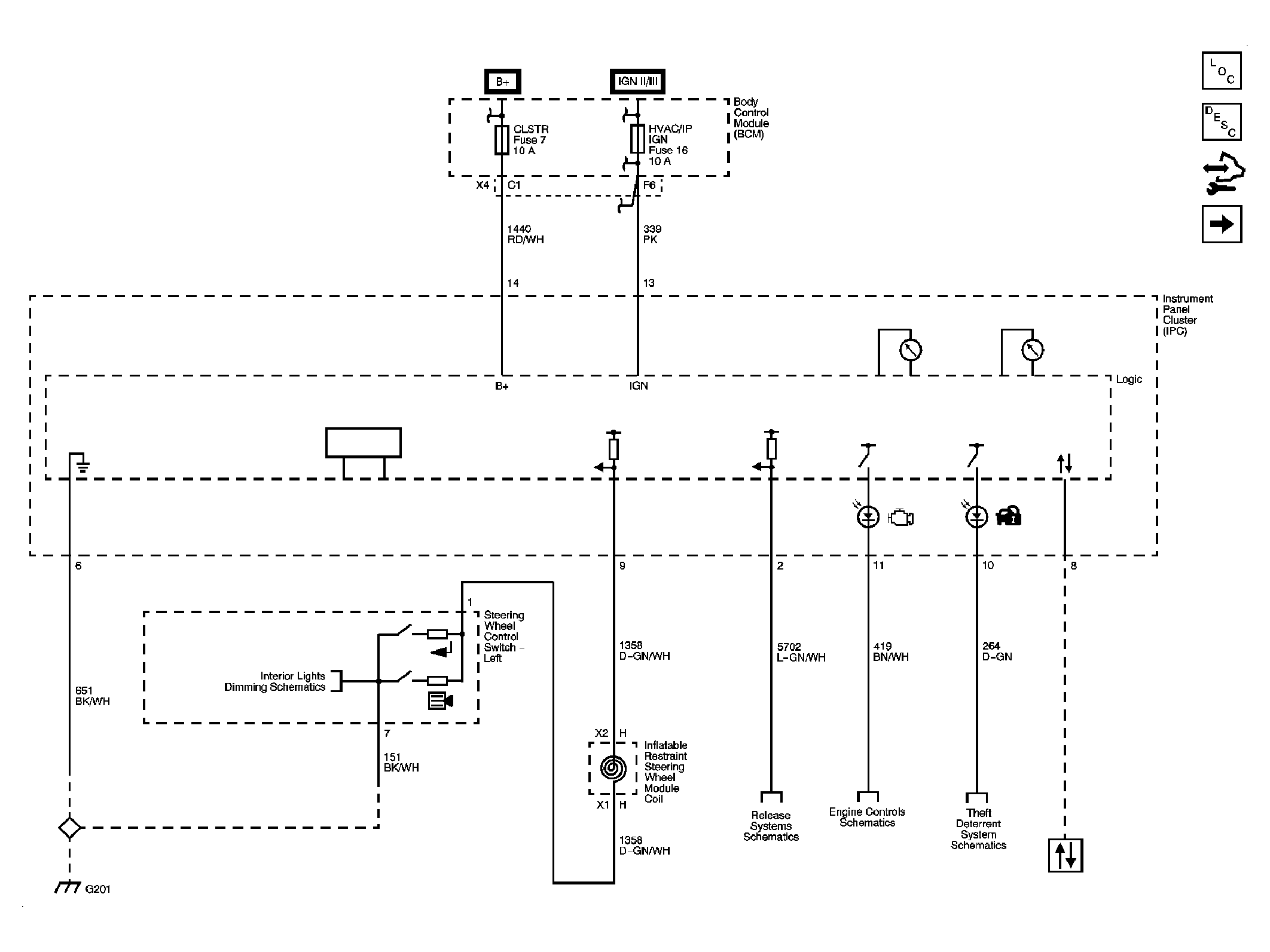

Fig 2: Power, Ground, DIC, Illumination, MIL & Security Indicator Circuit Schematic
GM2085347Courtesy of GENERAL MOTORS CORP.
