Supercharger Boost Air Pressure Indicator Replacement

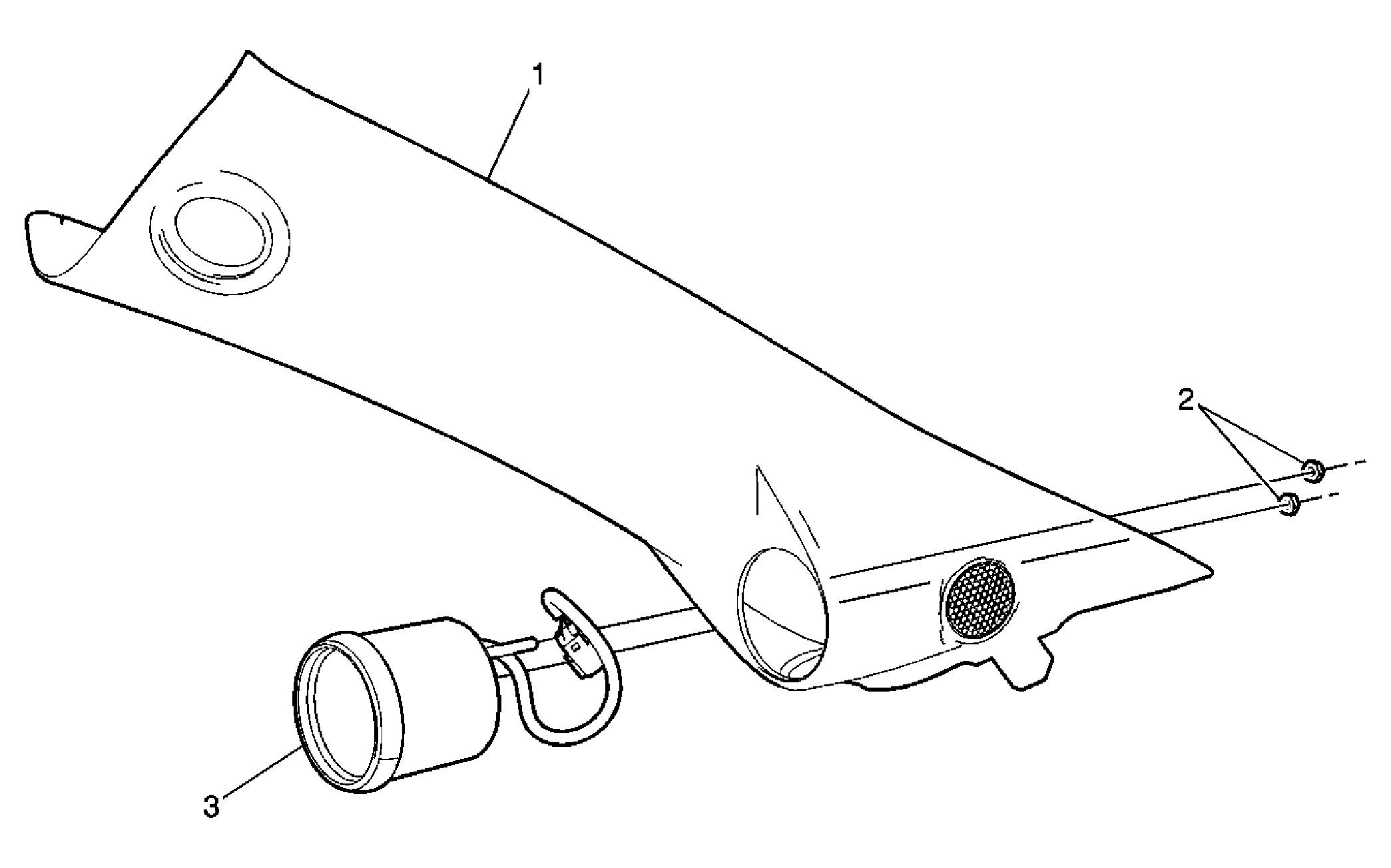

Fig 1: Identifying Supercharger Boost Air Pressure Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Pillar Garnish Molding Refer to Windshield Garnish Molding Replacement .
2	Nut (Qty: 2) Tip:  Tighten nut to secure.
3	Supercharger Boost Air Pressure Indicator Assembly Procedure:  Disconnect the electrical connector.
