Antilock Brake System Schematics

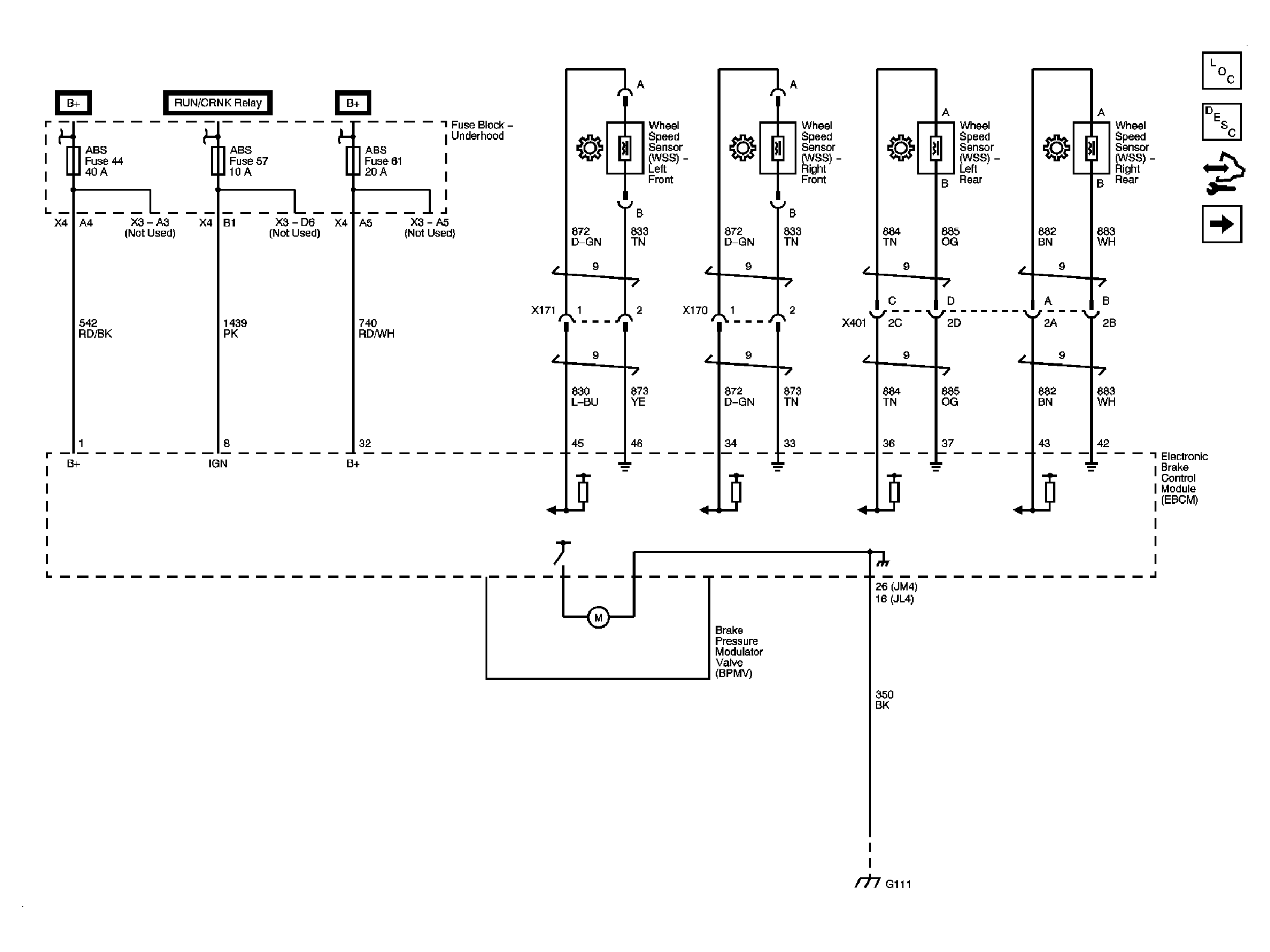

Fig 1: Power, Ground & WSS Circuit Schematic

GM2085161

Courtesy of GENERAL MOTORS CORP.

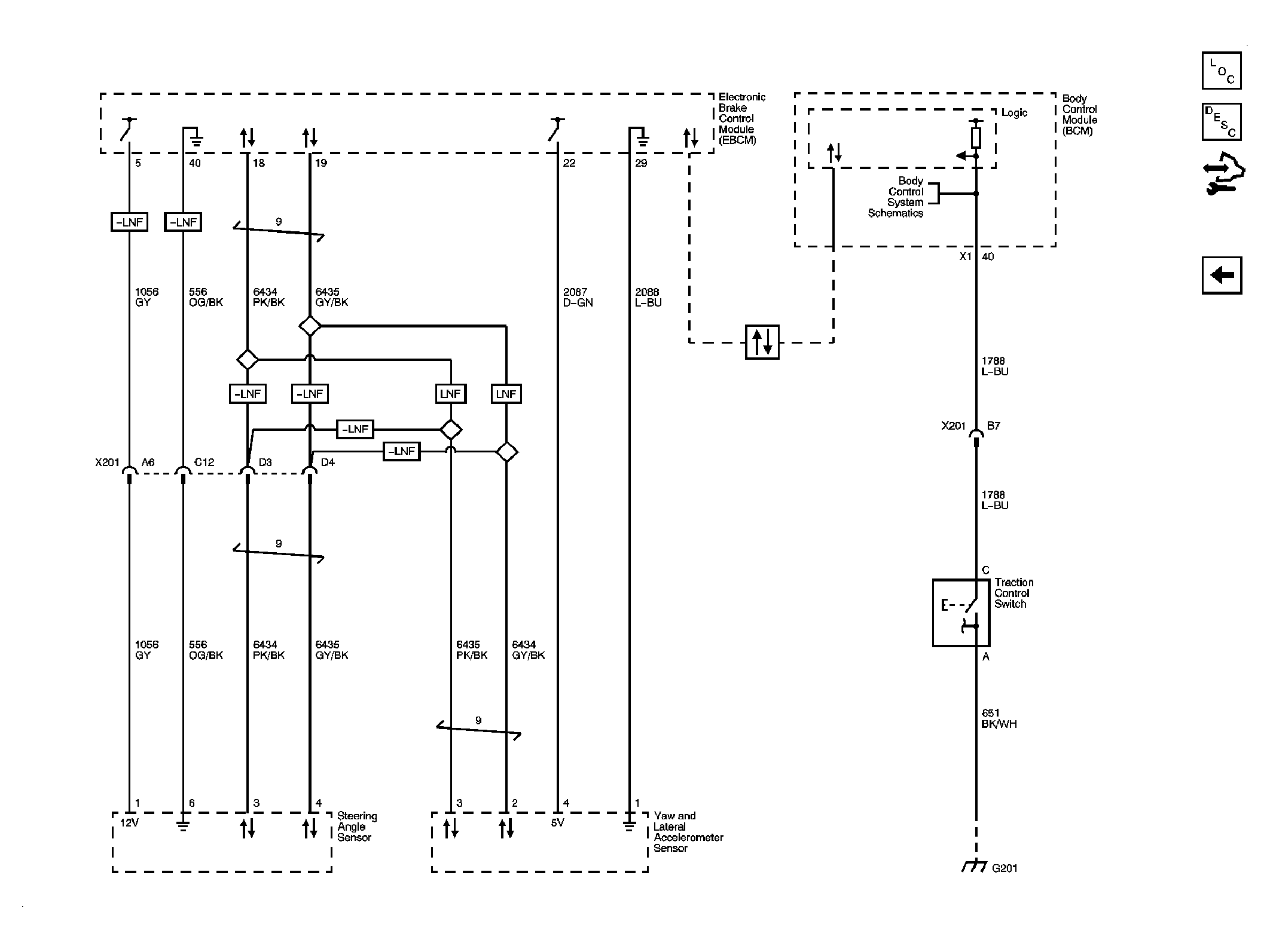

Fig 2: Stability Control Circuit Schematic (JL4)

GM2085164

Courtesy of GENERAL MOTORS CORP.
