Heated/Cooled Seat Schematics

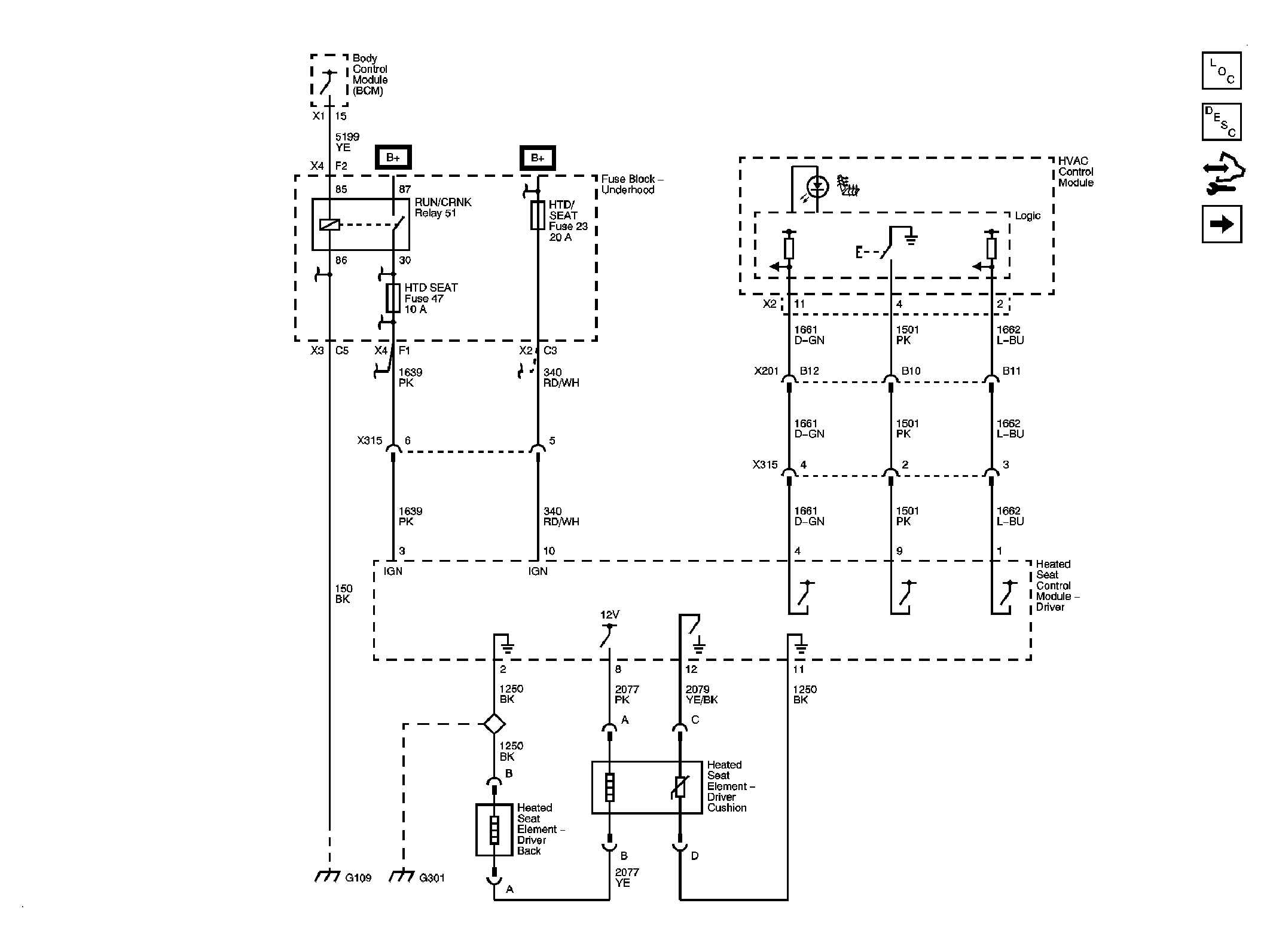

Fig 1: Heated Seat Circuit Schematic - Driver

GM2085417

Courtesy of GENERAL MOTORS CORP.

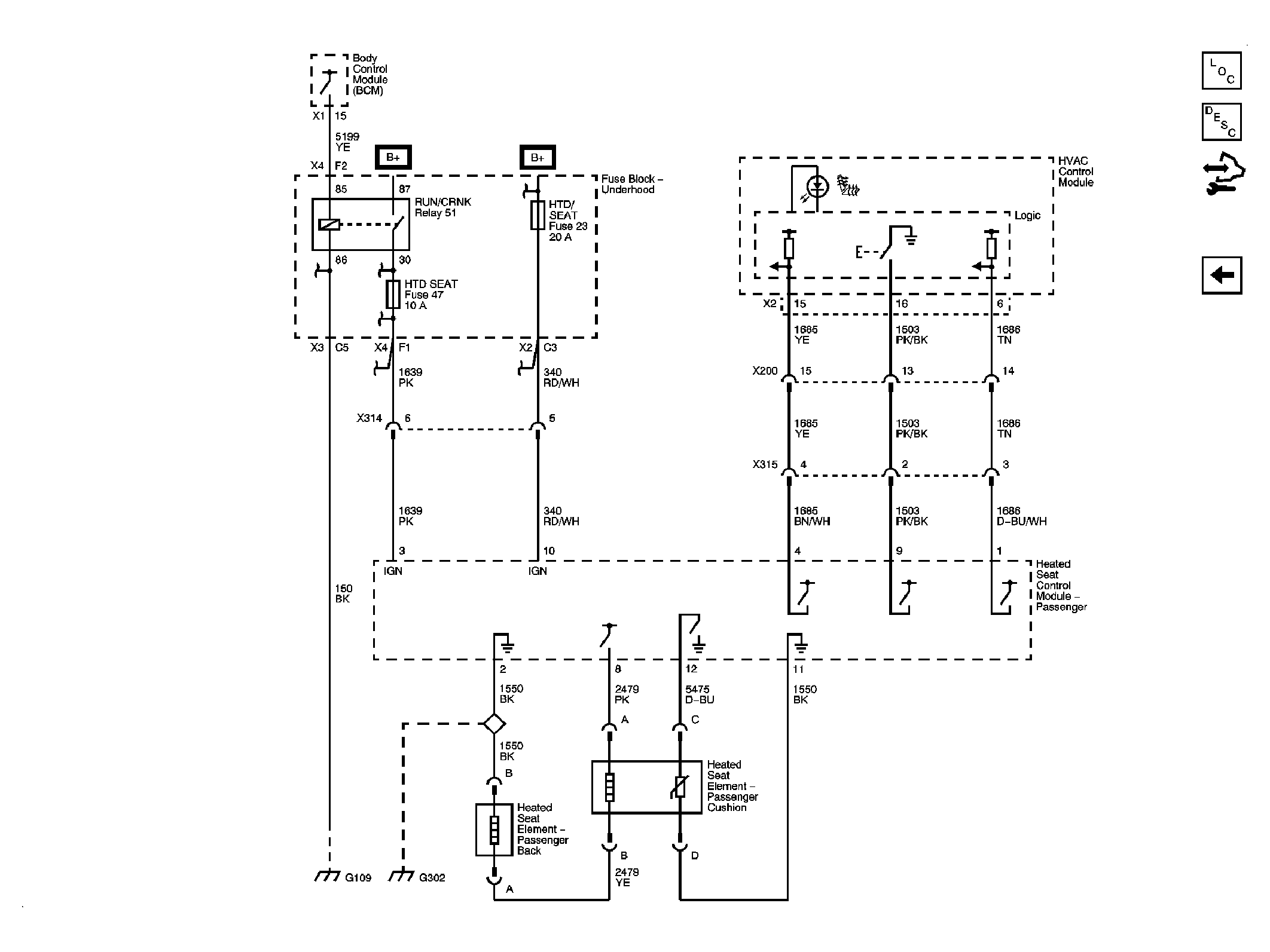

Fig 2: Heated Seat Circuit Schematic - Passenger

GM2085418

Courtesy of GENERAL MOTORS CORP.
