Knee Bolster Replacement

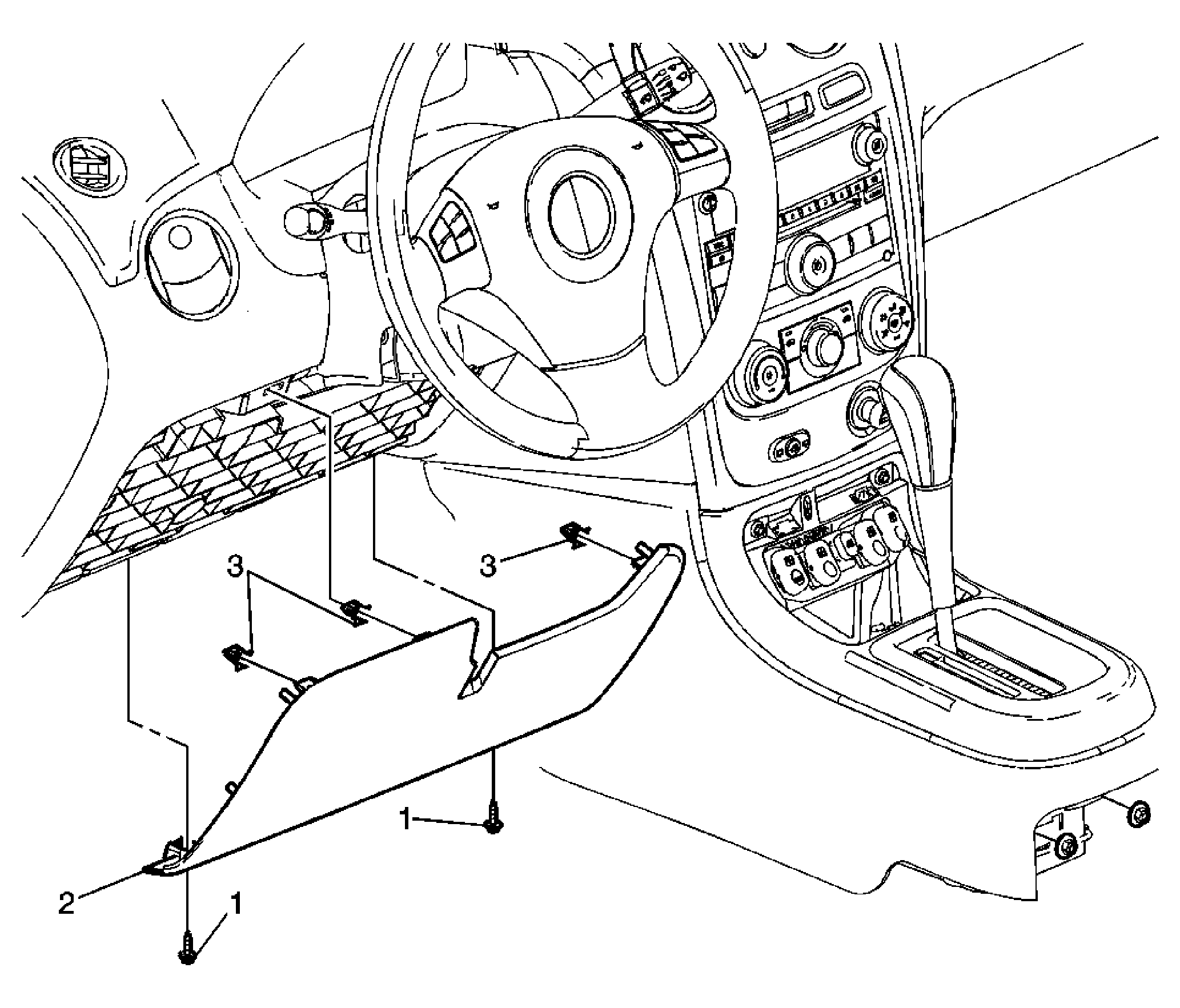

Fig 1: Identifying Knee Bolster
GM1608396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Knee Bolster Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Driver Knee Bolster Assembly
3 Retainer Clip (Qty: 3)
