Hood Primary and Secondary Latch Replacement

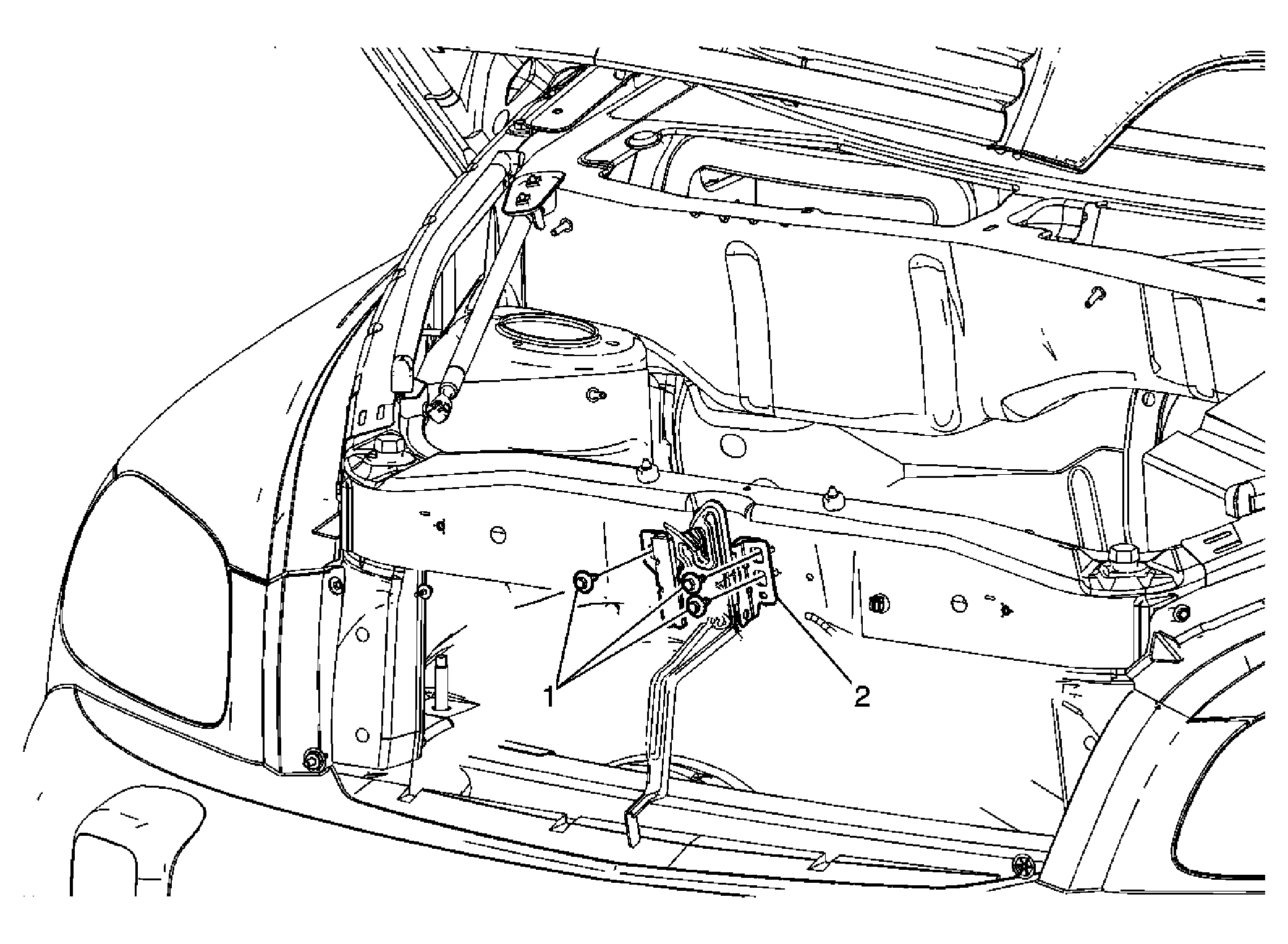

Fig 1: Identifying Hood Primary & Secondary Latch
GM1594937Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Latch Bolts (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  25 N.m (18 lb ft)
2 Hood Latch
Tip:
  • Disconnect the release cable.
  • Disconnect the electrical connector if equipped.
