Fuel Tank Filler Pipe Housing Replacement

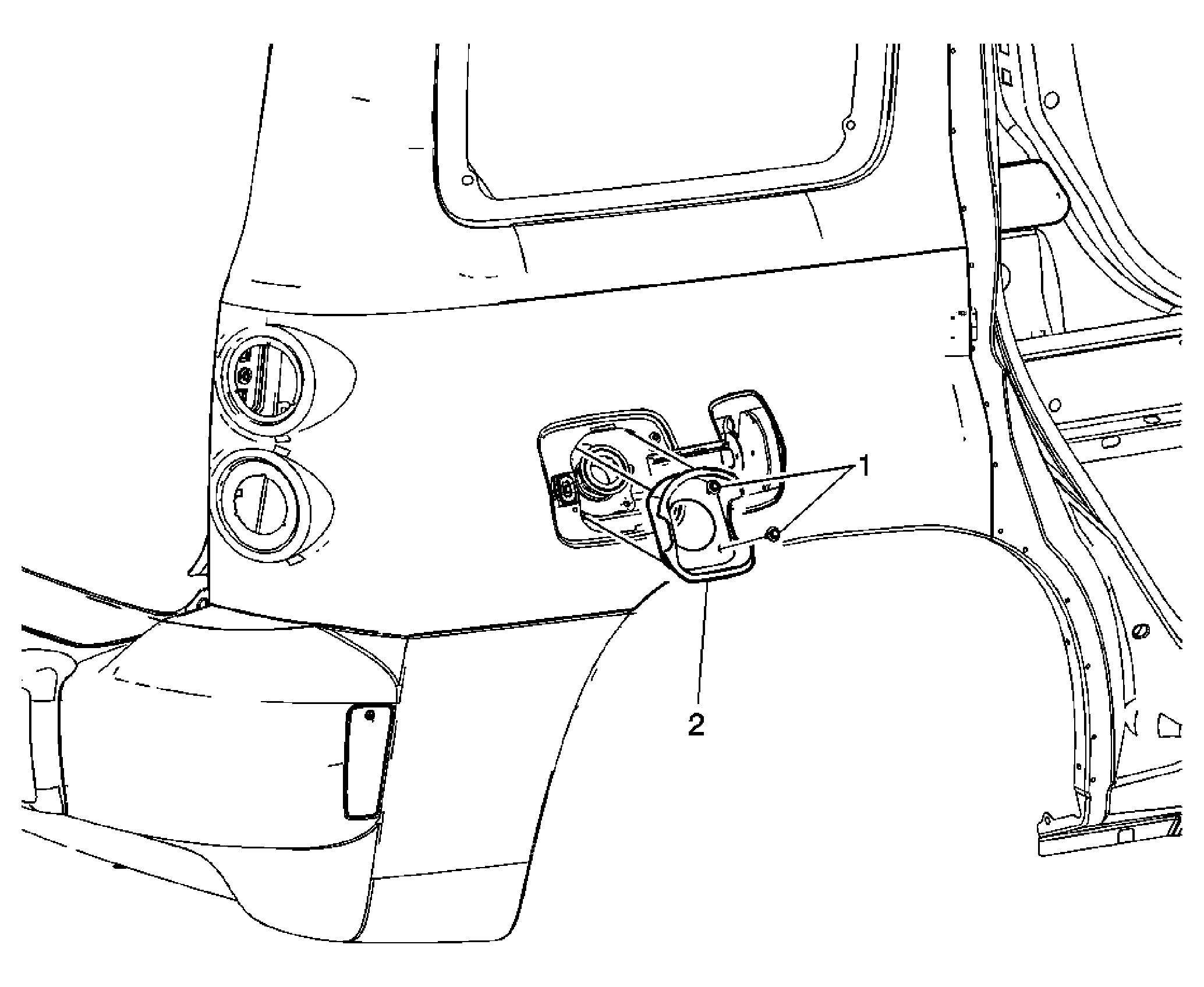

Fig 1: View Of Fuel Tank Filler Pipe Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Filler Pipe Housing Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Fuel Tank Filler Pipe Housing
