Windshield Washer Solvent Container Replacement

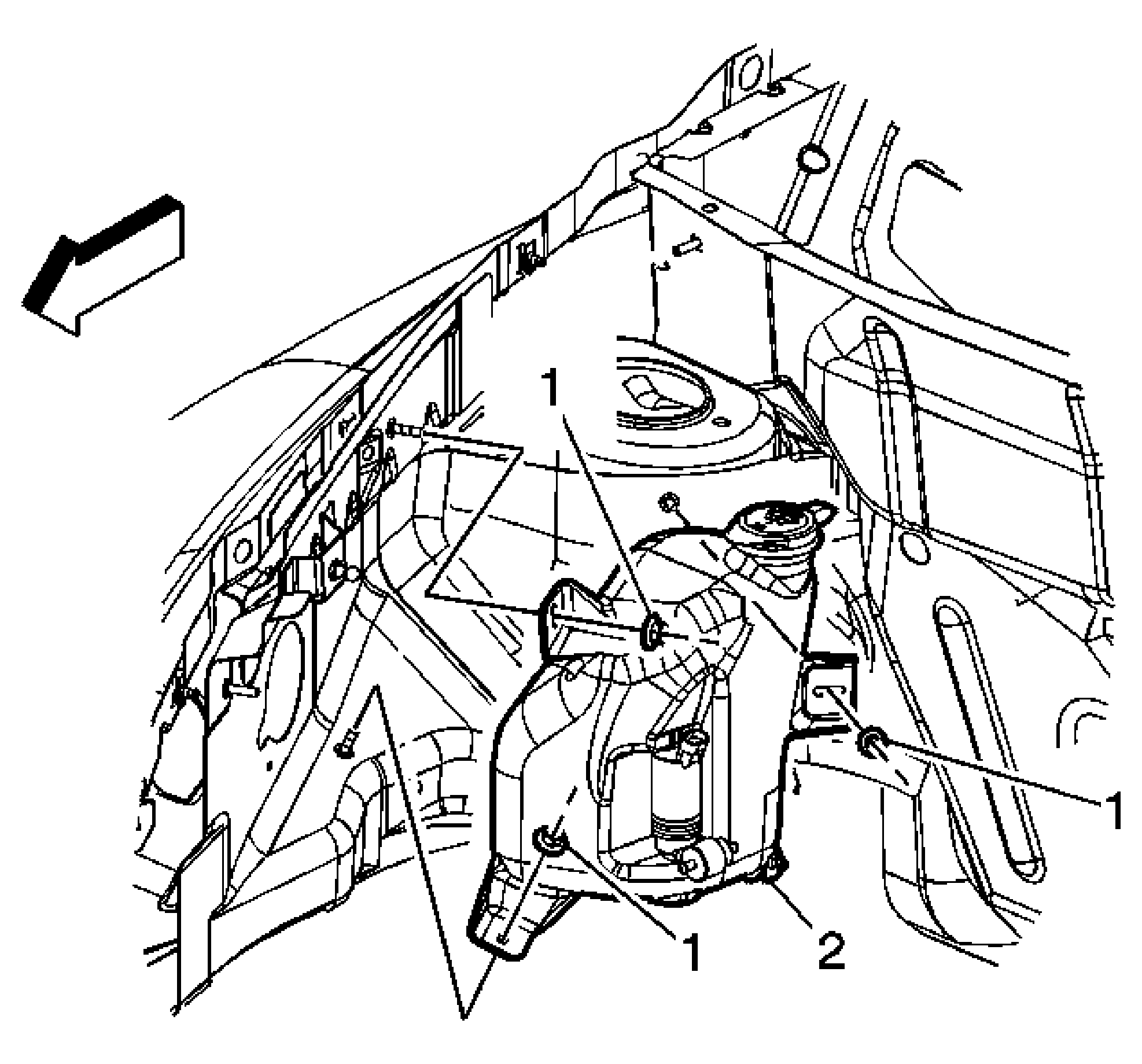

Fig 1: Identifying Windshield Washer Solvent Container
GM1614749Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Solvent Container Nut (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  5 N.m (44 lb in)
2 Windshield Washer Solvent Container Assembly
Tip:
  1. Disconnect the electrical connector from the pump.
  2. Disconnect the washer hose from the container.
