Dome Lamp Replacement

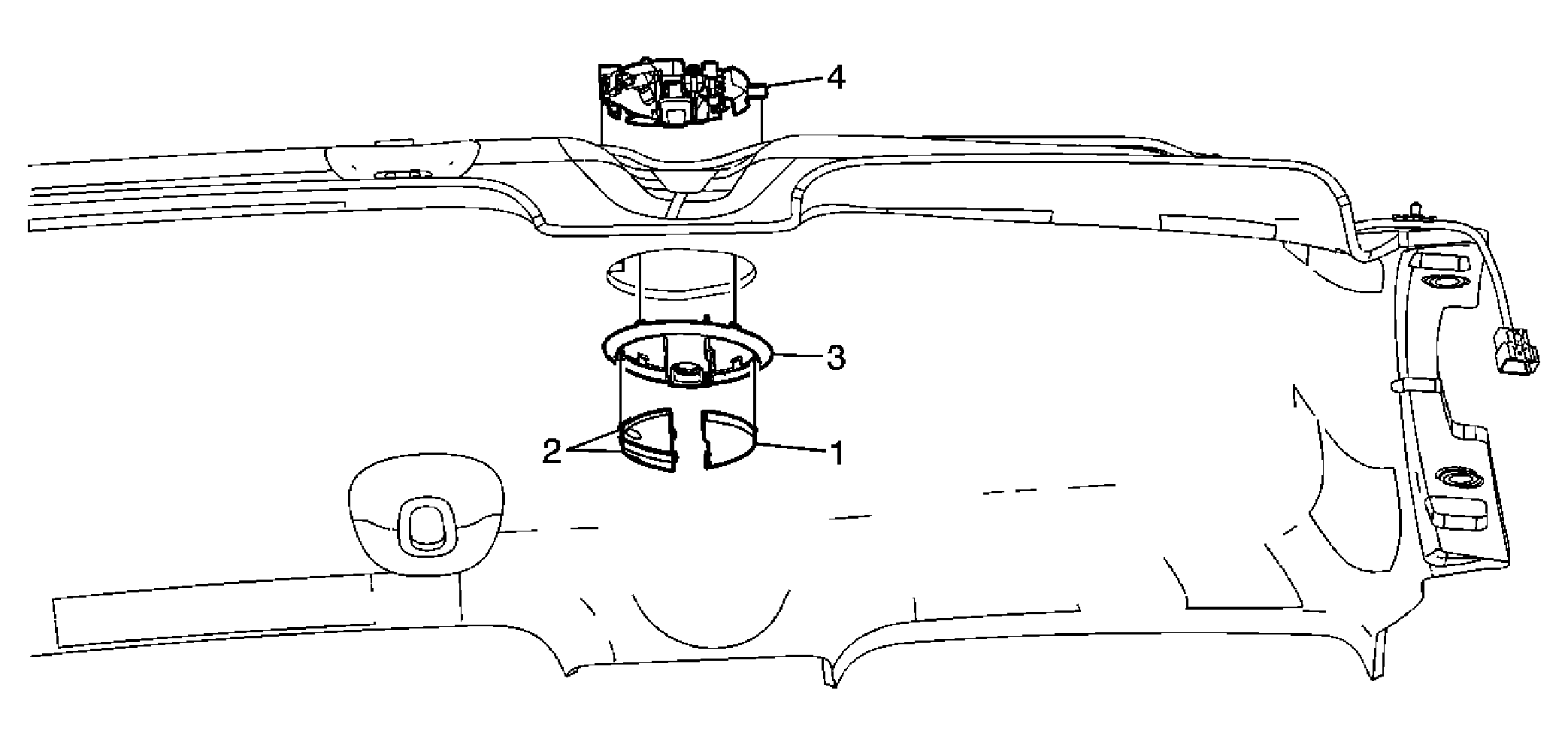

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Lower the headliner enough to gain access to the dome lamp housing. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Lens, Dome Lamp |
| 2 | Lens, Reading Lamp |
| 3 | Bezel, Dome Lamp Switch |
| 4 | Housing, Dome Lamp Tip: Disconnect the electrical connector. |
