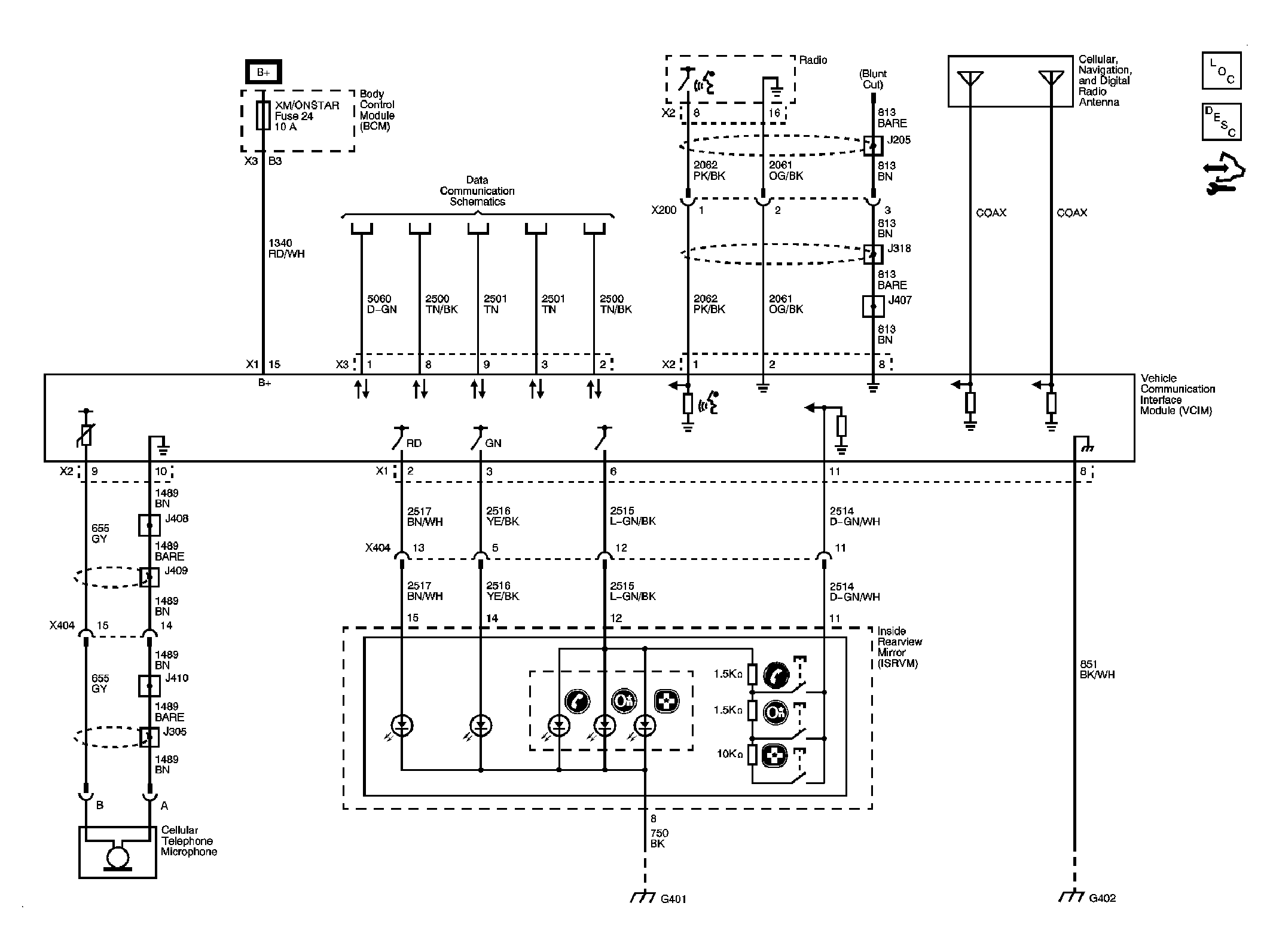

Home >> Chevrolet >> 2009 >> HHR SS, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System & Navigation System >> Schematic and Routing Diagrams >> OnStar Schematics
