Driver Information Display Replacement (SS)

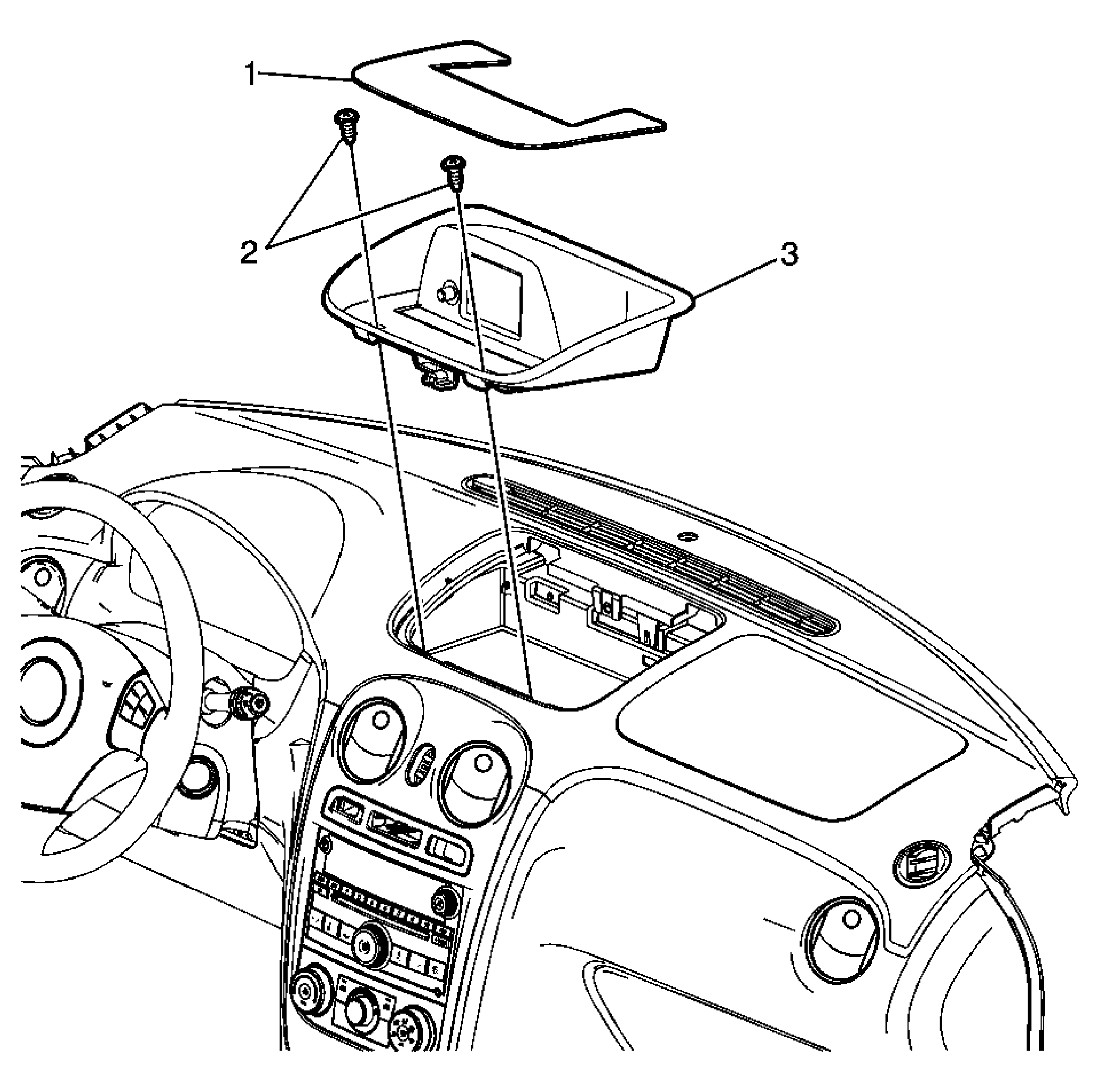

Fig 1: Identifying Driver Information Display (SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Compartment Liner
2	Drivers Information Display Assembly Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2.5 N.m (22 lb in)
3	Drivers Information Display Assembly
