Fuel Feed Intermediate Pipe Replacement

Fuel Feed Intermediate Pipe Replacement

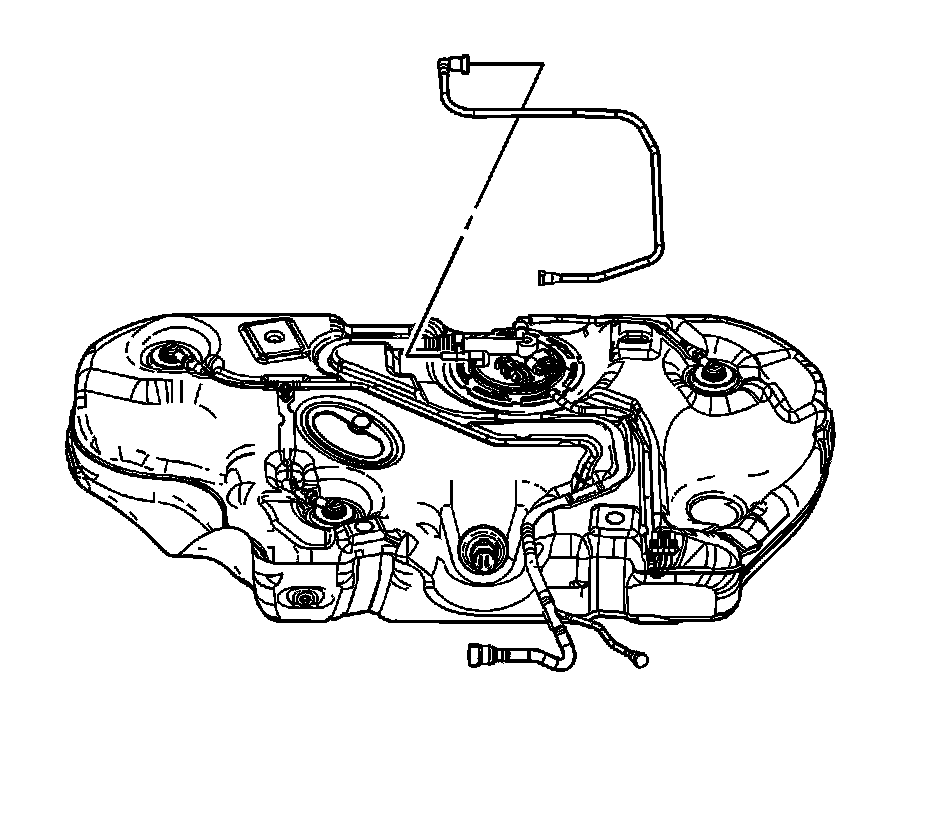

Removal Procedure




1. Remove the fuel tank. Refer to Fuel Tank Replacement (Service and Repair).
2. Disconnect the fuel feed intermediate pipe quick connect fitting from module. Refer to Plastic Collar Quick Connect Fitting Service (Plastic Collar Quick Connect Fitting Service).
3. Remove the fuel feed intermediate pipe from the fuel tank.

Installation Procedure




1. Connect the fuel feed intermediate pipe quick connect fitting to module. Refer to Plastic Collar Quick Connect Fitting Service (Plastic Collar Quick Connect Fitting Service).
2. Install the fuel feed intermediate pipe to the fuel tank.
3. Install the fuel tank. Refer to Fuel Tank Replacement (Service and Repair).
