J500 - J599

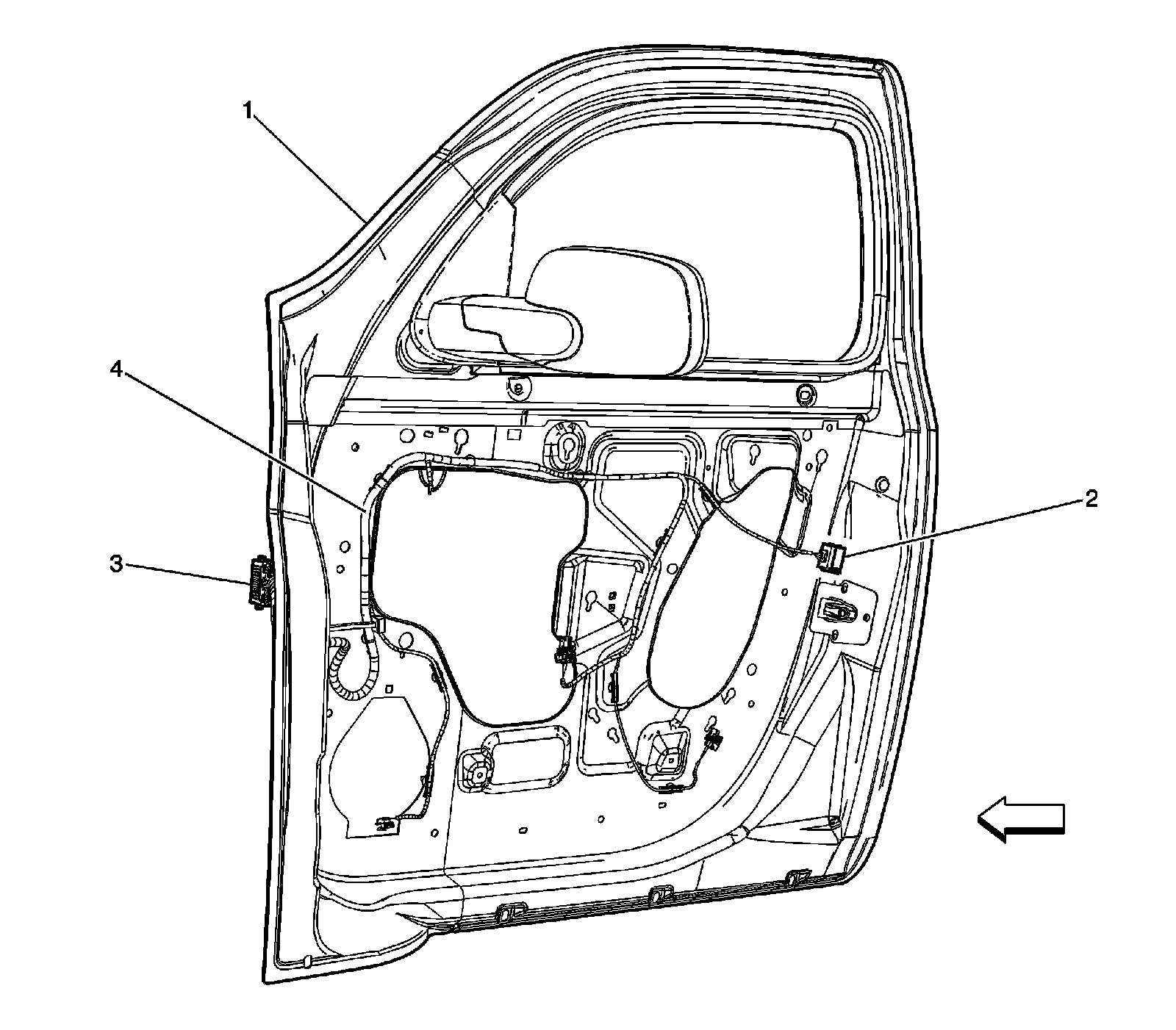

Harness Routing Views

Left Front Door Harness




1 - Door Frame
2 - Door Latch - Driver Connector
3 - X301
4 - J500
