Home >> Chevrolet >> 2009 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Reverse (W/O Electronic Range Select Mode)

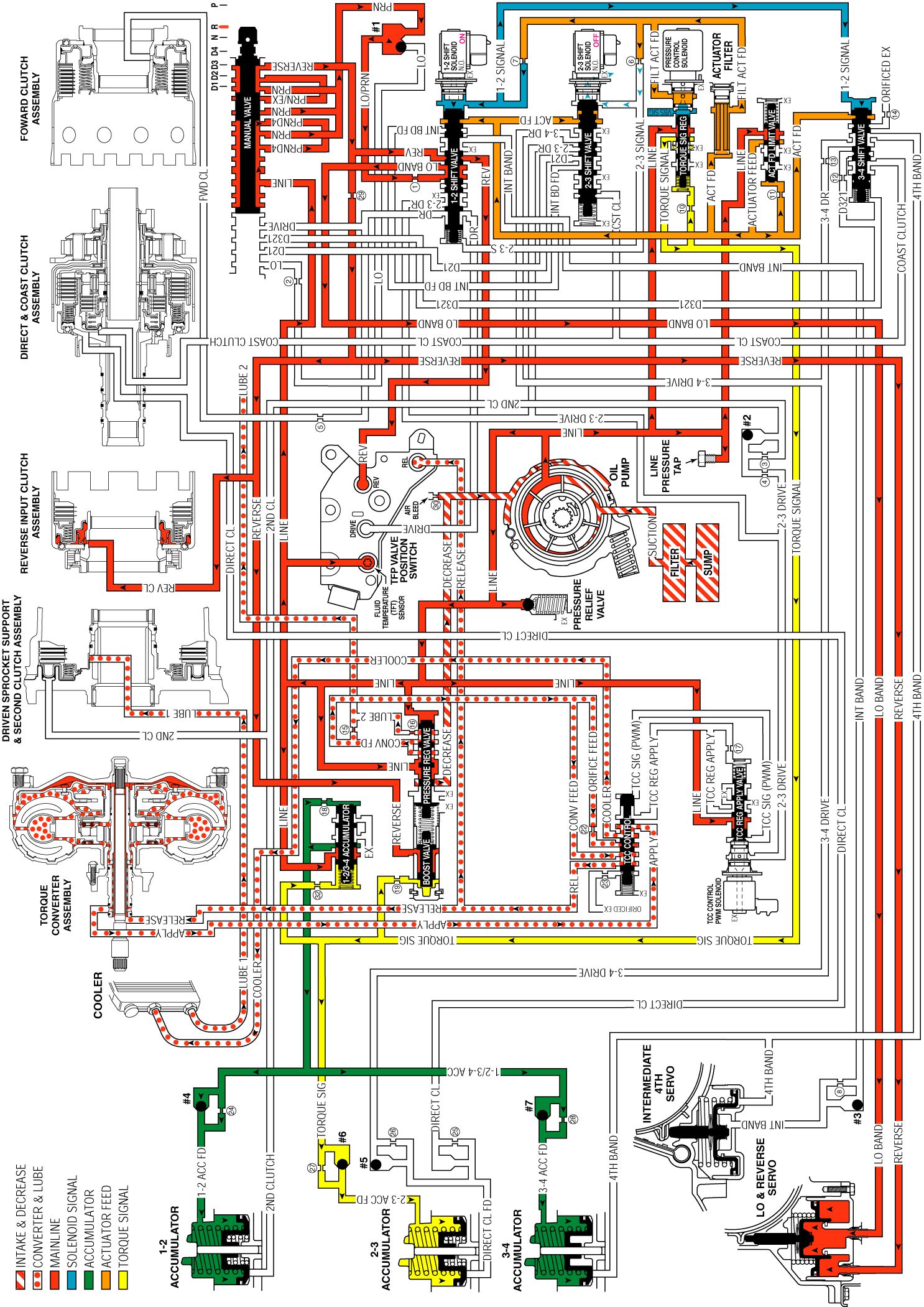

Reverse (W/O Electronic Range Select Mode)





Reverse - Without Electronic Range Select
Mode
