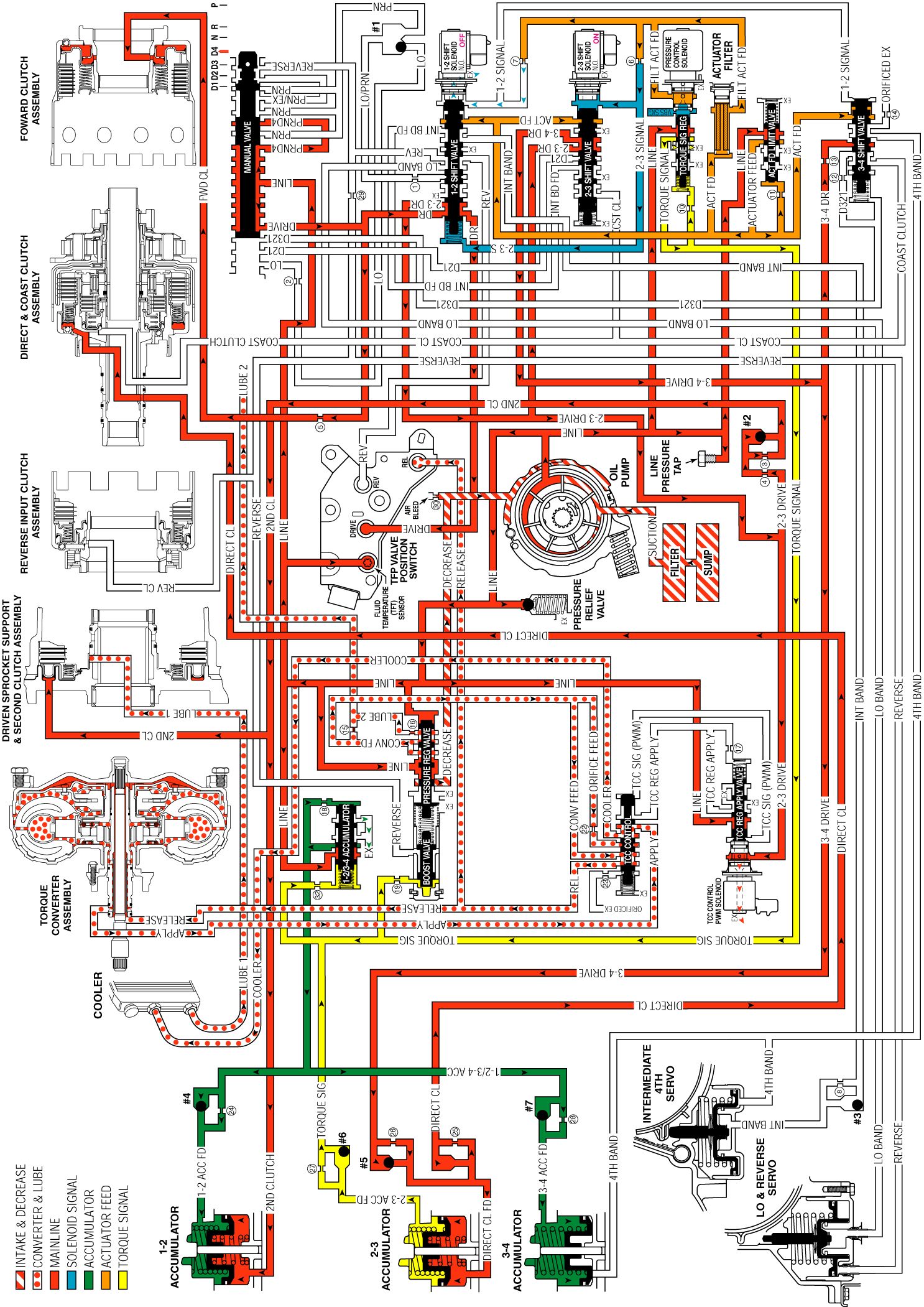

Overdrive Range, Third Gear - Torque Converter Clutch Not Applied (W/O Electronic Range Select Mode)





Overdrive Range, Third Gear - TCC Not Applied -
Without Electronic Range Select Mode
