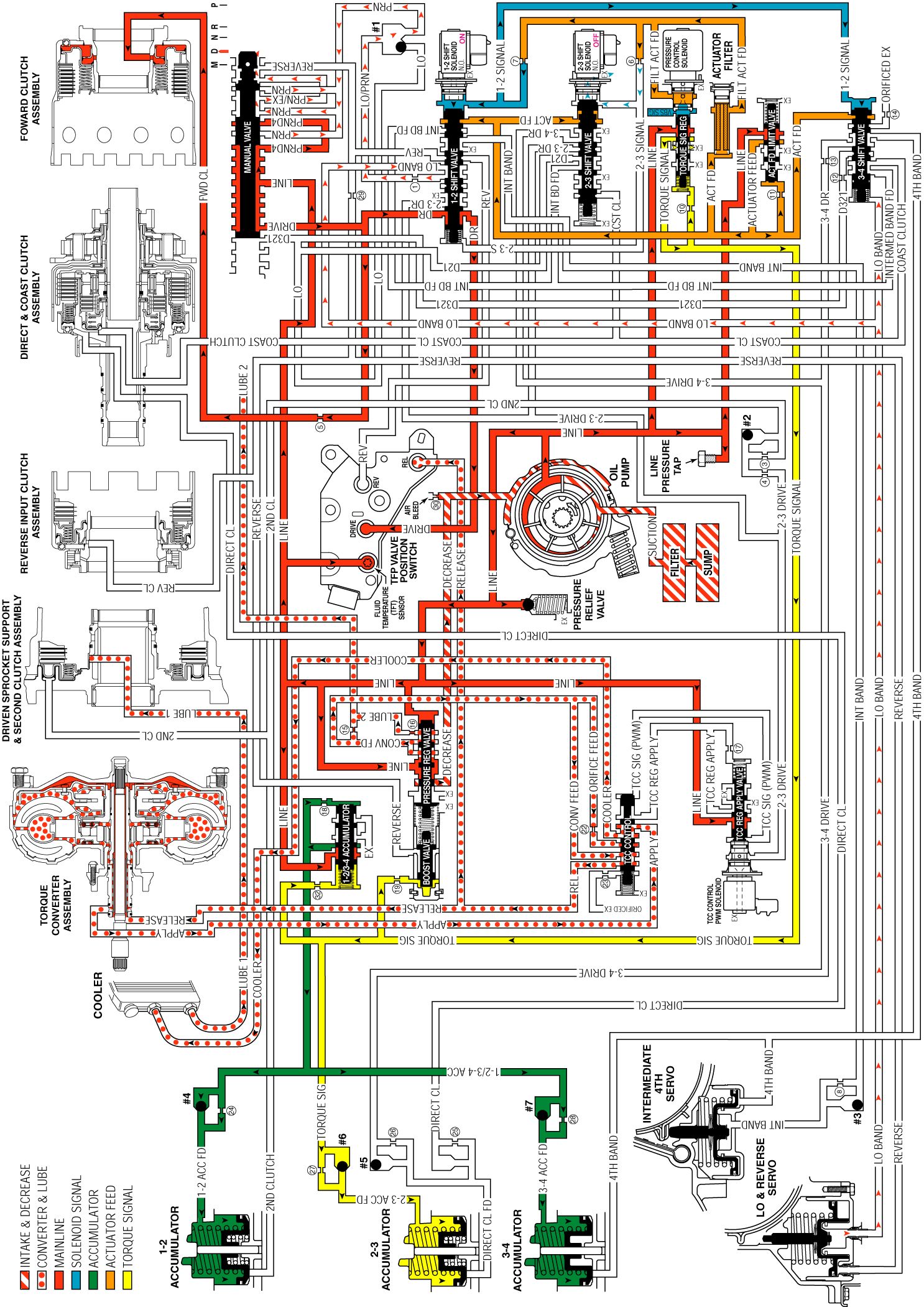

Overdrive Range, First Gear (With Electronic Range Select Mode)





Overdrive Range, First Gear - With Electronic Range Select Mode
