Home >> Chevrolet >> 2009 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Manual Third Gear (With Electronic Range Select Mode)

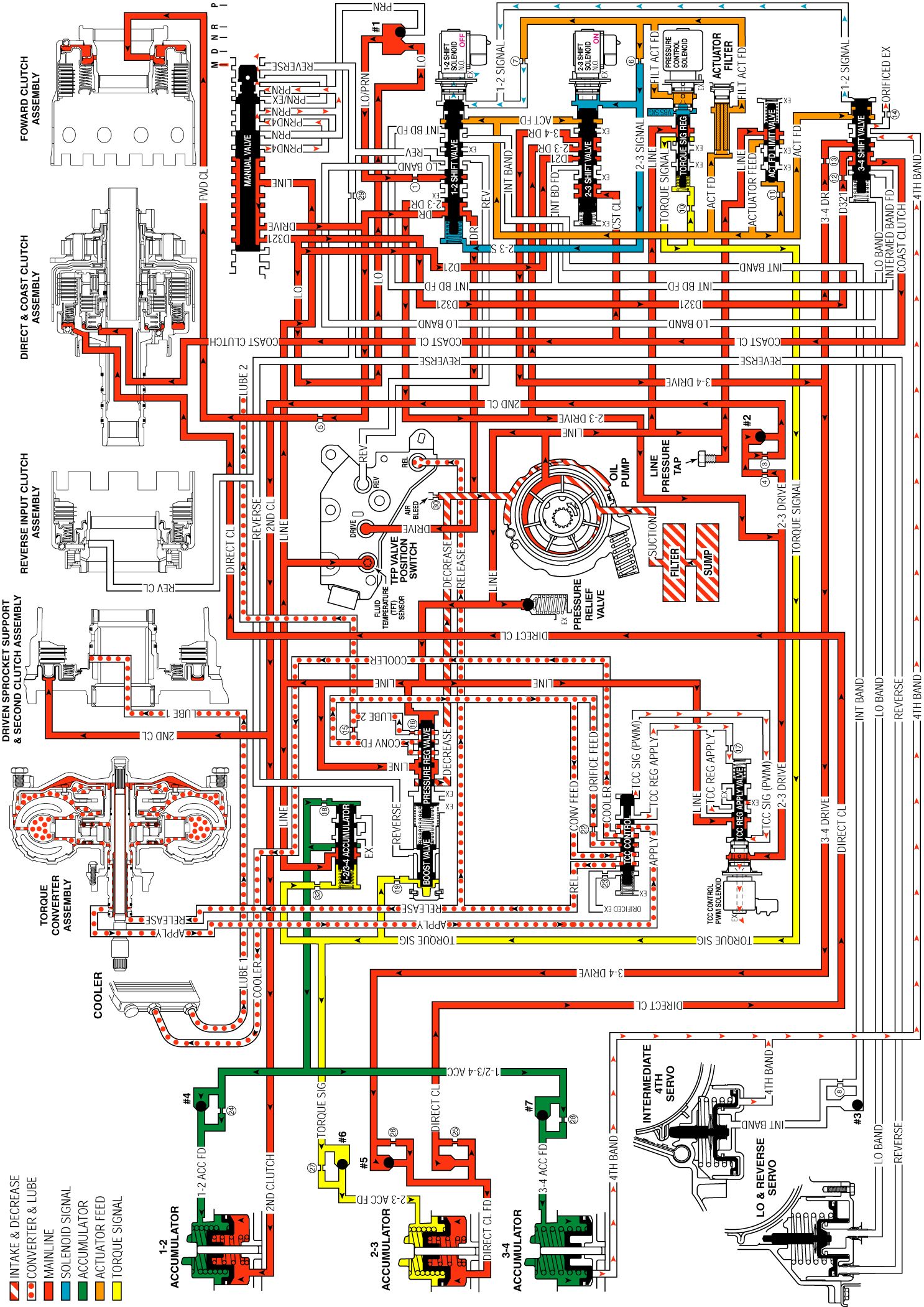

Manual Third Gear (With Electronic Range Select Mode)





Manual Range 3rd - With Electronic Range Select Mode
