Home >> Chevrolet >> 2009 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Drive Range, Manual Third (from Overdrive Range) (W/O Electronic Range Select Mode)

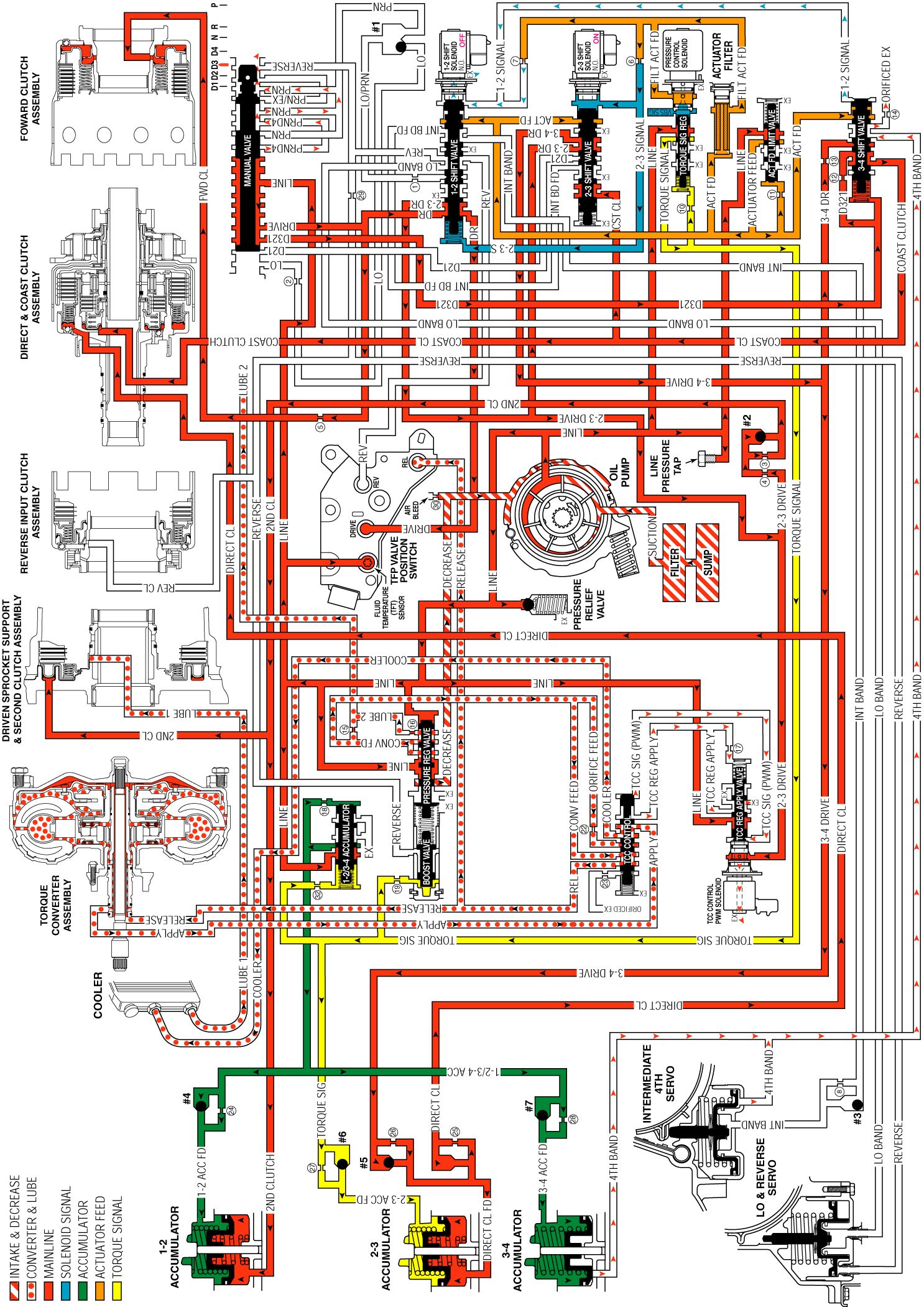

Drive Range, Manual Third (from Overdrive Range) (W/O Electronic Range Select Mode)





Drive Range, Manual 3rd (from Overdrive Range) -
Without Electronic Range Select Mode
