Wiper and Washer Systems




Wiper/Washer Schematics

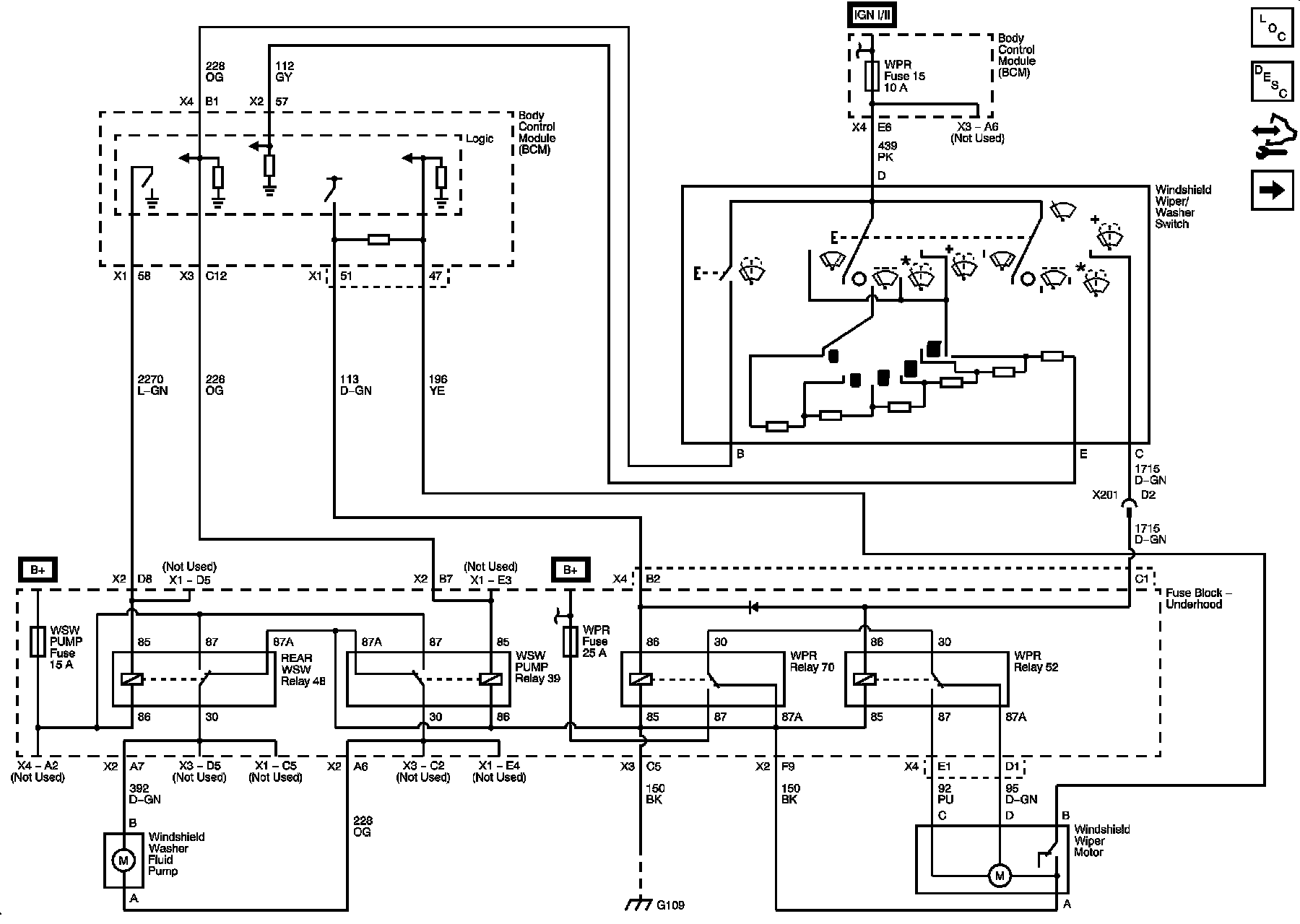

Front Wiper/Washer Control





Rear Wiper/Washer Control
