Seat Temperature Element




Heated/Cooled Seat Schematics

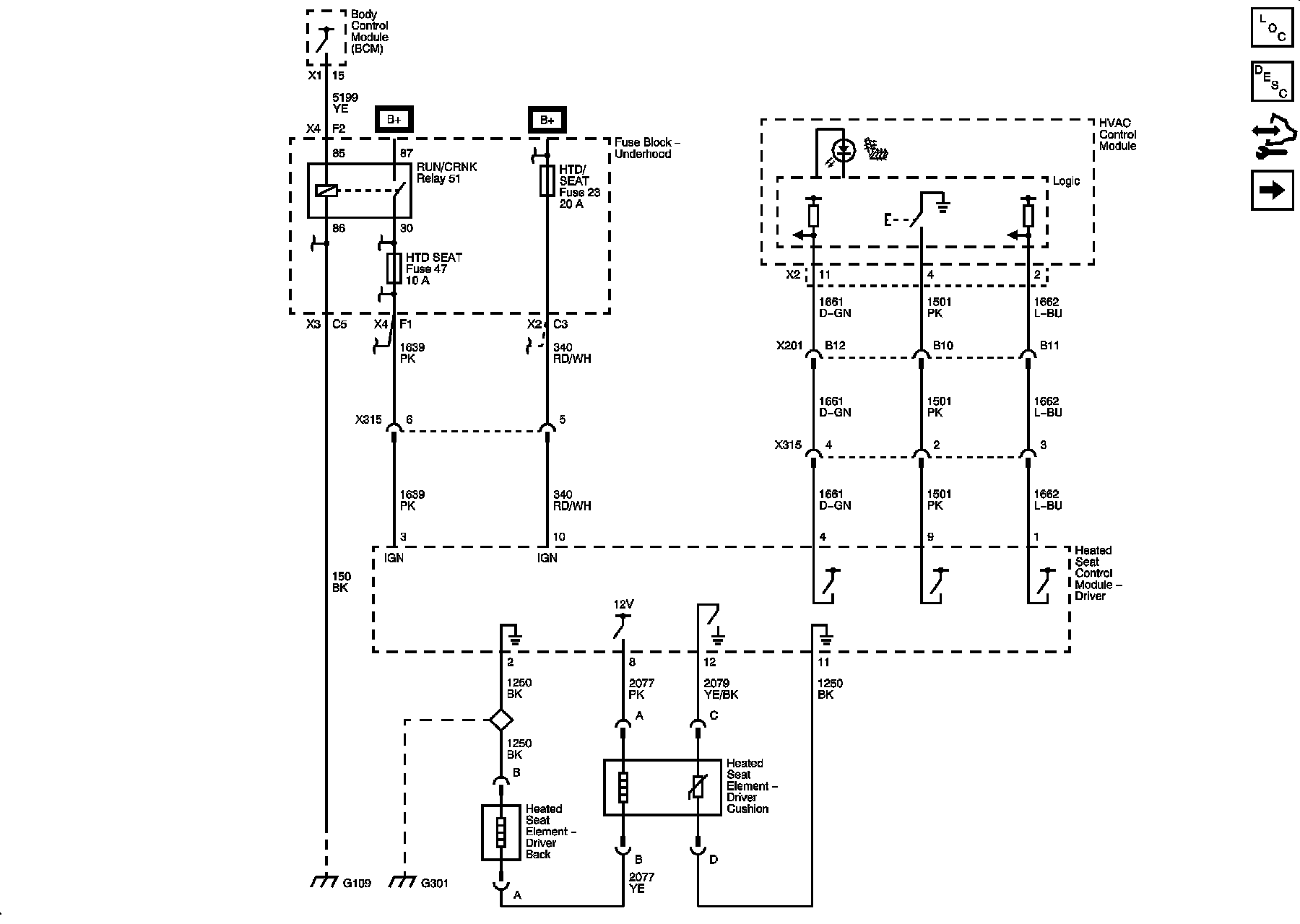

Heated Seat - Driver

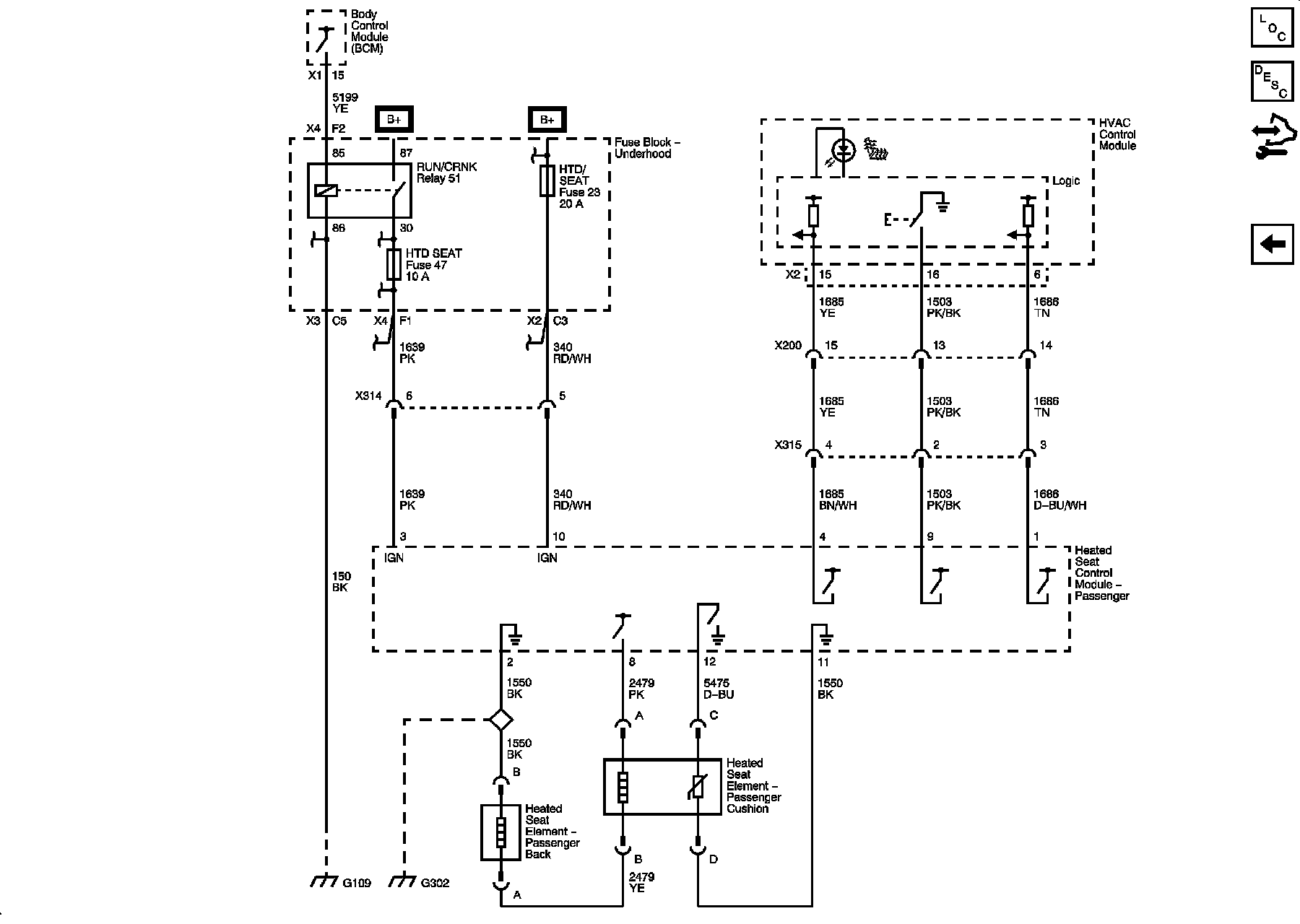

Heated Seat - Passenger
