Home
>>
Chevrolet
>>
2009
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
>>
MU3 - Manual Transmission
MU3 - Manual Transmission

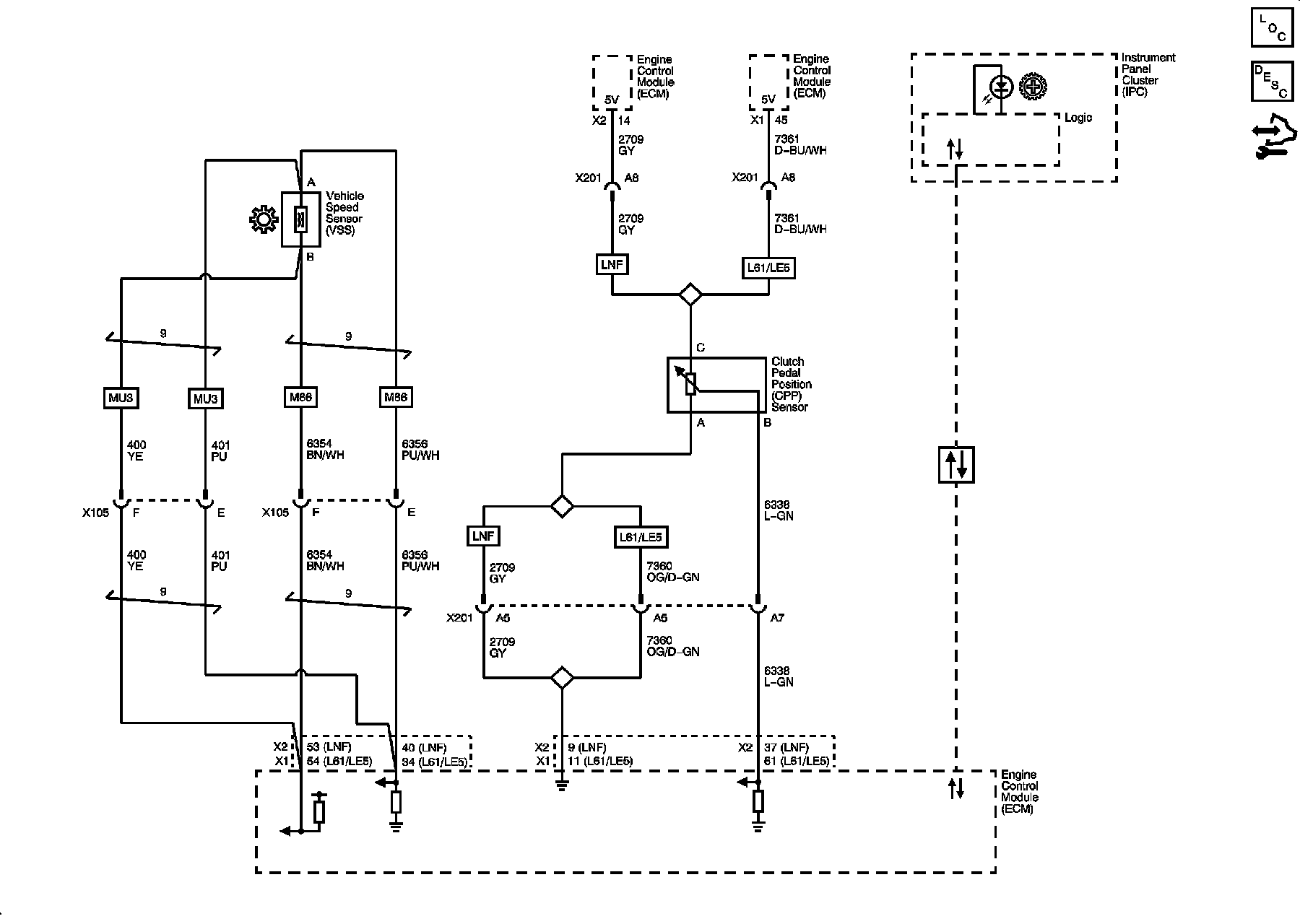

Manual Transmission Schematics
MU3
