Instrument Cluster Schematics




Instrument Cluster Schematics

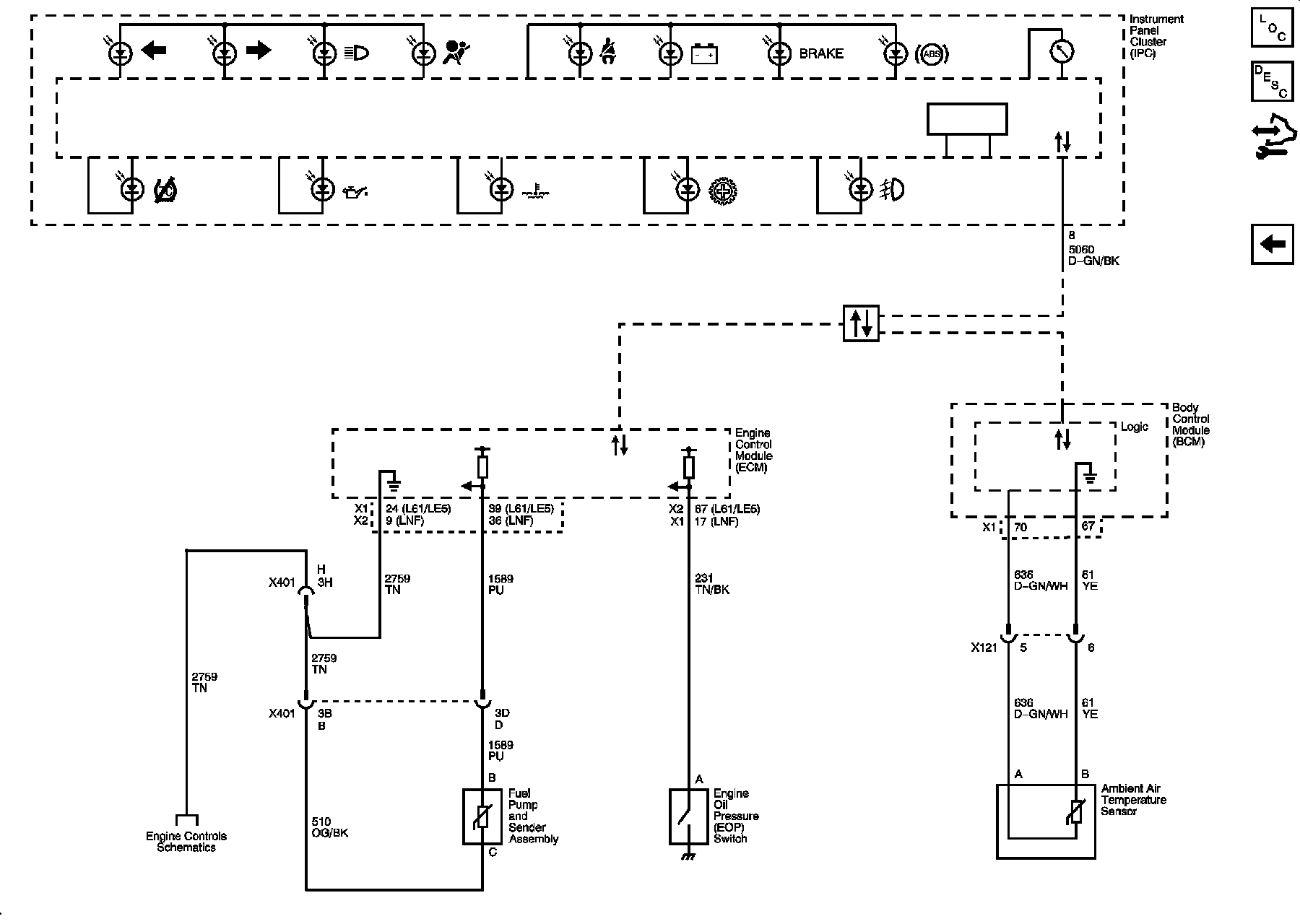

Ambient Air Temperature Sensor, EOP Sensor, Fuel Level Sensor, and Indicators





Power, Ground, DIC, Illumination, MIL, and Security Indicator
