System Diagram




HVAC Schematics

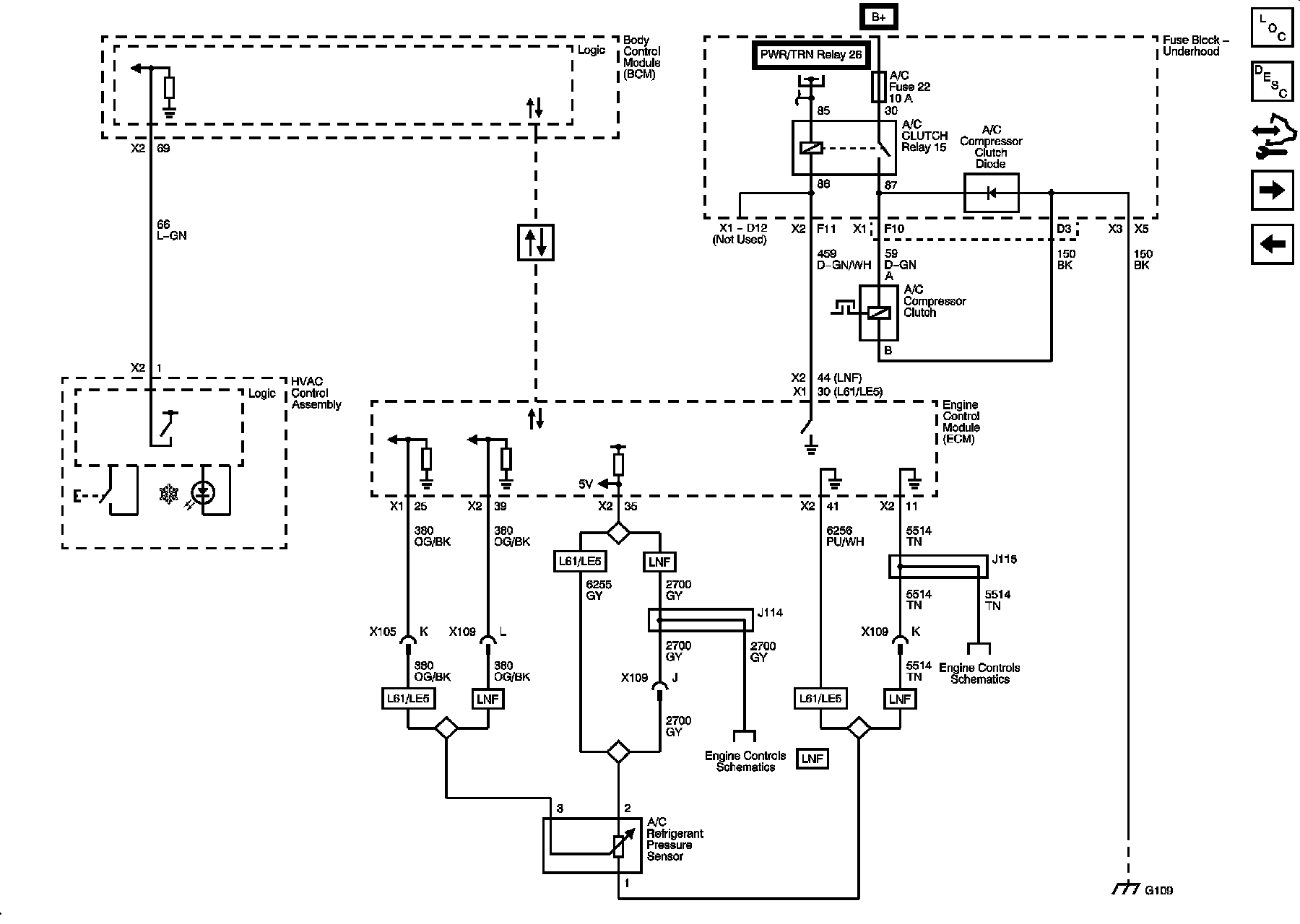

Compressor Controls





Mode and Air Temperature Controls

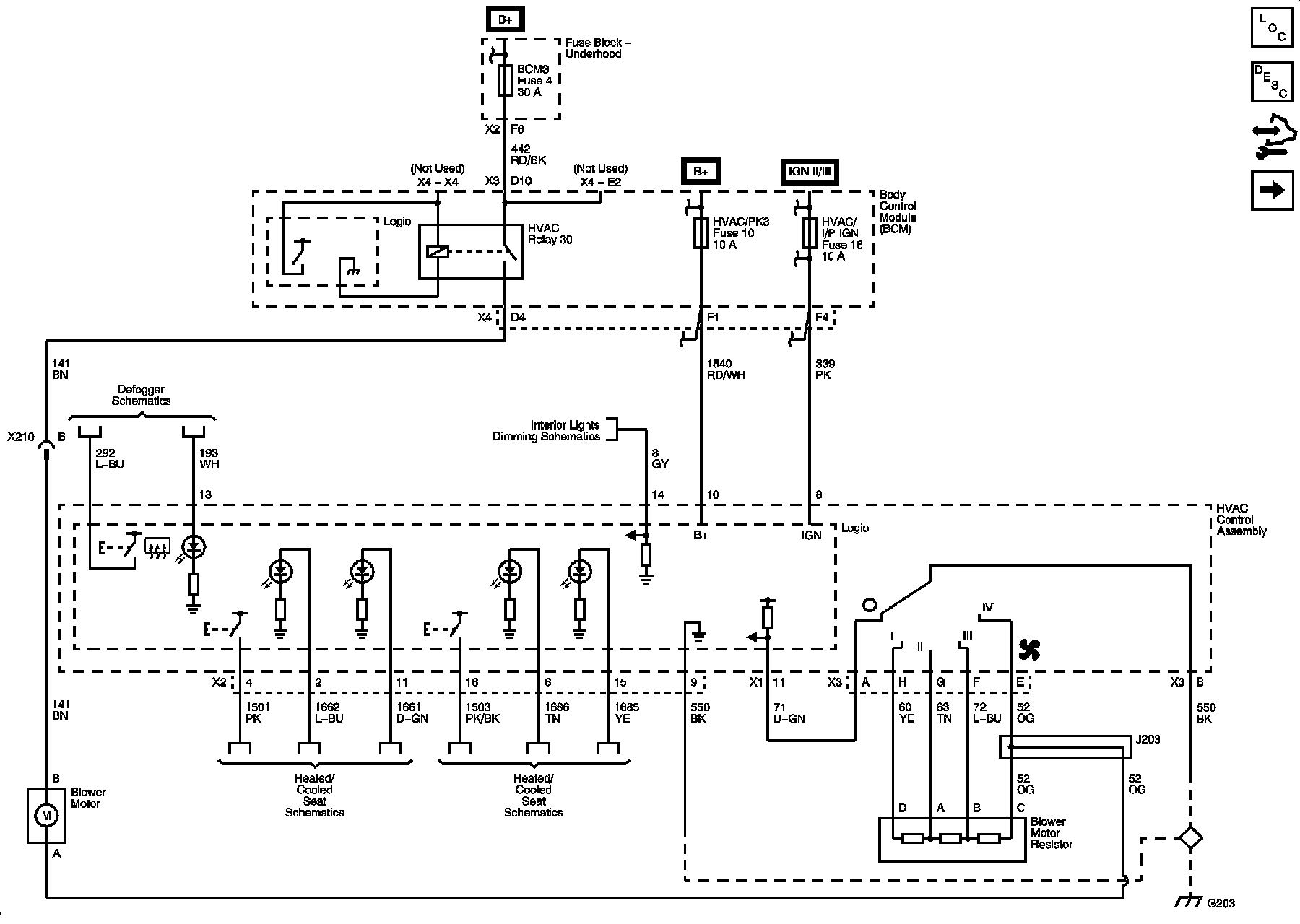

Power, Ground, Blower Motor Controls, and Subsystem References
