Antilock Brakes / Traction Control Systems




Antilock Brake System Schematics

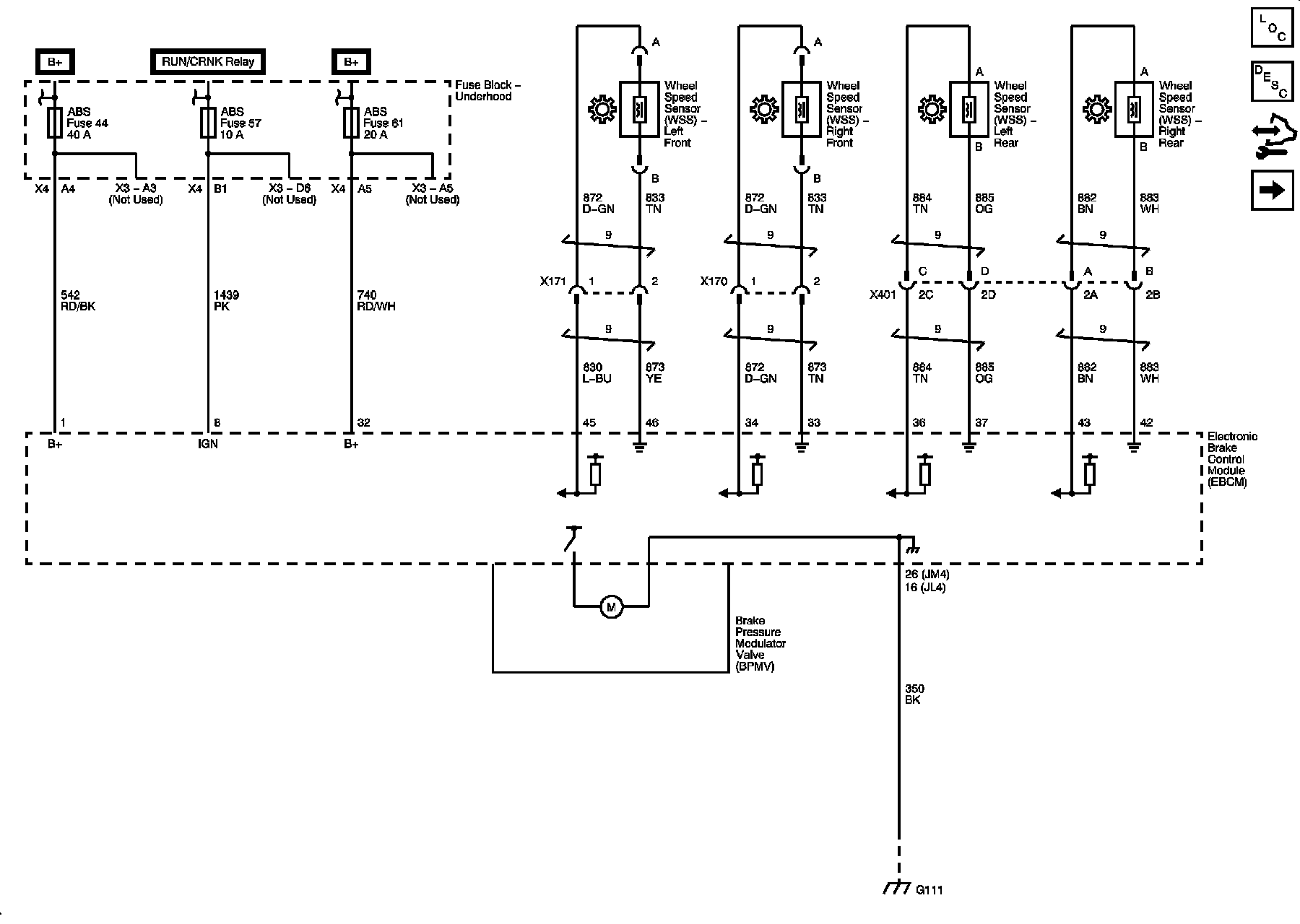

Power, Ground, and WSS





Stability Control (JL4)
