X319




Inline Harness Connector End Views

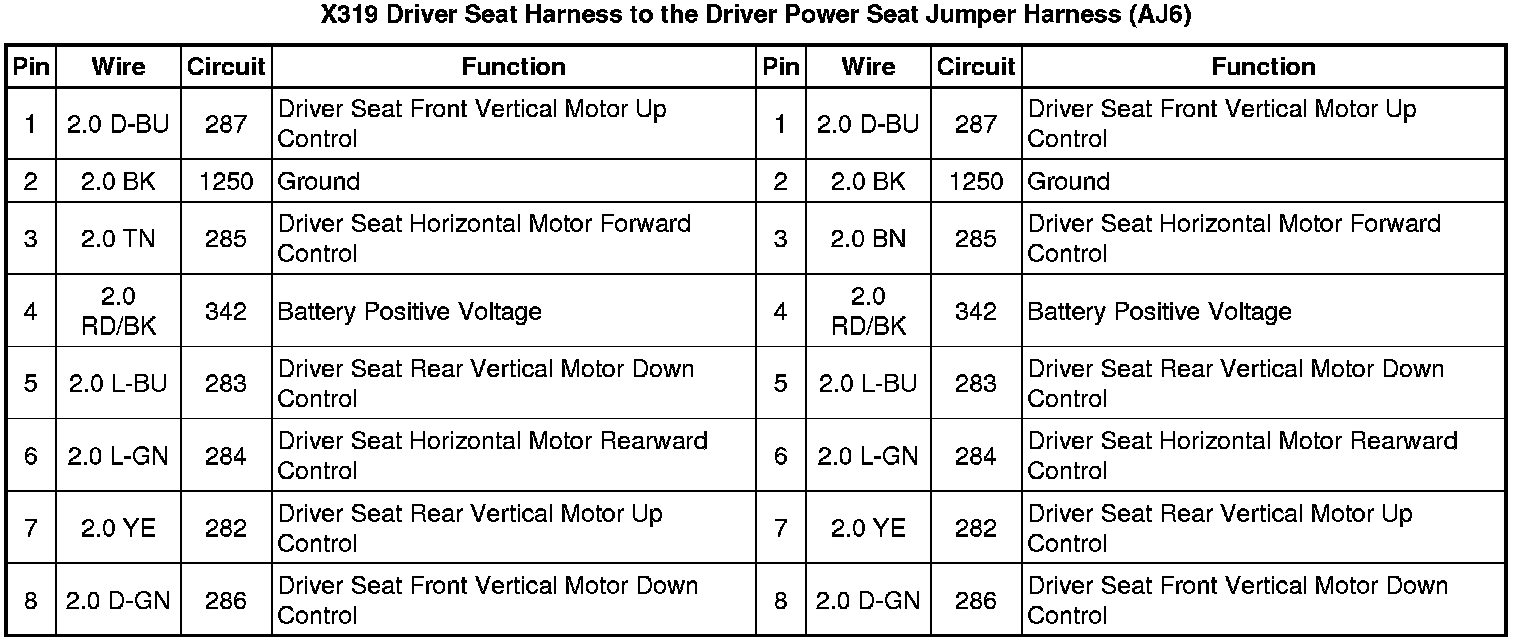

X319 Driver Seat Harness to the Driver Power Seat Jumper Harness (AJ6)
