X160
X160
Inline Harness Connector End Views

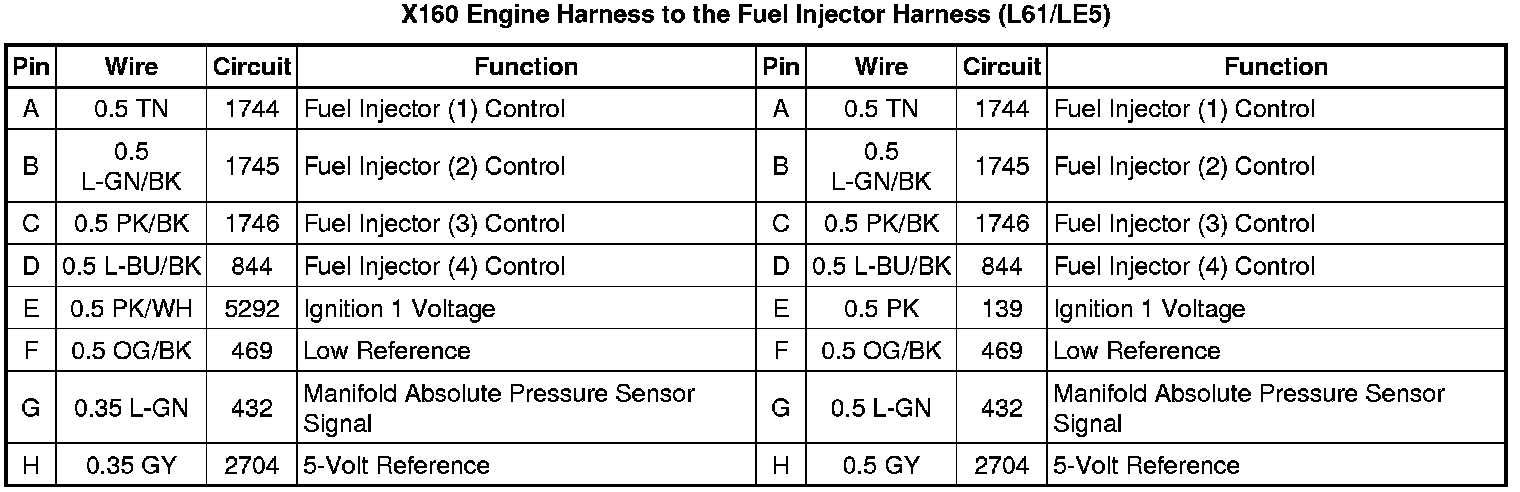

X160 Engine Harness to the Fuel Injector Harness (L61/LE5) (2.2L/2.4L)
