Torque Converter Seal Installation

Torque Converter Seal Installation

Special Tools

J 28540-A - Torque Converter Seal Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).





Caution: Install the seal onto the tool before installing into the case to prevent damage to the seal.

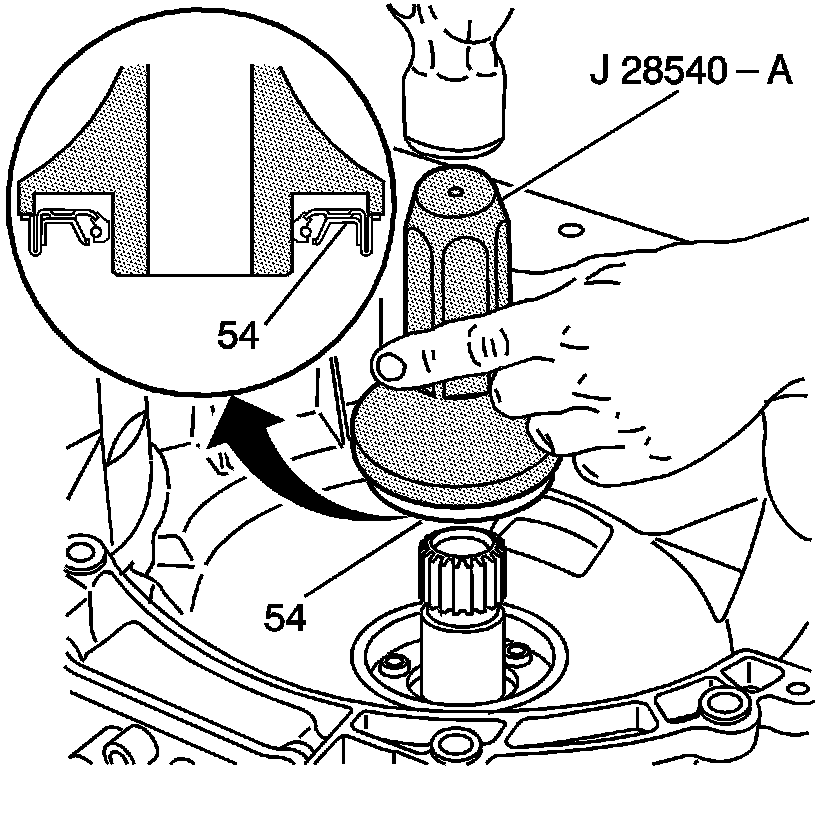

Install a new torque converter seal (54). Use the J 28540-A - seal installer.
