Side Cover Axle Seal Installation

Side Cover Axle Seal Installation

Special Tools
* J 8092 - Driver Handle
* J 41102-1A - Axle Seal Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).





Note: You must use the J 41102-1A - seal installer in order to install the seal correctly. The J 41102-1A - seal installer installs the axle seal to a given depth.

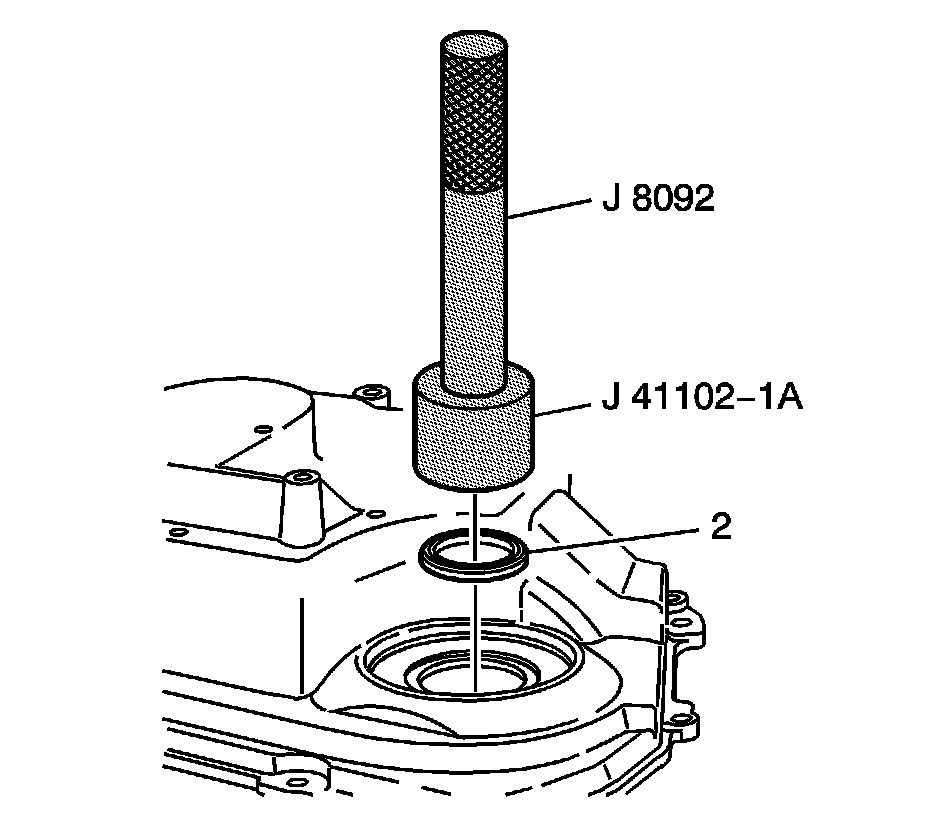

1. Install a new side cover axle seal (2) into the side cover. Use the J 41102-1A - seal installer with the J 8092 - driver handle.
2. In order to prevent damage to the shaft splines during vehicle operation, add Polyurea grease (part number 7843867) to the splines on the output shaft.
