Second Clutch Plates Removal




Second Clutch Plates Removal

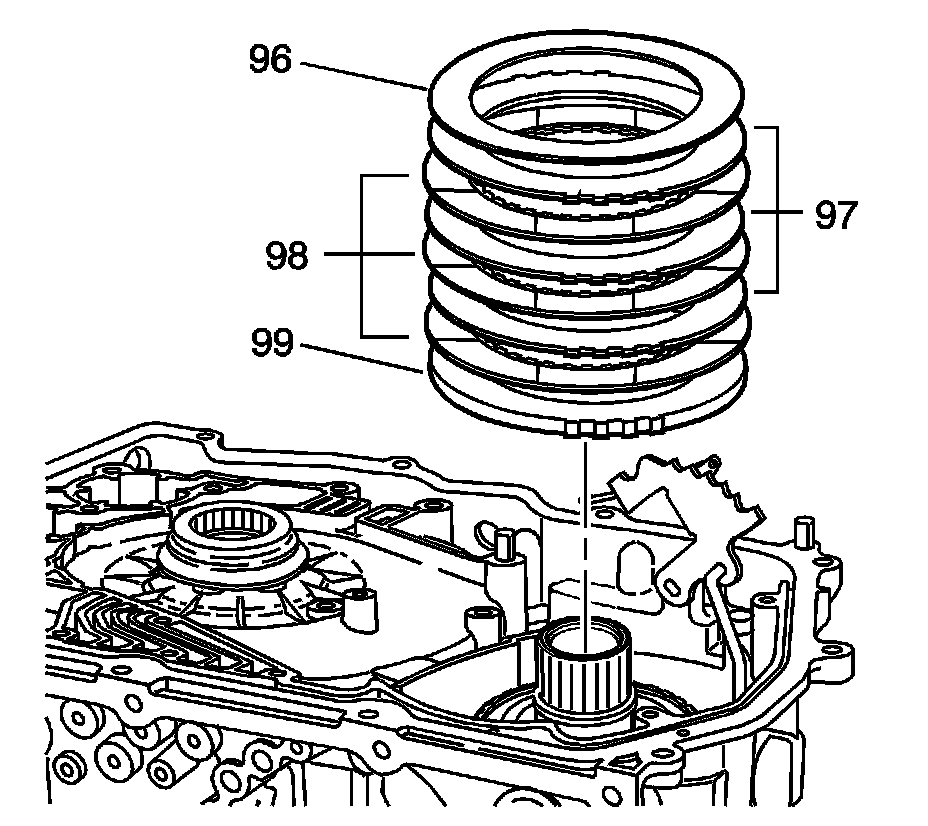

Remove the following plates:

* 2nd clutch wave plate (96)
* 2nd clutch steel plates (97)
* 2nd clutch fiber plates (98)
* 2nd clutch backing plate (99)
