Second Clutch Plate Installation

Second Clutch Plate Installation




1. Inspect the 2nd clutch plates for excessive wear.
2. Clean and dry each of the components.

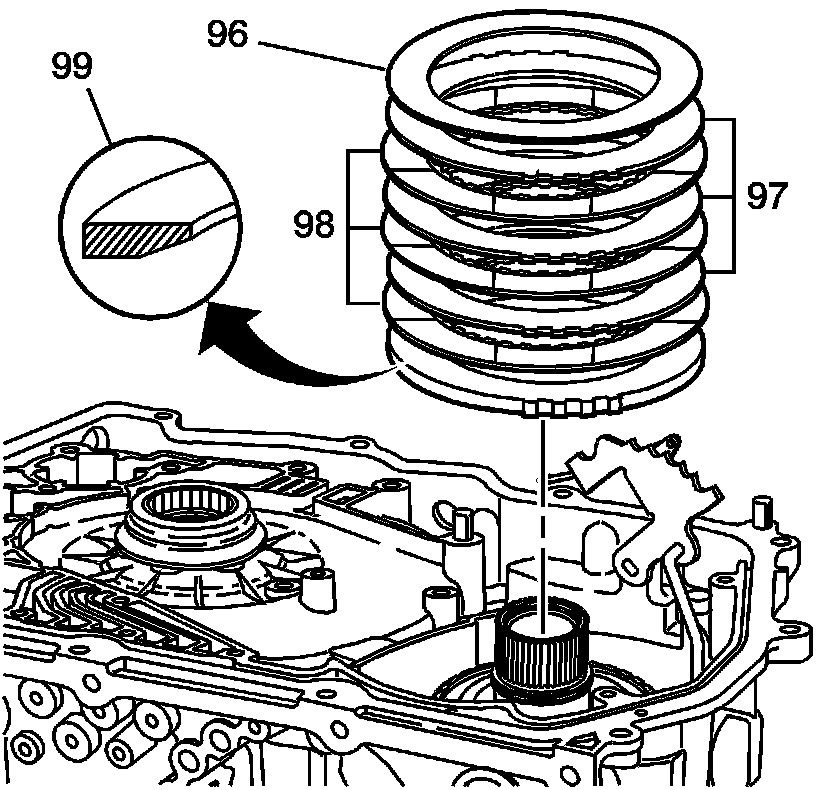

3. Assemble the 2nd clutch backing plate (99) with the flat side facing up.
4. Assemble the three steel (97) and the three new fiber plates (98) in alternating order beginning with a fiber plate (98).
5. Assemble the 2nd clutch wave plate (96).
