Reaction Internal Gear, Input Carrier Installation

Reaction Internal Gear, Input Carrier Installation





Note: While installing the reaction internal gear and input carrier assembly, rotate the assembly in order to mesh the input carrier pinion gears to the input internal gear.

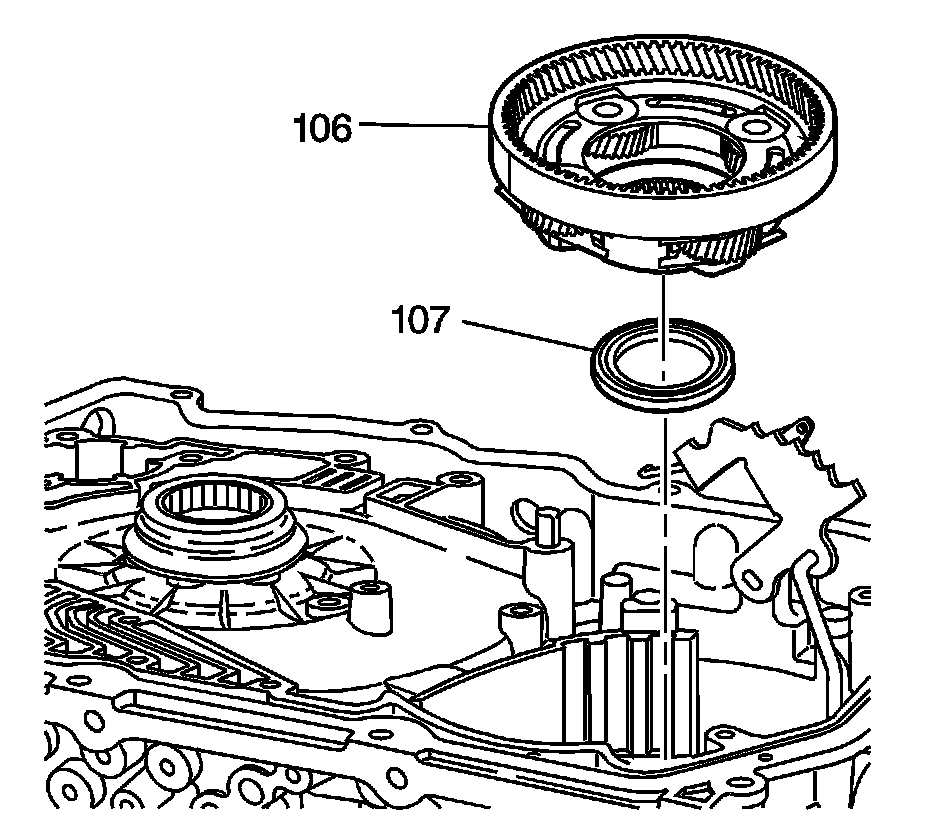

Install the reaction internal gear and input carrier assembly (106) into the transmission case.
