Output Shaft Removal




Output Shaft Removal

Special Tools
* J 6125-1B - Slide Hammer with Adapter
* J 38868 - Output Shaft Assembly Remover and Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).




1. Remove the snap ring (57).

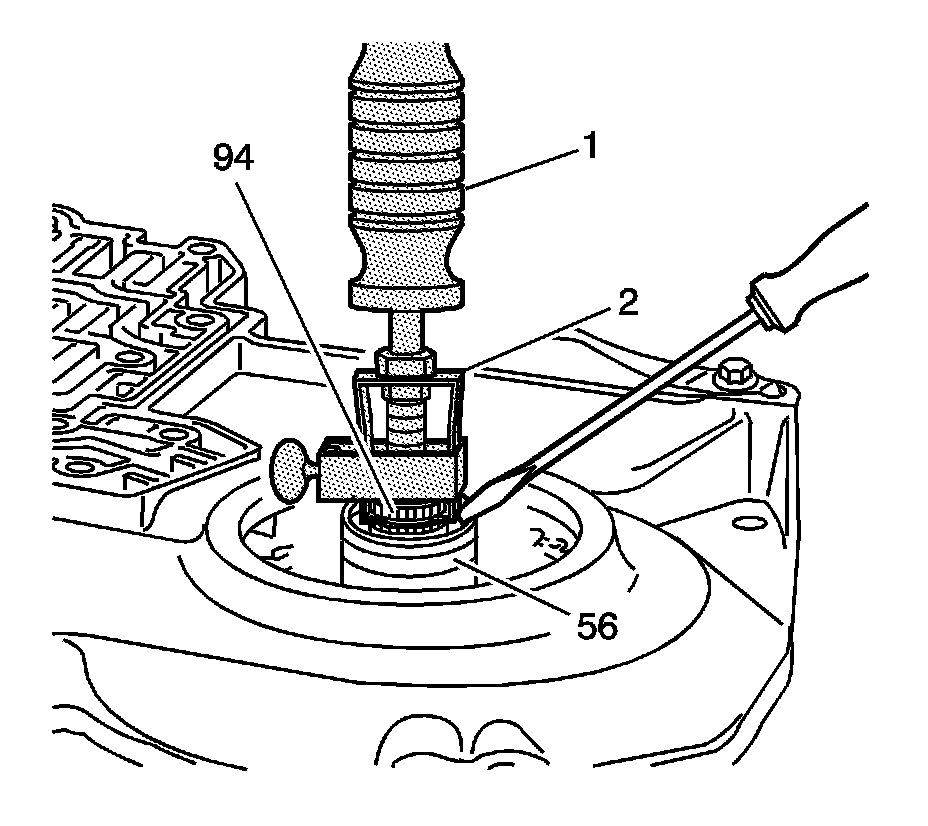

2. Install the J 6125-1B - slide hammer with adapter and J 38868 - remover and installer on the output shaft (94).
