Oil Pump Assembly Installation

Oil Pump Assembly Installation

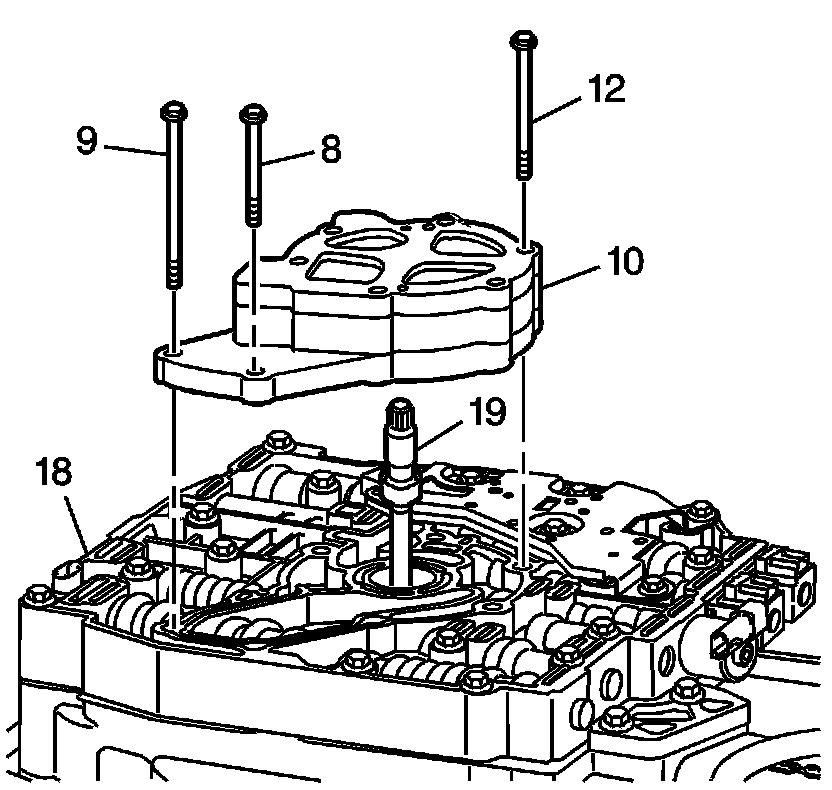

1. Install the oil pump shaft (19) into the oil pump assembly (10).
2. Install the oil pump assembly (10) and the oil pump shaft (19) onto the control valve body.





Caution: Refer to Fastener Caution (Fastener Caution).

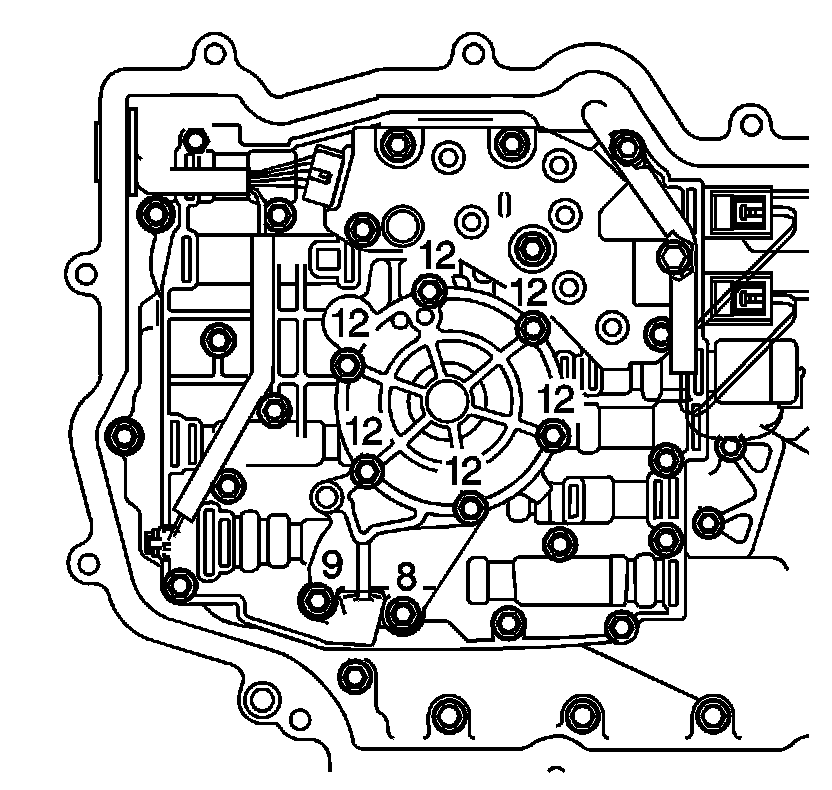

3. Install the eight oil pump bolts (8, 9, 12). Hand start the bolts. Tighten the bolts to 12 Nm (9 lb ft).
