Low/Reverse Band Installation




Low/Reverse Band Installation

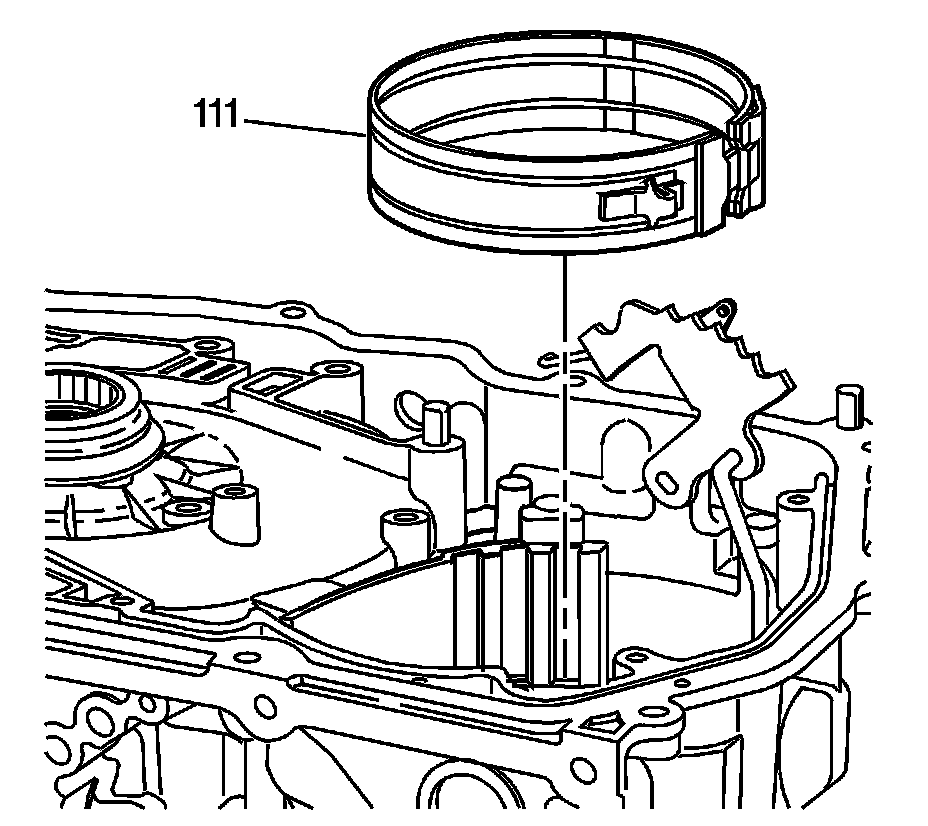

Install the low/reverse band (111) into the transmission case. Align the servo pin apply surface toward the bottom pan and hook the band into the band anchor pin inside the transmission case.
