Input Internal Gear, Forward Clutch Hub Install




Input Internal Gear, Forward Clutch Hub Install

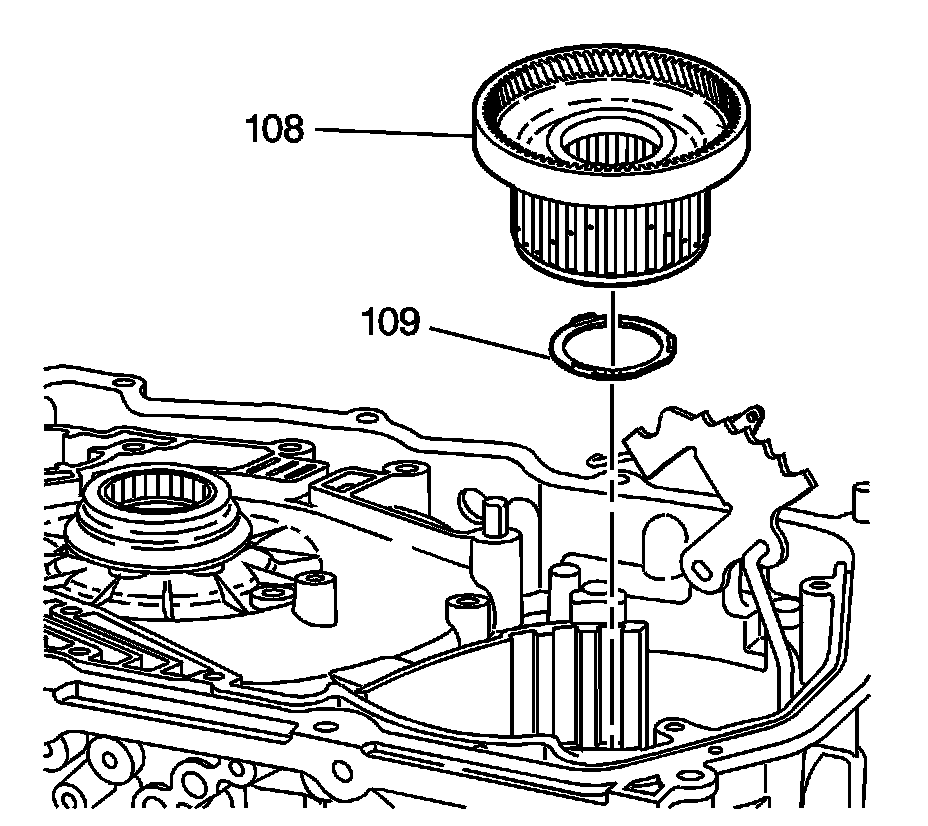

Note: Install the forward clutch hub and input internal gear assembly into the transmission case. Rotate the assembly while installing in order to spline the forward clutch hub (108) to the forward clutch plates (602).

Install the forward clutch hub and input internal gear assembly into the transmission case.
