Final Drive Assembly Removal

Final Drive Assembly Removal

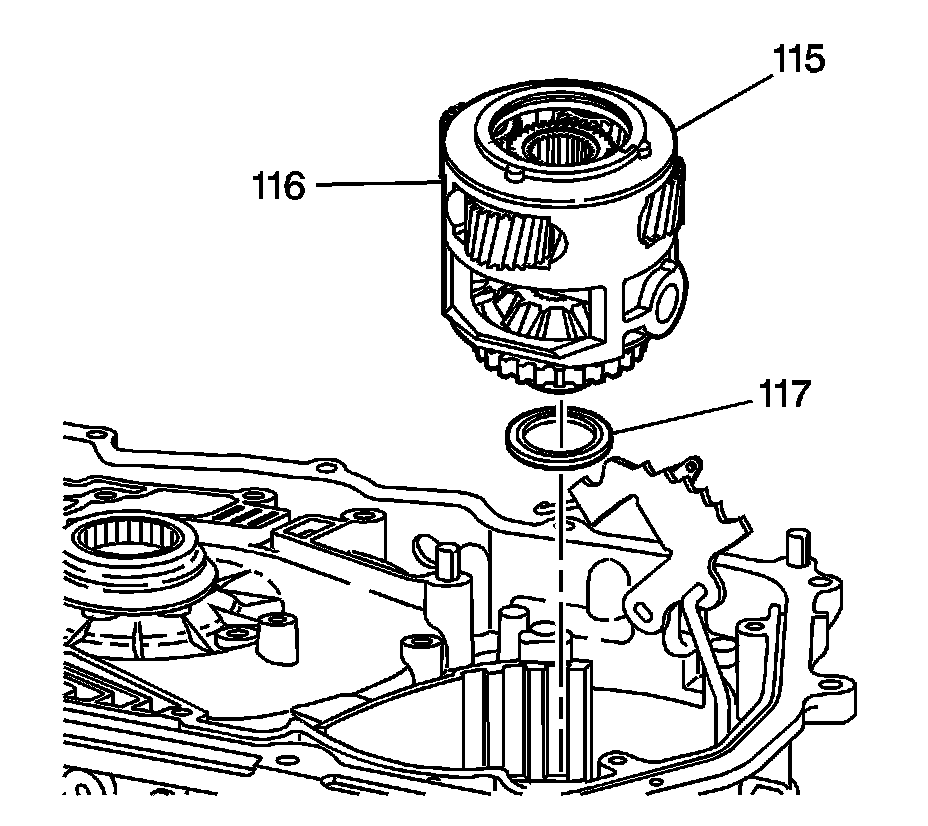

1. Remove the final drive assembly (116) and the final drive sun gear (115).
2. If the differential carrier to case thrust bearing (117) did not remain with the final drive assembly (116), remove the differential carrier to case thrust bearing (117).
