Driven Sprocket Support Assembly Removal

Driven Sprocket Support Assembly Removal

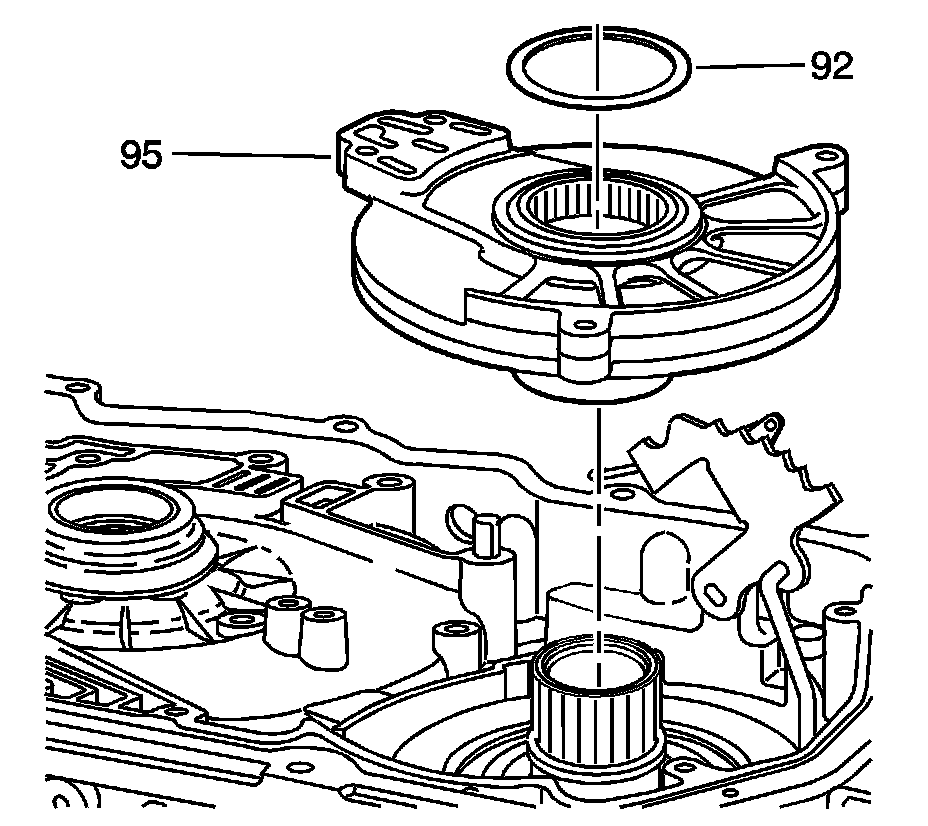

1. Remove the driven sprocket to driven sprocket support thrust washer (92).
2. Remove the driven sprocket support assembly (95).
