Driven Sprocket Support Assembly Installation




Driven Sprocket Support Assembly Installation

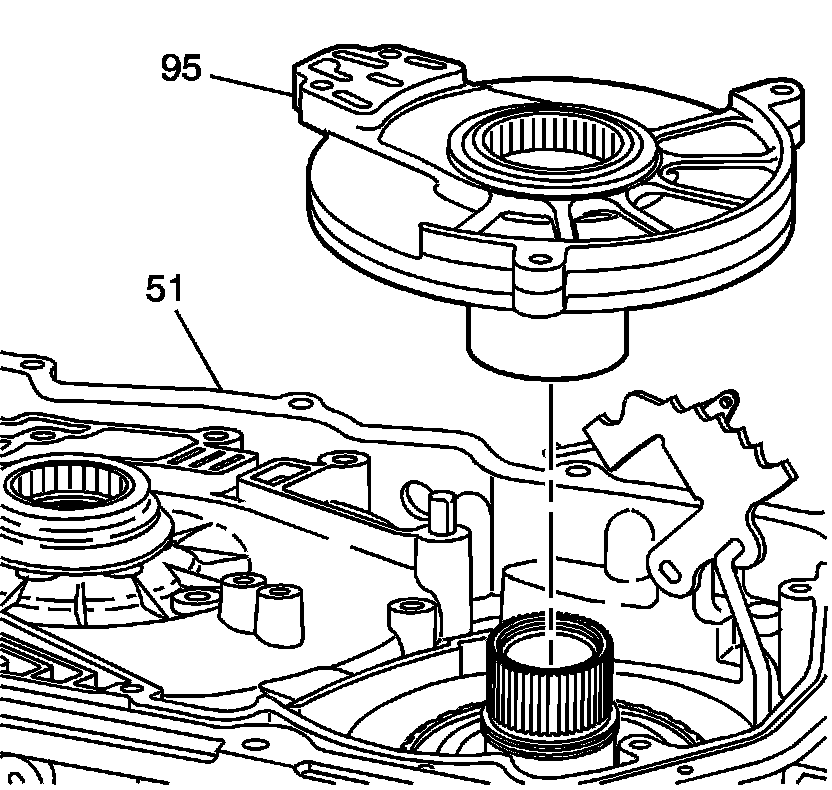

Install the driven sprocket support and 2nd clutch assembly (95) into the transaxle case (51). When installed properly, the driven sprocket support sits slightly below the machined surface of the transaxle case (51).
