Checkball Removal
Checkball Removal
Note: Do not use a magnet in order to remove the checkballs. The magnet may magnetize the checkballs, and the checkballs may attract metallic particles.

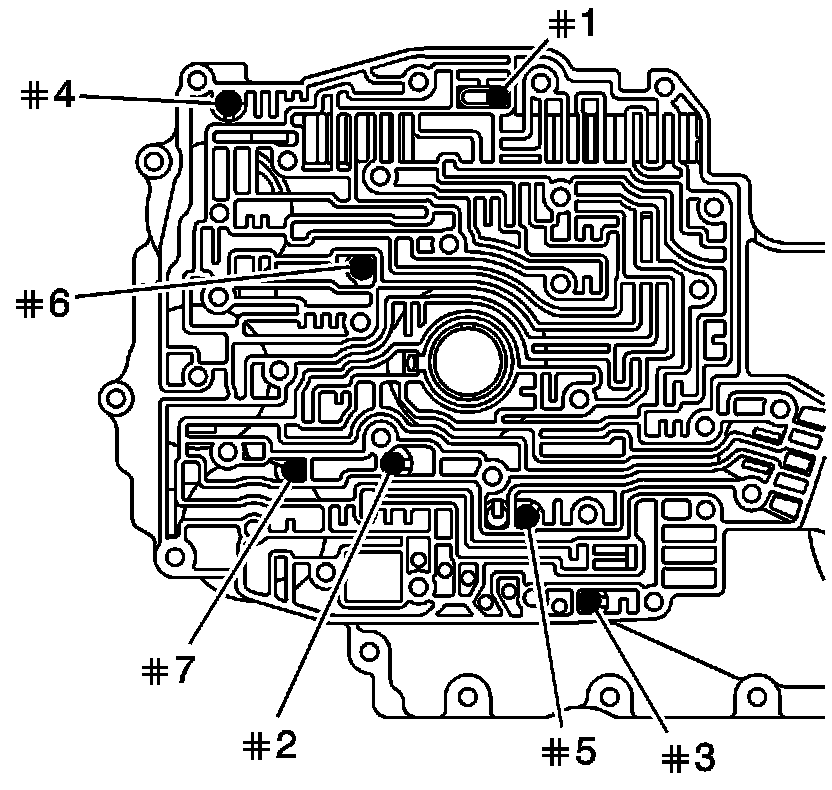

Remove the seven checkballs (1-7) in the channel plate.
Checkball Removal
Note: Do not use a magnet in order to remove the checkballs. The magnet may magnetize the checkballs, and the checkballs may attract metallic particles.
Remove the seven checkballs (1-7) in the channel plate.
