66. Oil Pan Installation

Oil Pan Installation




1. Ensure the oil pan and mounting surface on the lower crankcase are free of all oil and debris.
2. Apply a 3.5 mm bead of GM P/N 12378521 (Canadian P/N 88901148), or equivalent, around the perimeter of the oil pan and the oil suction port opening.

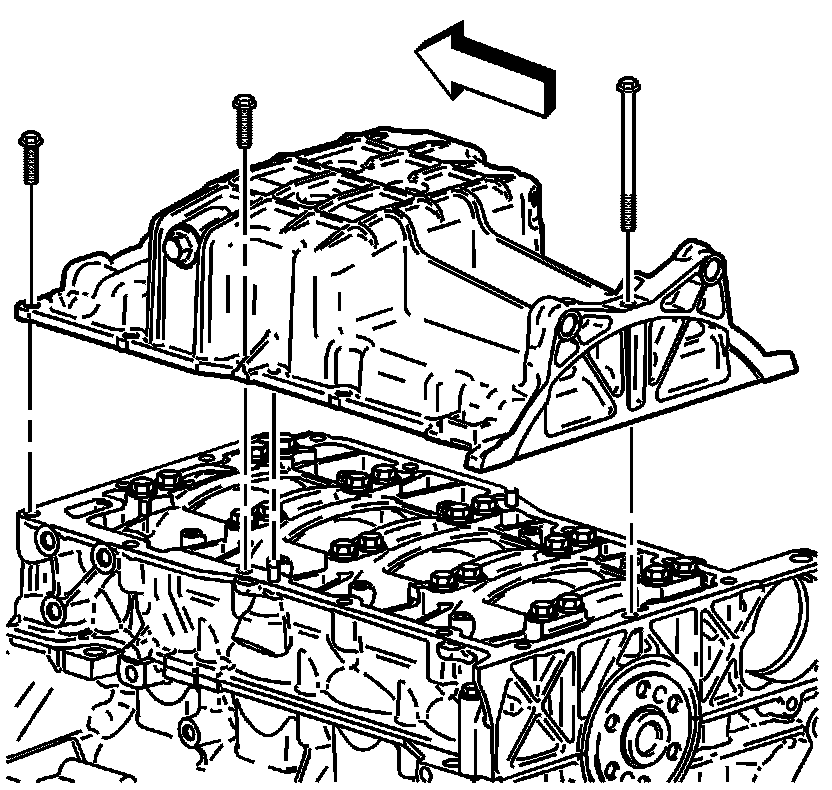

3. Install the oil pan.





Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the oil pan bolts.

Tighten the oil pan bolts in sequence to 25 Nm (18 lb ft).
