65. Engine Front Cover and Oil Pump Installation

Engine Front Cover and Oil Pump Installation




1. Install two new friction washers.

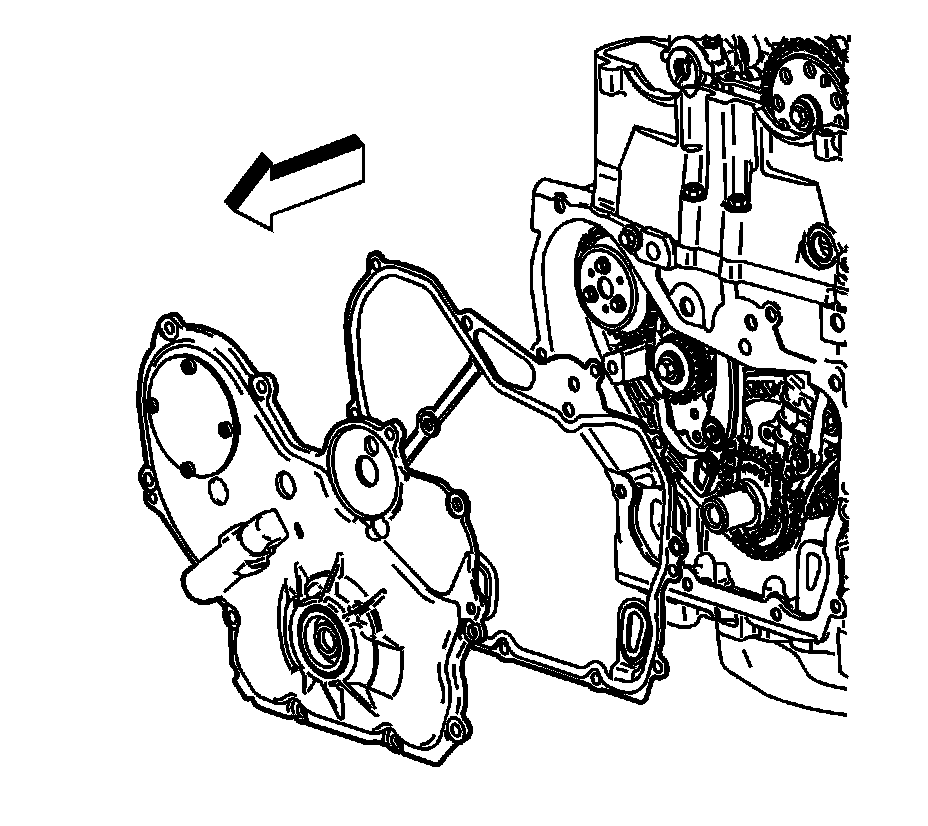

2. Install the engine front cover with a new gasket.





Caution: Refer to Fastener Caution (Fastener Caution).

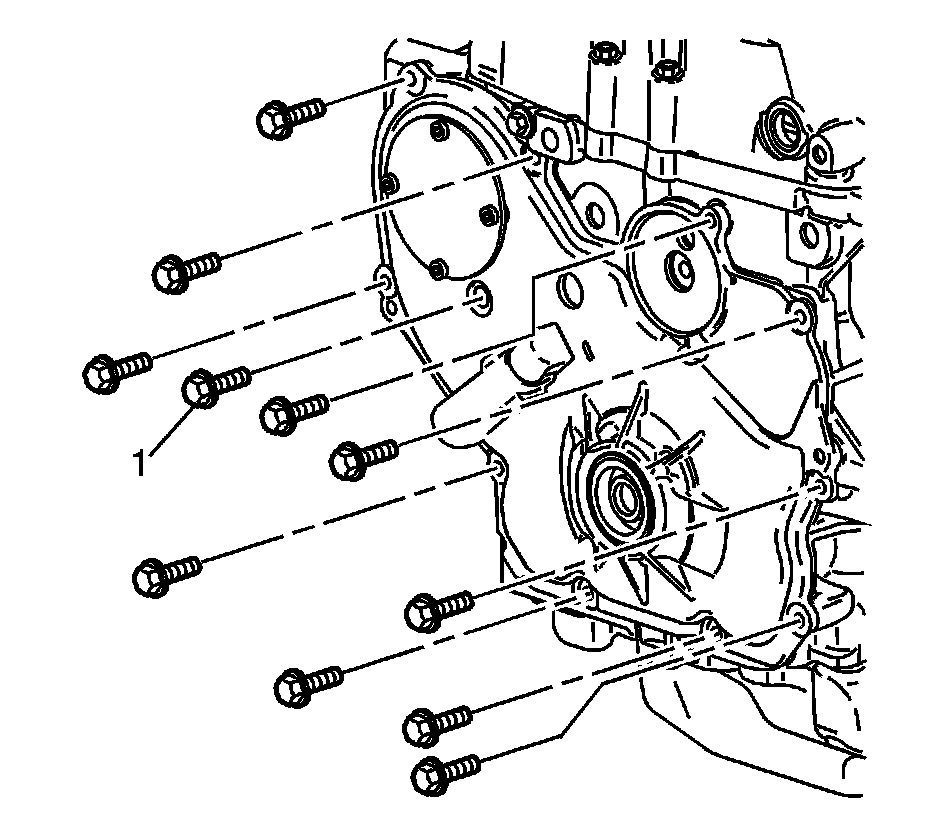

Note: The center bolt (1) should be tightened last.

3. Install the engine front cover bolts.

Tighten the engine front cover bolts to 25 Nm (18 lb ft).

4. Install the long water pump bolt.

Tighten the water pump bolt to 25 Nm (18 lb ft).




5. Install the accessory drive belt tensioner.
6. Install the accessory drive belt tensioner bolt.

Tighten the bolt to 45 Nm (33 lb ft).
