13. Engine Front Cover and Oil Pump Removal

Engine Front Cover and Oil Pump Removal

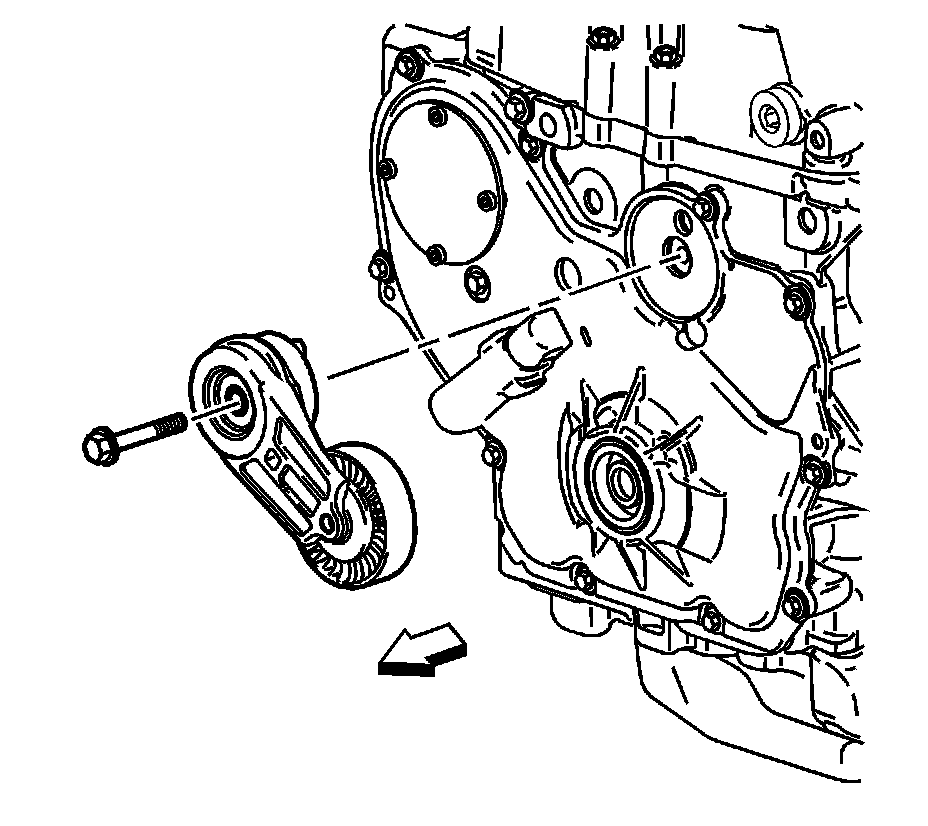

1. Remove the accessory drive belt tensioner bolt.
2. Remove the accessory drive belt tensioner.

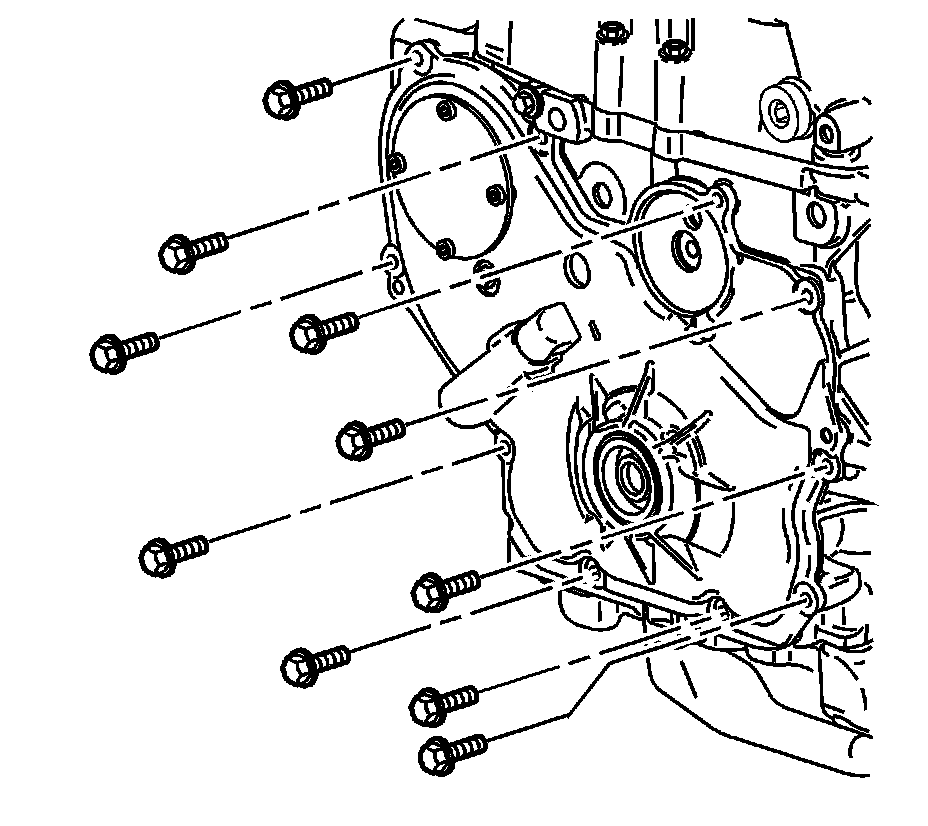

3. Remove the engine front cover bolts.

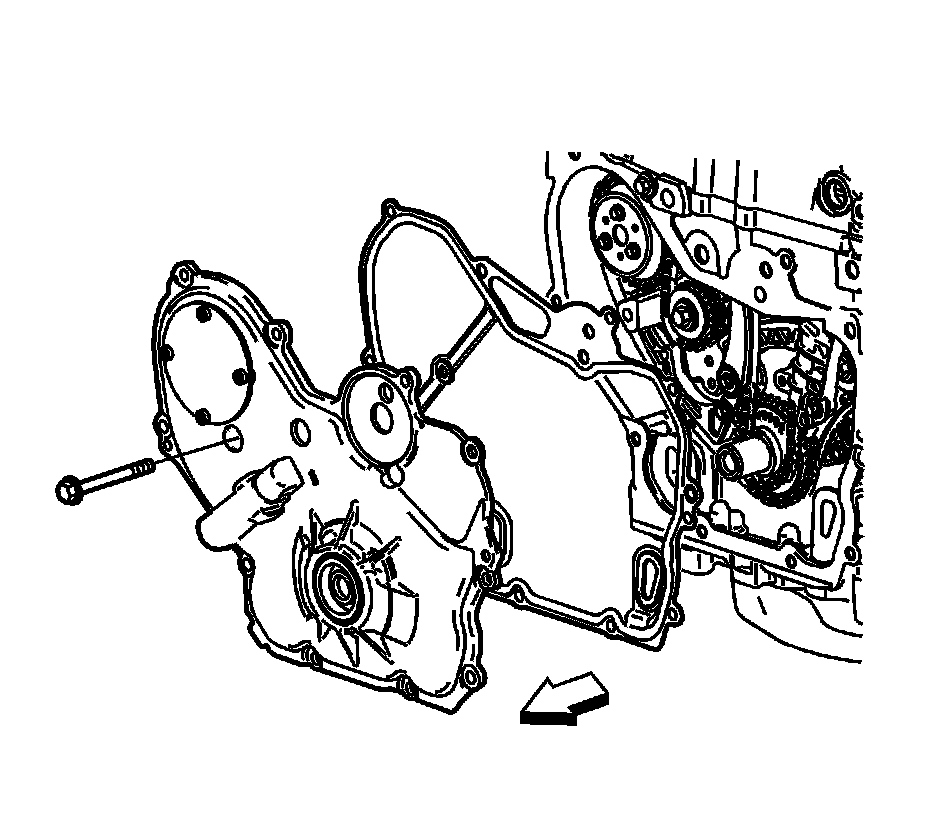

4. Remove the long water pump bolt.
5. Remove the engine front cover and gaskets.
6. Remove the crankshaft front cover oil seal with an appropriate tool.
