Air Bypass Valve Solenoid, Turbocharger

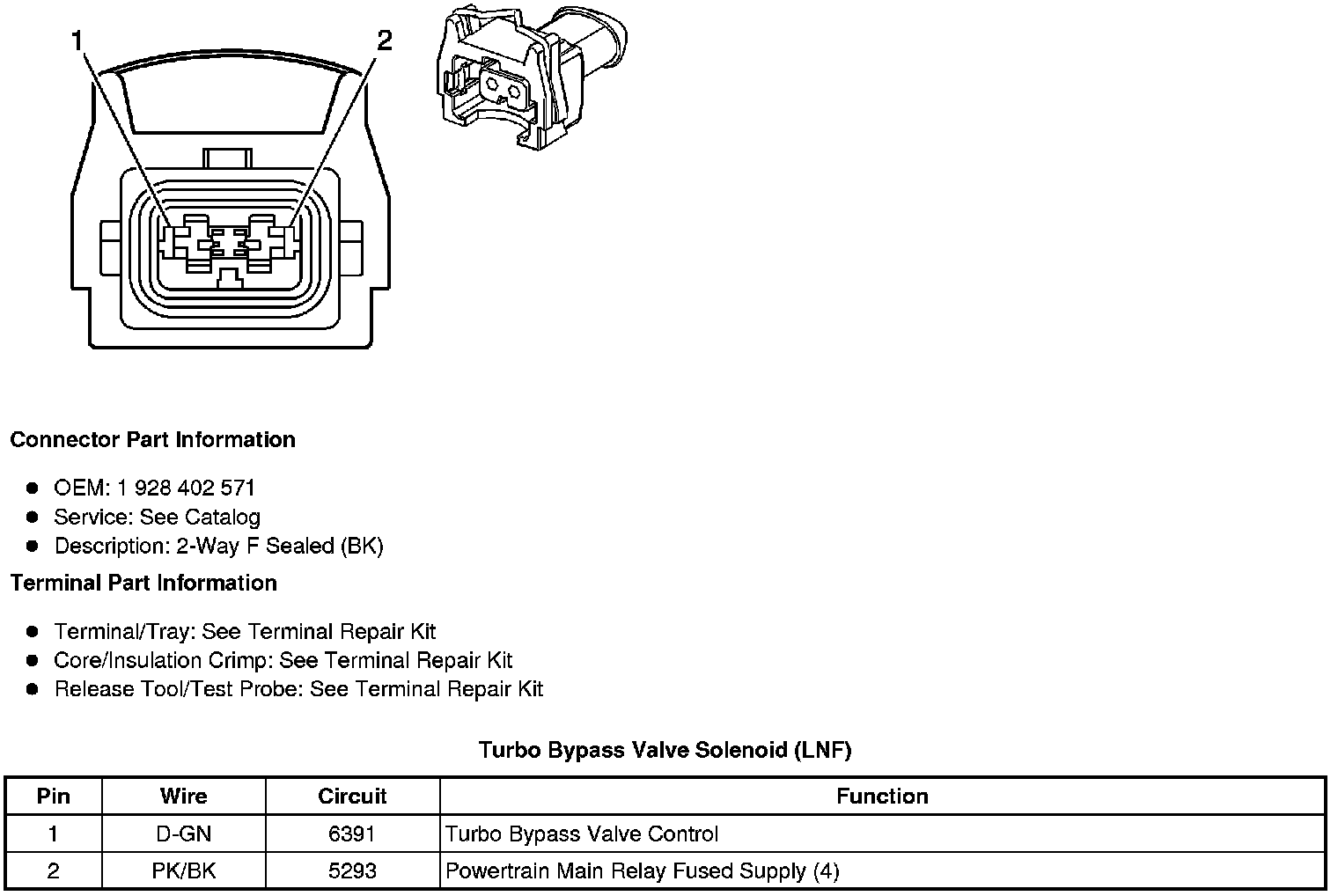

Component Connector End Views

Turbo Bypass Valve Solenoid (LNF)
