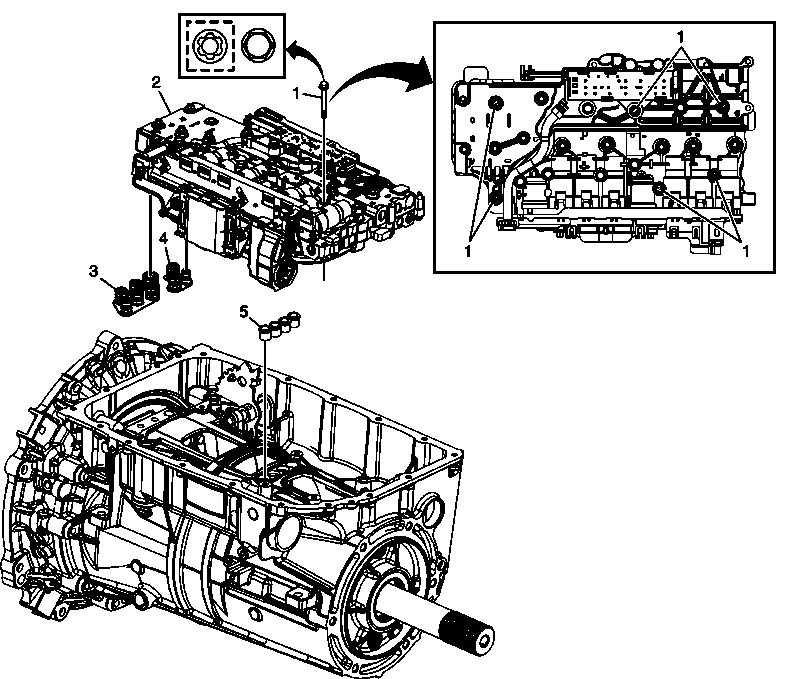

Control Valve Body Assembly Removal
| Callout | Component Name |
|---|---|
| 1 | Bolt M5 x 73 (Qty: 6) Tip: Do not remove all the bolts in the control valve body assembly. Remove only the bolts indicated. Special Tool: DT-48285: Valve Body Torx Plus Socket (if applicable) For equivalent regional tools, refer to Special Tools . |
| 2 | Control Valve Body Assembly
CAUTION:
Use care when handling the control valve body assembly. If dropped, damage to the control solenoid valve body assembly internal components, including the transmission control module (TCM), may result.
|
| 3 | Fluid Pump Seal Assembly
CAUTION:
Refer to Seal Reuse Caution
.
|
| 4 | Fluid Pump Seal Assembly
CAUTION:
Refer to Seal Reuse Caution
.
|
| 5 | Center Support Fluid Passage Seal Assembly
CAUTION:
Refer to Seal Reuse Caution
.
|
