Case Extension Assembly Installation

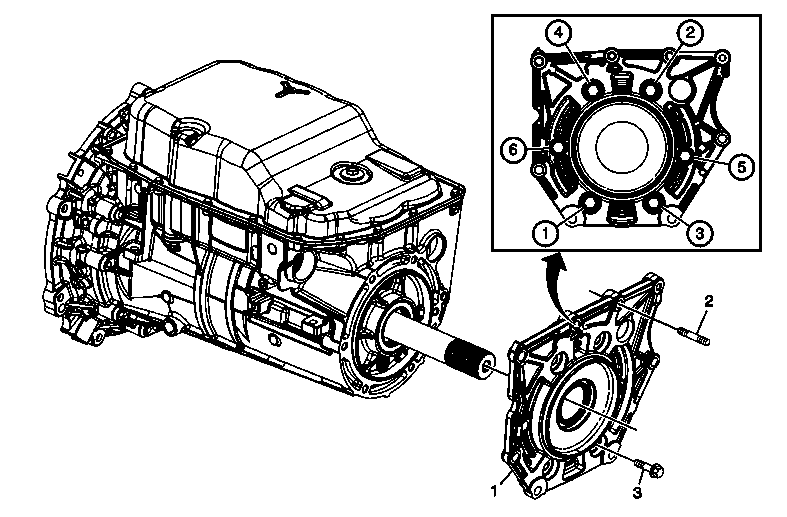

Fig 1: View Of Case Extension Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Case Extension
2	Case Extension Stud (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 15 N.m (11 lb ft)
3	Bolt M10 x 40 (Qty: 6) Procedure: Tighten in the sequence shown. Tighten: 55 N.m (41 lb ft)
