Automatic Transmission Controls Schematics

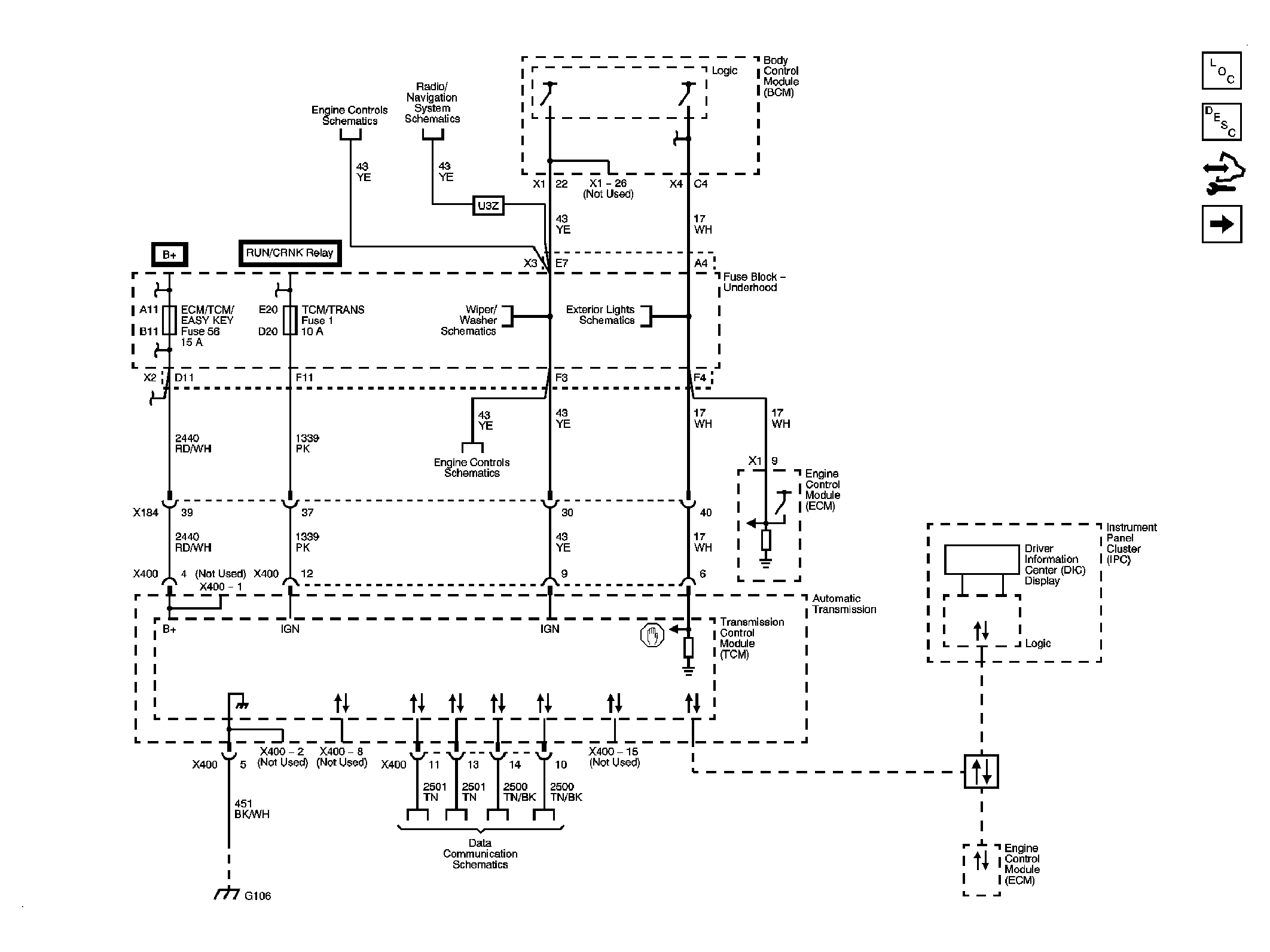

Fig 1: Power, Ground, Serial Data & Stop Lamp Switch Signal Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

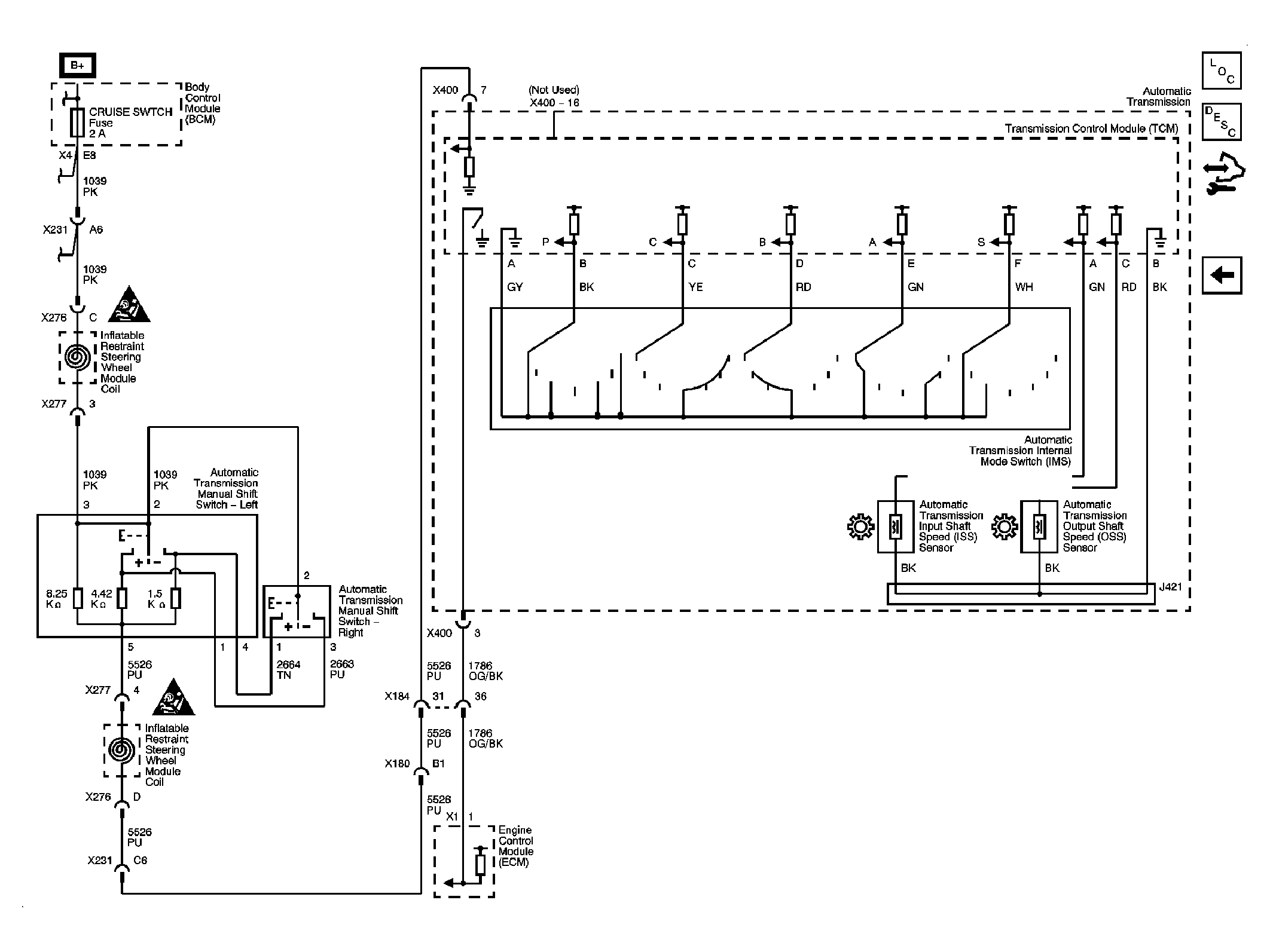

Fig 2: Input/Output Speed Sensors (ISS/OSS), Internal Mode Switch (IMS) & TAP Shift Switches Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
