Electronic Suspension Control Schematics

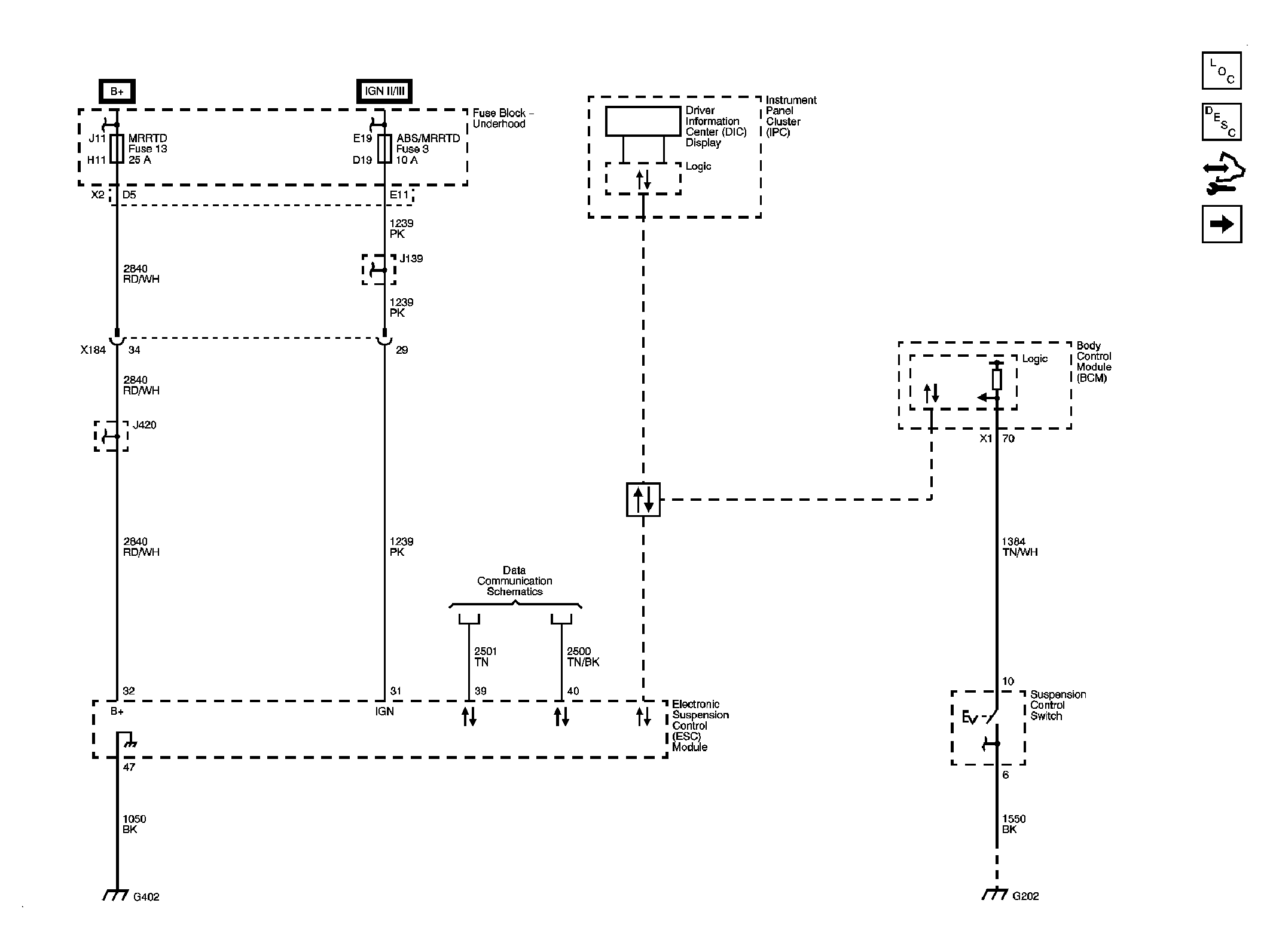

Fig 1: Power, Ground, Suspension Control Switch & Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

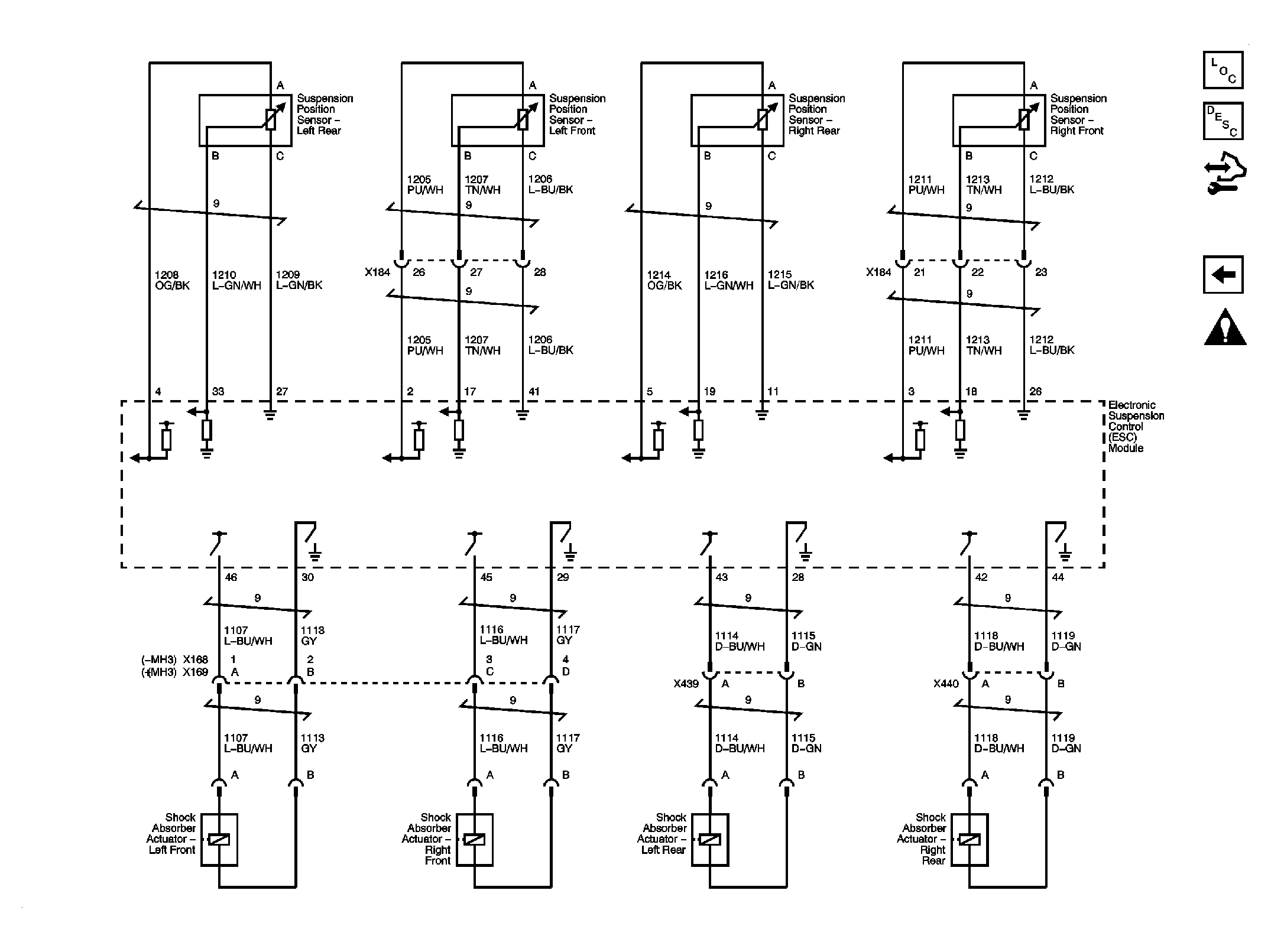

Fig 2: Dampers & Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
